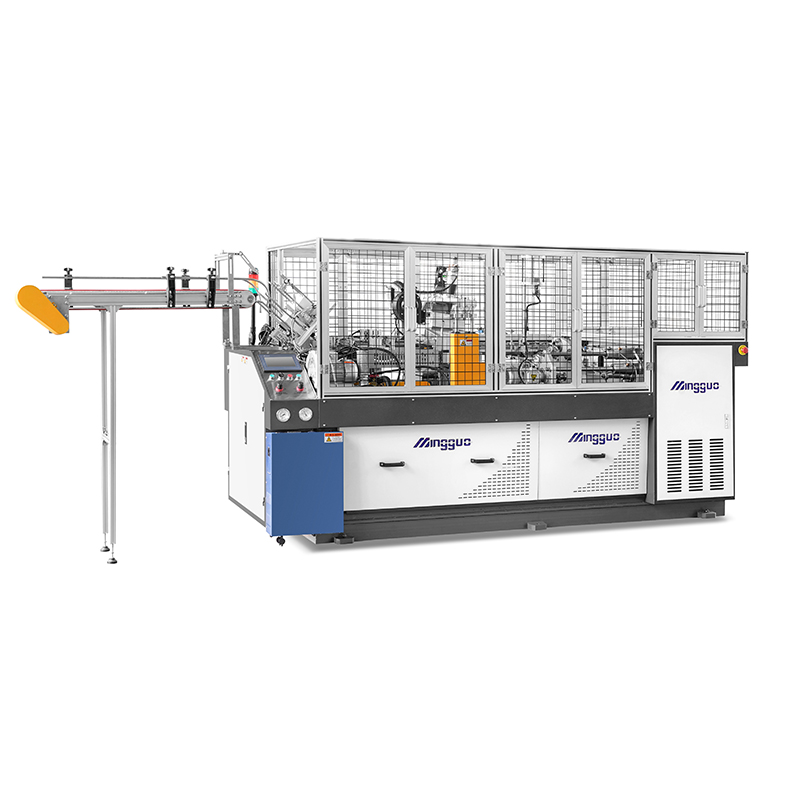

MG-J600 Ice Tube (Calippo) Forming Machine

Name: MG-J600 Ice Tube (Calippo) Forming Machine
Brand: Mingguo
SKU: 00048
Rating: 4.1 (74 reviews)

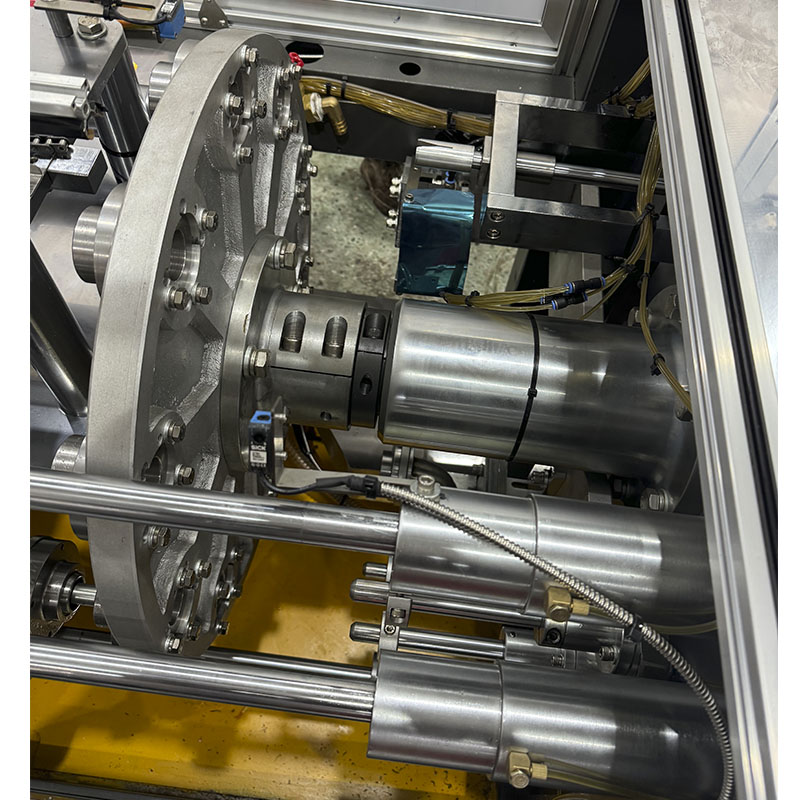

MG-J600 Ice Tube (Calippo) Forming Machine is a forming machine developed for ice cream paper tubes commonly found in the market. The machine adopts an innovative vertical turntable, which will not send the cup body falling during operation, saving working space; a new type of curling unit ensures the quality of the finished curling; each part is equipped with optical eye detection, which is convenient for machine maintenance and repair; The special bottom embossing unit and bottom cutting unit ensure the bottom sealing of the Ice tube. It is the first new type of ice tube forming machine in China.

Specifications:

Speed: 60-80pcs/min

Tube Size: 42φ-55φ , 120mm-200mm

Inquire Now

Video

MG-J600 Ice Tube (Calippo) Forming Machine has flexible production capacity and can meet the diverse needs of different industries for paper tube specifications, lengths, diameters, etc., providing convenience for customer customization.

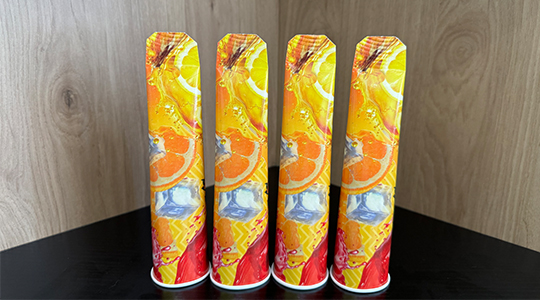

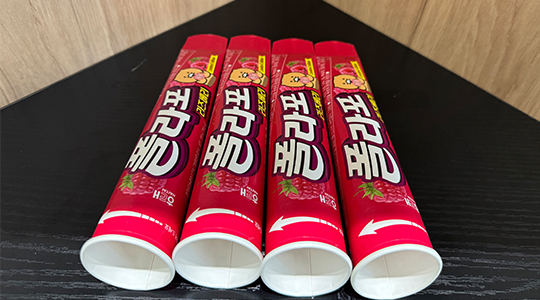

MG-J600 Ice Tube (Calippo) Forming Machine has a wide range of applications in the food processing industry, and is especially suitable for the production of frozen desserts such as ice cream and juice.

Main Parts

1. Speed: 60-80pcs/min

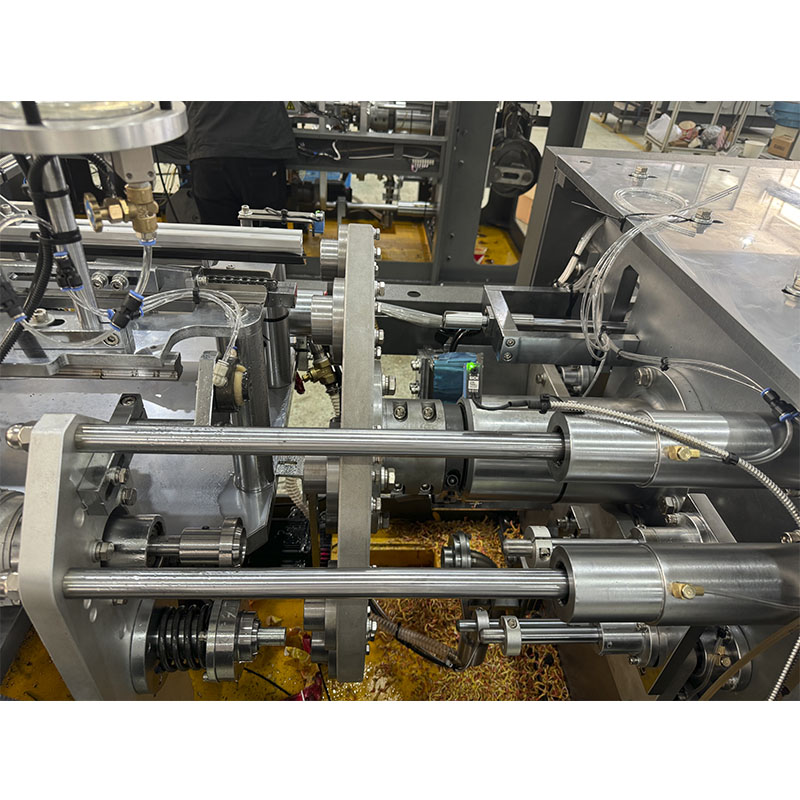

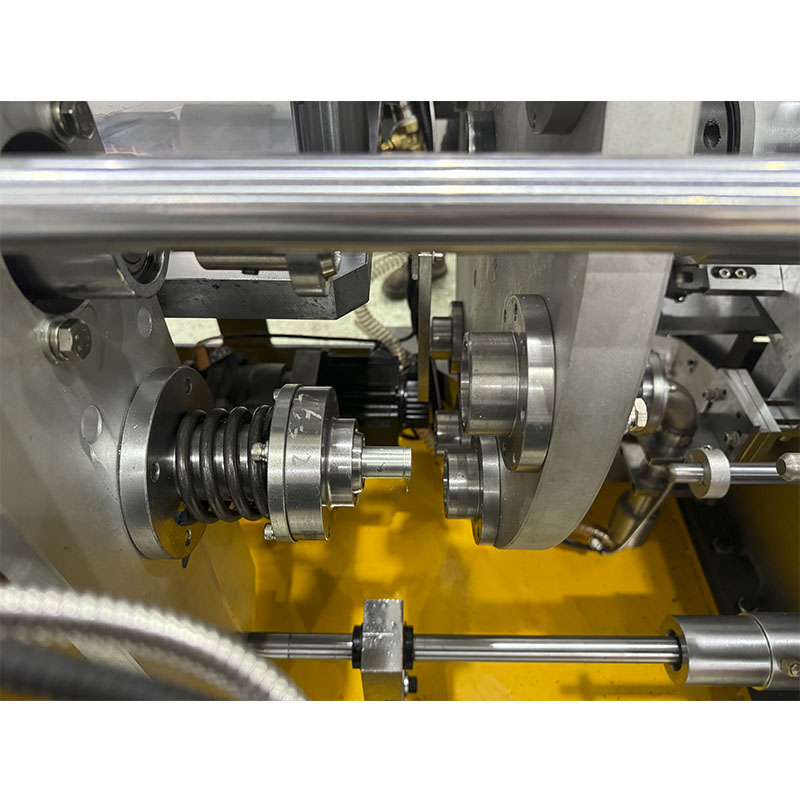

2. Straight-shaft transmission, simple and efficient structure, stable operation of the machine, low noise

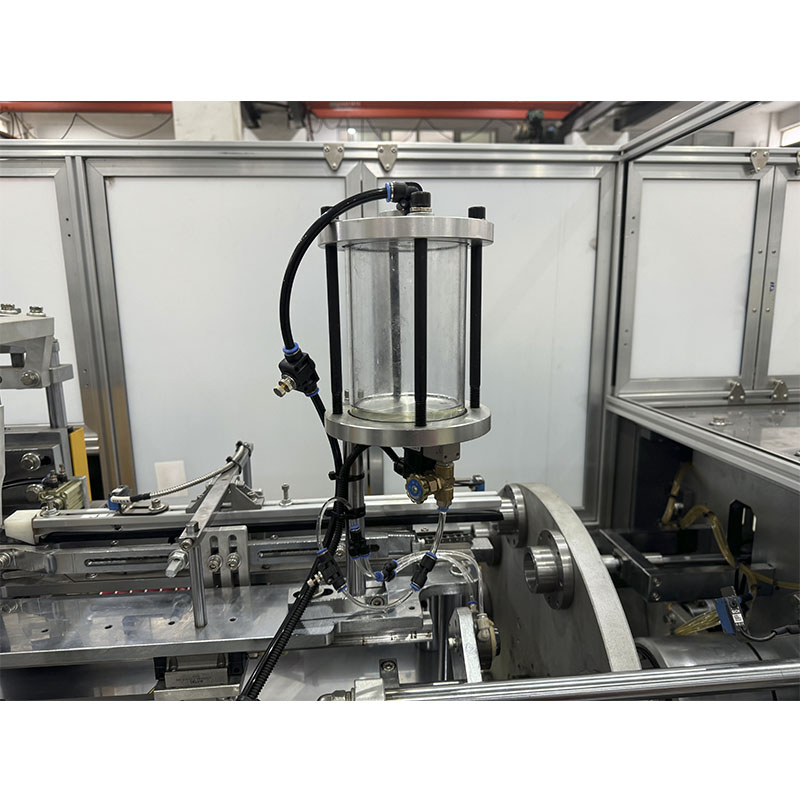

3. The whole machine uses automatic spray lubrication system, reducing the wear of machine parts, support the machine to work for a long time without interruption.

4. About 13 sensors on 1 machine to monitor the whole cup making process

5. The body of tube and the bottom of cup portion bonded by Swiss (Leister brand) heater, ensuring the stability of adhesion

6.Two times curling , first one is rotating curling , second one is heating stereotypes , which improves the forming strength of tube, tube mouth beauty and tube size stability.

7. PLC and touch screen control is used in tube forming, photoelectric eye is adopted in the entire failure control process.

8. Innovative long tube tyoe cup collection, optical eye counting, convenient for operators to pack.

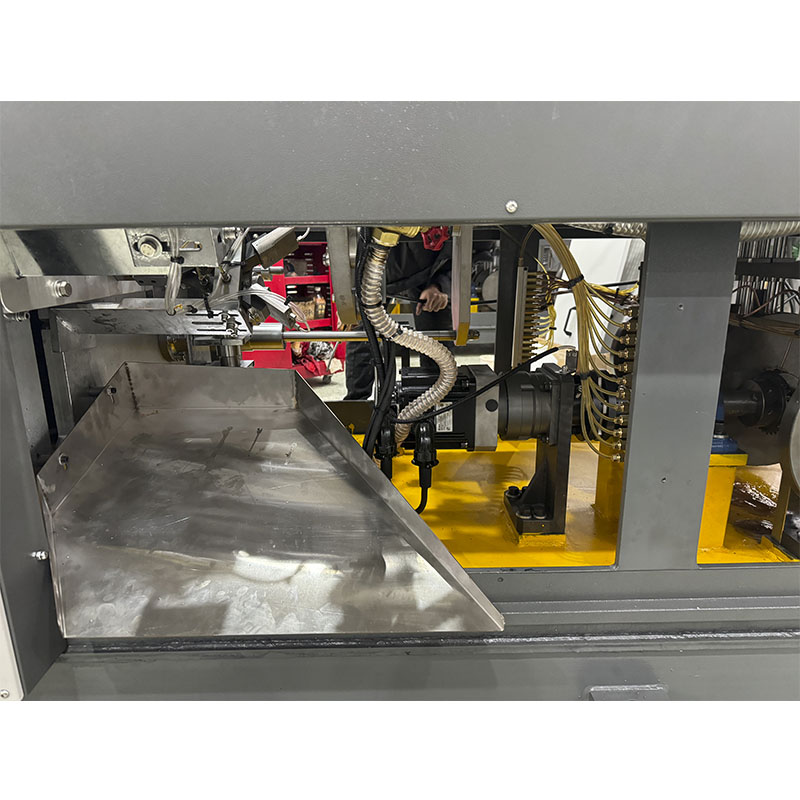

9. Bottom waste collection device, easy to recycle waste, save production cost

Product Specifications

Tube Size	42φ-55φ , 120mm-200mm
Paper Specification	150-250 GSM single/double PE coated paper
Production Capacity	60-80pcs/min
Power Source	380V 50HZ 3Phases
Average Power	10KW
Air Supply Requirement	Air pressure:0.45-0.6Mpa Air out-put:0.4cbm/min
Total Weight	2000KG
Package Size	Machine: 2800* 1500* 1700mm Collection table: 1300* 1000* 1700mm

Outstanding Advantages

MG-J600 Ice Tube (Calippo) Forming Machine

Maintenance & Warranty Guide

Maintenance

Maintenance of Calippo Tube Forming Machine should be carried out in strict compliance with the maintenance guidance.
1. Every component should be cleaned up carefully.
2. For sanitation and cleanliness, a fixed schedule should be maintained to clean and wipe the machine. Greasy dirt should be removed from the paper, die and roller. The machine must be kept from paper scraps, dust, plastic rolling, etc.
3. Glycerol can be used to lubricate the entire machine.

Warranty

1. We offer a one-year warranty for the Calippo Tube Forming Machine from the shipment date.
2. The warranty does not cover normally worn components.
3. We will not be responsible for any damage caused by misuse, improper handling, negligent maintenance, intentional injury or other damages.

Package & After-sale Service

Package

All Automatic Calippo Ice Lolly Making Packing Machine are packaged by wooden case.

After-sale Service

1. A user guide is included to assist with the machine installation and adjustment and help solve problems that may be encountered.
2. The Automatic Calippo Ice Making Packing Machine will be adjusted one week prior to delivery to make sure it is in perfect condition.
3. Technicians are available to guide the installation and adjustment on site. This service would be at the buyer's expense, which includes the technician's salary ($100 USD/day), traveling expense, accommodation, consulting fee, etc.
4. Free training is available and ongoing until the operator fully understands the operation and maintenance of our Tube (Calippo) Forming Machine. The buyer should cover traveling and accommodation expenses of our technicians.
5. Our company provides wearing parts at no charge for one year.

Warranty Service:

Providing Peace of Mind with a One-Year Warranty

Mingguo stand behind the quality and reliability of our paper cup machines by offering a one-year warranty. This warranty covers the entire machine, giving customers peace of mind and safeguarding their investment. In the unlikely event of any machine malfunctions within the warranty period, our dedicated support team will promptly address the issue and provide necessary repairs or replacements.
