MG-DTF Cup Top Flatten Machine

Name: MG-DTF Cup Top Flatten Machine
Brand: Mingguo
SKU: 00010
Rating: 4.1 (55 reviews)

Specifications:

Max diameter 120mm

80-100 pcs/min

220V/380V 50HZ 3Phases

3.5KW

Inquire Now

Product Applications

We produce classic paper cups for food service, and the Cup Top Flatten Machine can produce this type of cup in a variety of grammages and sizes. We can produce paper cups with one-sided PE lamination and double-sided PE lamination.

*Finished products can be customized

Main Parts

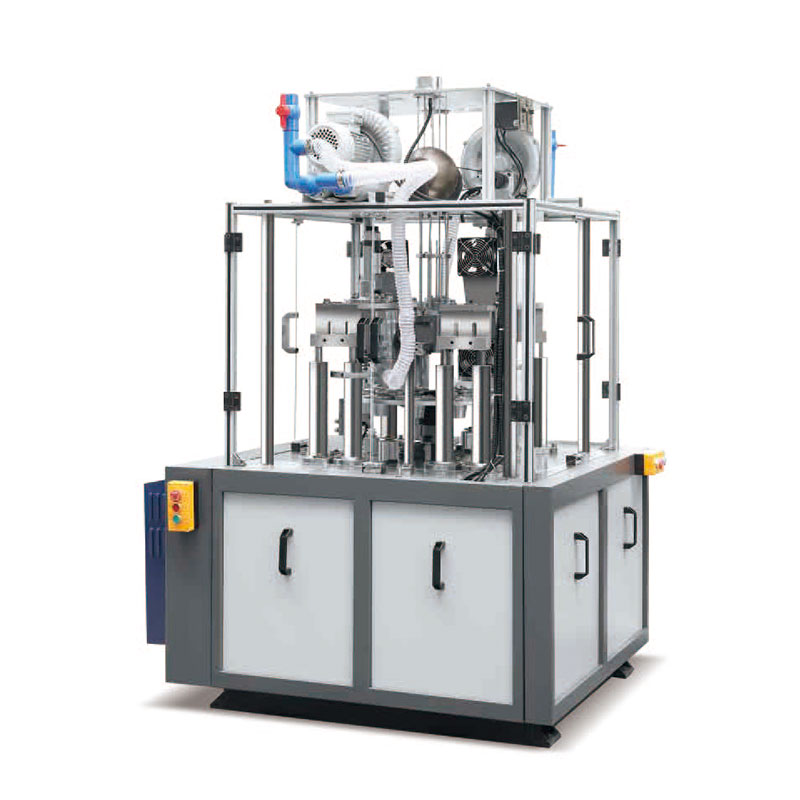

MG-DTF Cup Top Flatten Machine is a new model developed by our company. This automatic Cup Top Flatten Machine uses an ultrasonic device to extrude the formed paper cup roll mouth into a straight plane.

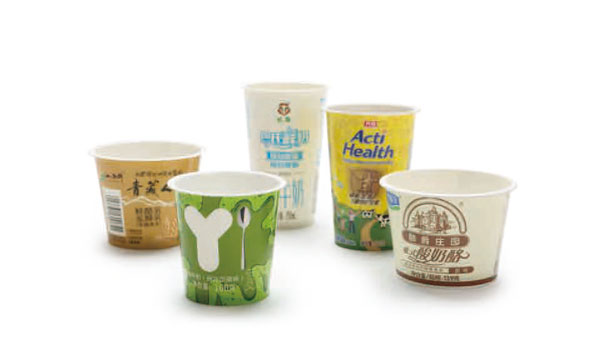

Facilitate the paste of aluminum foil paper cover, such as yogurt cup, enhance its sealing and insurance function. This cup top flatten machine fills the blank of making yogurt cups in the packaging industry at home and abroad.

Product Specifications

TECHNICAL SPECIFICATION

Model	MG-DTF
Paper Cup Specification	Max diameter 120mm
Production Capacity	80-100 pcs/min
Voltage	220V/380V 50HZ 3Phases
Average Power	3.5KW
Air Supply Requirement	Air pressure:0.3Mpa Air out-put:0.2cbm/min
Total Weight	650KG
Dimensions	1370x1250x1800mm

Outstanding Advantages

One outstanding of this forming machine lies in an automatic lubrication system. It provides a guarantee that all machine parts work at optimum efficiency for a long time.

In comparison to cup makers from other companies, this paper cup forming machine is designed with an automatic curling system. It ensures a simply easy operation.

The medium speed paper converting maker is equipped with a vacuum generator, which compared to cylinder provides much more stable air. Not only that, the generator also saves plenty of space for the machine.

The advanced heating technique contributes zero leakage of drink cups produced by this machine.

Maintenance & Warranty Guide

Maintenance

Maintenance of MG-DTF Cup Top Flatten Machine should be carried out in strict compliance with the maintenance guidance.
1. Every component should be cleaned up carefully.
2. For sanitation and cleanliness, a fixed schedule should be maintained to clean and wipe the machine. Greasy dirt should be removed from the paper, die and roller. The machine must be kept from paper scraps, dust, plastic rolling, etc.
3. Glycerol can be used to lubricate the entire machine.

Warranty

1. We offer a one-year warranty for the MG-DTF Cup Top Flatten Machine from the shipment date.
2. The warranty does not cover normally worn components.
3. We will not be responsible for any damage caused by misuse, improper handling, negligent maintenance, intentional injury or other damages.

Package & After-sale Service

Package

All cup top flatten machines are packaged by wooden case.

After-sale Service

1. A user guide is included to assist with the machine installation and adjustment and help solve problems that may be encountered.
2. The MG-DTF Cup Top Flatten Machine will be adjusted one week prior to delivery to make sure it is in perfect condition.
3. Technicians are available to guide the installation and adjustment on site. This service would be at the buyer's expense, which includes the technician's salary ($100 USD/day), traveling expense, accommodation, consulting fee, etc.
4. Free training is available and ongoing until the operator fully understands the operation and maintenance of our machine. The buyer should cover traveling and accommodation expenses of our technicians.
5. Our company provides wearing parts at no charge for one year.

Warranty Service:

Providing Peace of Mind with a One-Year Warranty

Mingguo stand behind the quality and reliability of our paper cup machines by offering a one-year warranty. This warranty covers the entire machine, giving customers peace of mind and safeguarding their investment. In the unlikely event of any machine malfunctions within the warranty period, our dedicated support team will promptly address the issue and provide necessary repairs or replacements.
