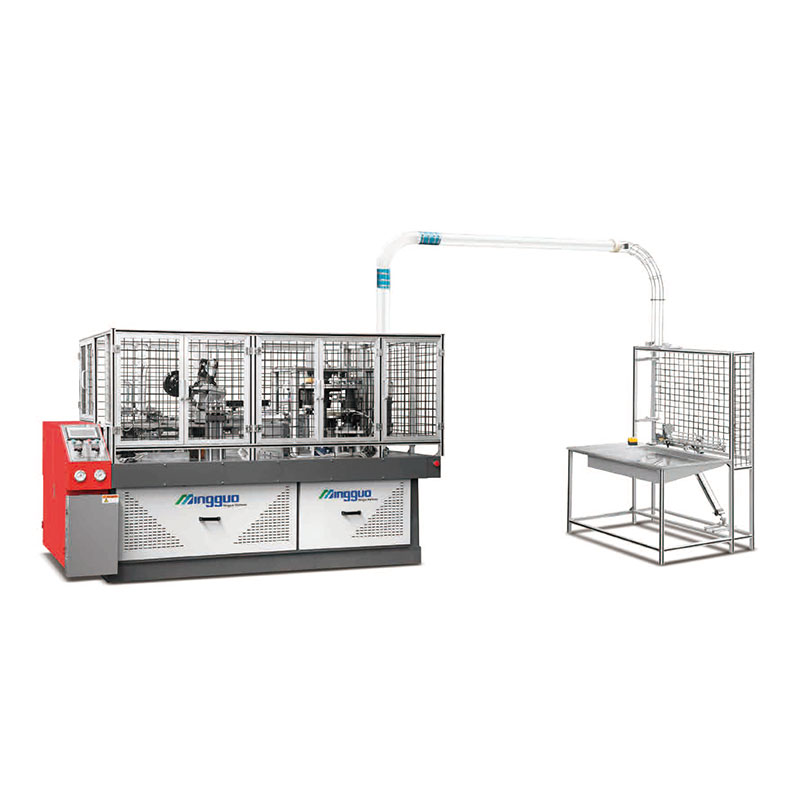

MG-HC800 Double Wall Paper Cup Sleeve Machine

Name: MG-HC800 Double Wall Paper Cup Sleeve Machine
Brand: Mingguo
SKU: 00014
Rating: 4.1 (57 reviews)

Specifications:

4-16oz (100-450ml) (mold exchangeable)

Top: 55-90mm

Height: 60-135mm

Bottom: 55-75mm

Inquire Now

Product Applications

Our paper cup sleeve machines are capable of manufacturing single and double PE coated beverage cups, ice cream cups, coffee cups, foam tea cups, etc. with automatic handle cutting and sealing.

*Finished products can be customized

Main Parts

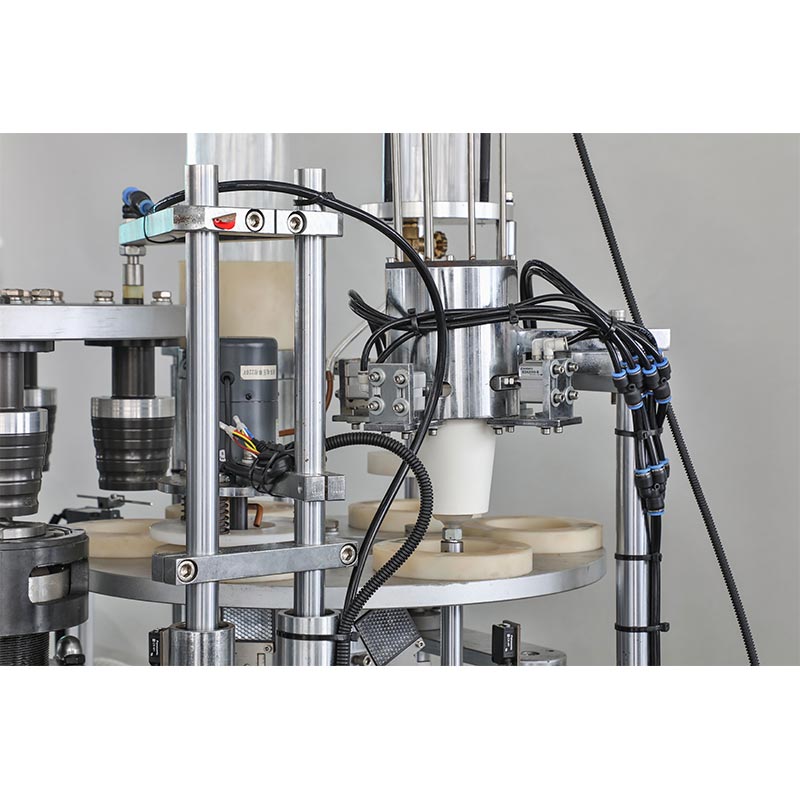

A high-speed paper cup sleeve machine ,which can be connected with the inner paper cup machine.The servo cup dropping device makes the double wall forming more stable and efficient.

The whole paper cup sleeve machine is controlled by PLC. And the automatic alarm stop, safety door make the operation much more easier .the application usually are double wall paper cups and corrugated paper cups.

Double wall cups is ideal cups for excellent heat insulation and ensures the comfort of the user while holding hot drinks.

Product Specifications

Model	MG-HC800
Paper Cup Specification	4-16oz
	(100-450ml) (mold exchangeable)
	Top: 55-90mm
	Height: 60-135mm
	Bottom: 55-75mm
Paper Specification	150-350 GSM single/double PE coated paper
Production Capacity	90-120 pcs/min
Voltage	220V/380V 50HZ 3Phases
Average Power	8KW
Air Supply Requirement	Air pressure:0.4 Mpa Air out-put:0.3cbm/min
Total Weight	2500KG
Dimensions	2600x1100x1800mm

Outstanding Advantages

This single PE coated paper cup forming machine is ultra-easy to clean and maintain due to a detachable enclosure.

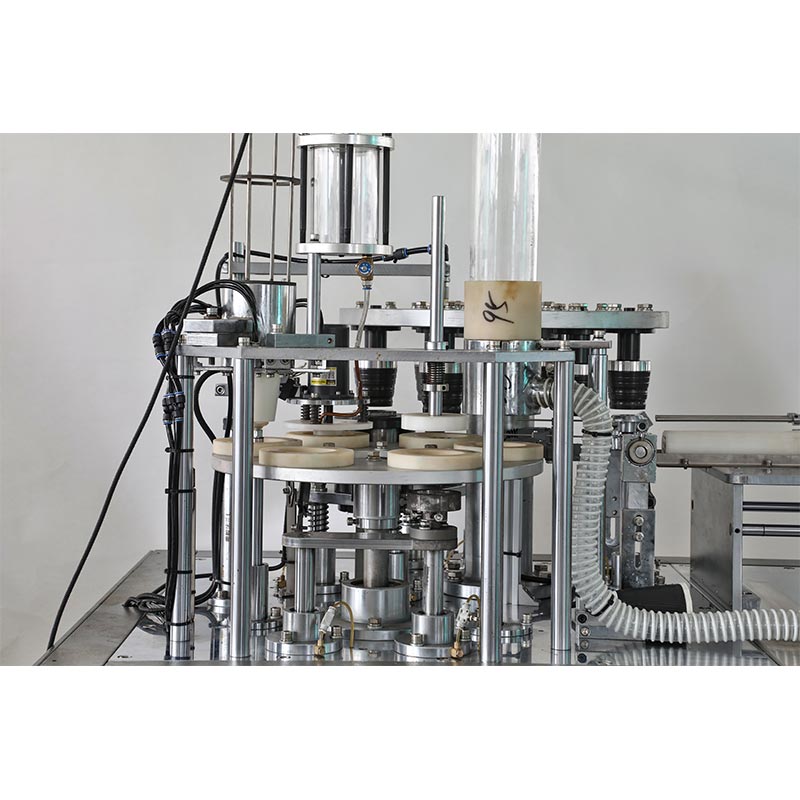

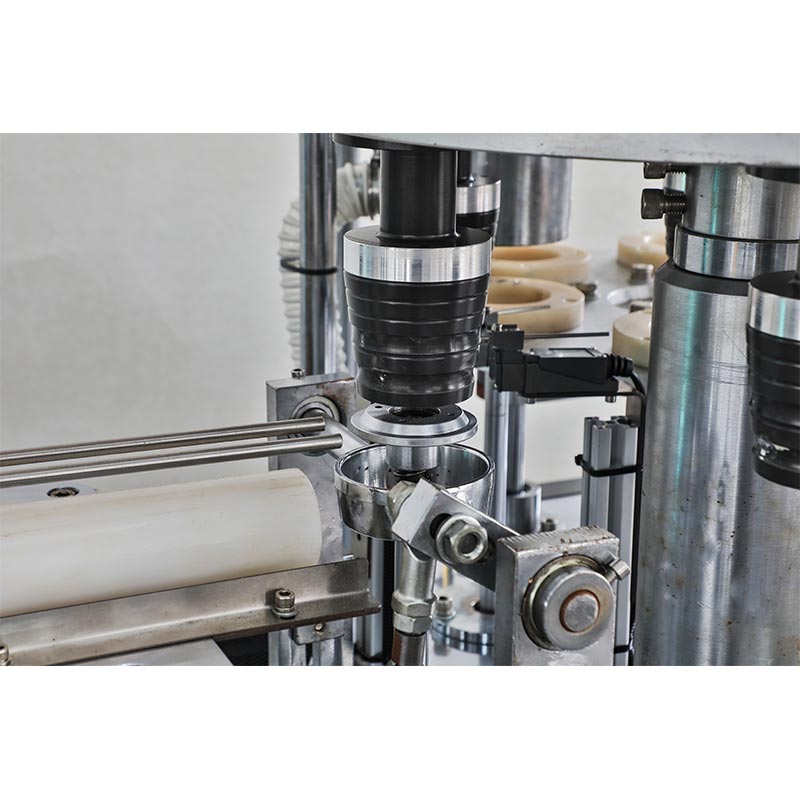

As for cup forming, a retractable knife is used for uniform bottom wrinkles, good sealing and low leakage.

The patented bottom rolling device provides 5 times embossing force of traditional rolling device. This device provides clear and uniform pattern and low leakage

In order for good quality, all molds are produced by modern CNC processing machines.

The alarming system adopts multi-position inspection and automatically gives an alarm when it tests cup bottom shortage or accumulation during the manufacture.

Three strong shafts and two high quality springs are used to achieve a stable operation.

A robot arm is installed for picking up dropped cups

Cheap gearbox and chain type

Maintenance & Warranty Guide

Maintenance

Maintenance of MG-HC800 paper cup sleeve machine should be carried out in strict compliance with the maintenance guidance.
1. Every component should be cleaned up carefully.
2. For sanitation and cleanliness, a fixed schedule should be maintained to clean and wipe the paper cup sleeve machine. Greasy dirt should be removed from the paper, die and roller. The machine must be kept from paper scraps, dust, plastic rolling, etc.
3. Glycerol can be used to lubricate the entire machine.

Warranty

1. We offer a one-year warranty for the MG-HC800 paper cup sleeve machine from the shipment date.
2. The warranty does not cover normally worn components.
3. We will not be responsible for any damage caused by misuse, improper handling, negligent maintenance, intentional injury or other damages.

Package & After-sale Service

Package

All paper cup sleeve machines are packaged by wooden case.

After-sale Service

1. A user guide is included to assist with the machine installation and adjustment and help solve problems that may be encountered.
2. The MG-HC800 Paper Cup Sleeve Machine will be adjusted one week prior to delivery to make sure it is in perfect condition.
3. Technicians are available to guide the installation and adjustment on site. This service would be at the buyer's expense, which includes the technician's salary ($100 USD/day), traveling expense, accommodation, consulting fee, etc.
4. Free training is available and ongoing until the operator fully understands the operation and maintenance of our machine. The buyer should cover traveling and accommodation expenses of our technicians.
5. Our company provides wearing parts at no charge for one year.

Warranty Service:

Providing Peace of Mind with a One-Year Warranty

Mingguo stand behind the quality and reliability of our paper cup machines by offering a one-year warranty. This warranty covers the entire machine, giving customers peace of mind and safeguarding their investment. In the unlikely event of any machine malfunctions within the warranty period, our dedicated support team will promptly address the issue and provide necessary repairs or replacements.
