MG-650 Automatic Carton Thermoforming Machine

Name: MG-650 Automatic Carton Thermoforming Machine
Brand: Mingguo
SKU: 00002
Rating: 4.1 (51 reviews)

Specifications:

20-40pcs/min

Max. Paper Size 570*480mm

Min. Paper Size 200*100mm

Suitable Material 200-400g/m2 PE

Inquire Now

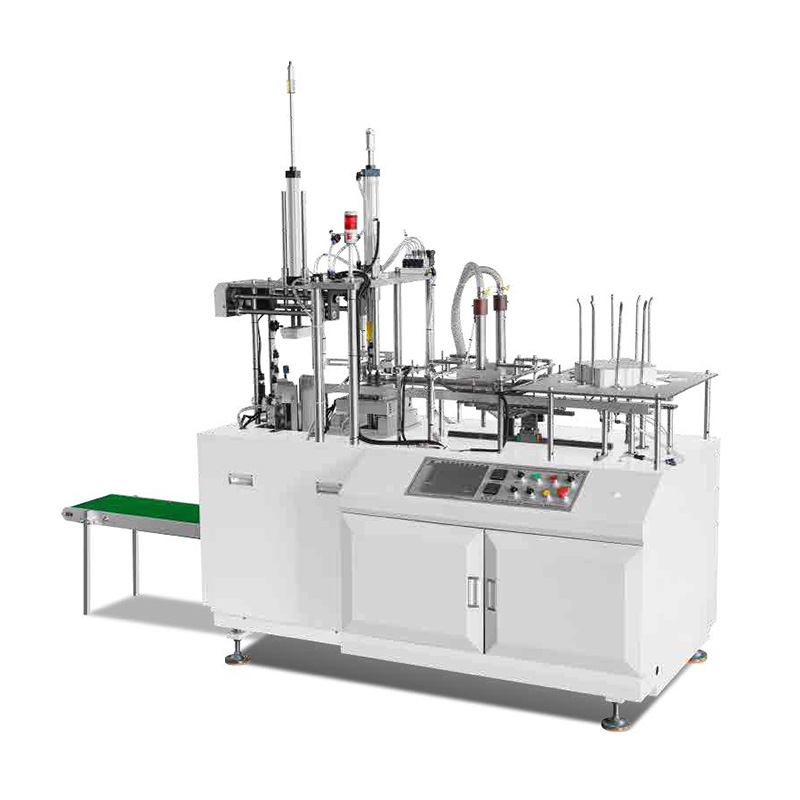

MG-650 Automatic Carton Thermoforming Machine

Product Applications

If you want，Ming Guo's machine also produces hamburger boxes.

*Finished products can be customized

Main Parts

Product Specifications

TECHNICAL SPECIFICATION

Model	MG-650
Production Capacity	20-40pcs/min
Production Capacity	(Actual production according to product size)
Max. Paper Size	570*480mm
Min. Paper Size	200*100mm
Voltage	380V 50HZ
Suitable Material	200-400g/m2 PE
Total Power	( PE Coated paper ) 200-400
Total Power	8KW
Total Weight	0.7T
Overall Dimension	155013501800 mm
Air Source	Air pressure 0.4-0.5Mpa
Air Source	(Need to buy compressor)

Maintenance & Warranty Guide

Maintenance

Maintenance of MG-650 Automatic Carton Thermoforming Machine should be carried out in strict compliance with the maintenance guidance.
1. Every component should be cleaned up carefully.
2. For sanitation and cleanliness, a fixed schedule should be maintained to clean and wipe the machine. Greasy dirt should be removed from the paper, die and roller. The machine must be kept from paper scraps, dust, plastic rolling, etc.
3. Glycerol can be used to lubricate the entire machine.

Warranty

1. We offer a one-year warranty for the MG-650 Automatic Carton Thermoforming Machine from the shipment date.
2. The warranty does not cover normally worn components.
3. We will not be responsible for any damage caused by misuse, improper handling, negligent maintenance, intentional injury or other damages.

Package & After-sale Service

Package

All machines are packaged by wooden case.

After-sale Service

1. A user guide is included to assist with the machine installation and adjustment and help solve problems that may be encountered.
2. The MG-650 Automatic Carton Thermoforming Machine will be adjusted one week prior to delivery to make sure it is in perfect condition.
3. Technicians are available to guide the installation and adjustment on site. This service would be at the buyer's expense, which includes the technician's salary ($100 USD/day), traveling expense, accommodation, consulting fee, etc.
4. Free training is available and ongoing until the operator fully understands the operation and maintenance of our machine. The buyer should cover traveling and accommodation expenses of our technicians.
5. Our company provides wearing parts at no charge for one year.

Warranty Service:

Providing Peace of Mind with a One-Year Warranty

Mingguo stand behind the quality and reliability of our paper cup machines by offering a one-year warranty. This warranty covers the entire machine, giving customers peace of mind and safeguarding their investment. In the unlikely event of any machine malfunctions within the warranty period, our dedicated support team will promptly address the issue and provide necessary repairs or replacements.
