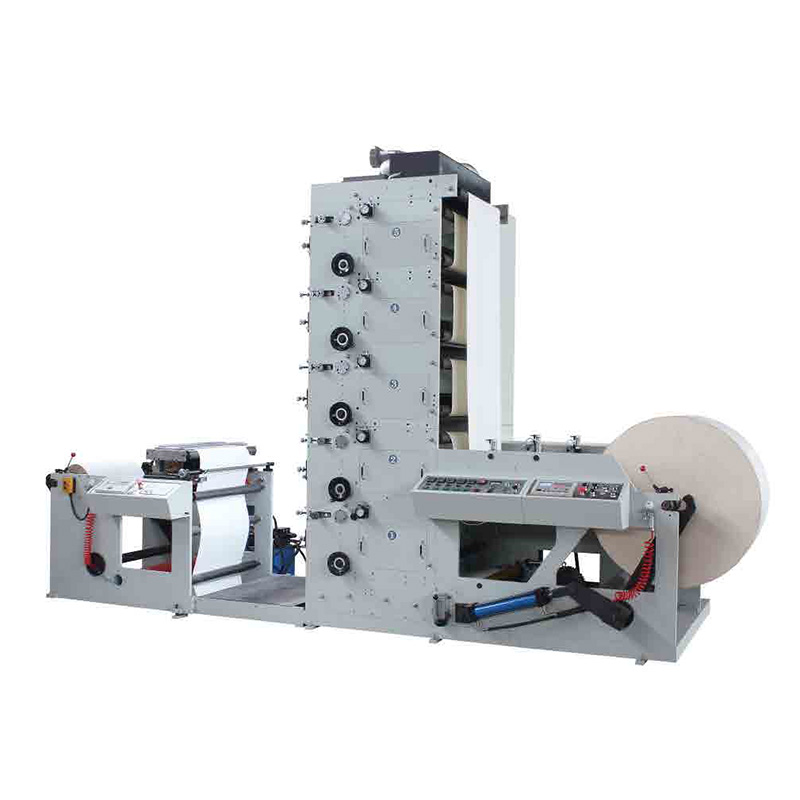

MG-C850-4/6 Flexo Printing Machine

Name: MG-C850-4/6 Flexo Printing Machine
Brand: Mingguo
SKU: 00004
Rating: 4.1 (52 reviews)

Specifications:

Production Capacity 0-80 m/min

Max Roll Paper Diameter 1200mm

Printing Repeat 250mm-580mm

Max Roll Paper Width 960mm

Printing Precision ±0.15mm

Inquire Now

Product Applications

We produce classic paper cups for food service, and we can produce this type of cup in a variety of grammages and sizes. We can produce paper cups with one-sided PE lamination and double-sided PE lamination.

*Finished products can be customized

Main Parts

Flexographic printing is a method of direct contact printing. A flexographic (flexo) printer consists of multiple wheels that work in unison to pick up ink from an ink reservoir, deliver the ink to a printing die or plate, and roll the ink onto the material being marked,the Printers are available in various sizes, from wide widths that can print material several feet wide to narrow widths that can be used alone or in groups. If several printers are used together, each one can be placed on or off line for runs of different size materials.

Product Specifications

TECHNICAL SPECIFICATION

Model	MG-C850-4/6
Production Capacity	0-80 m/min
Max Roll Paper Diameter	1200mm
Printing Repeat	250mm-580mm
Max Roll Paper Width	960mm
Printing Precision	±0.15mm
Printing Plate Thickness	1.7mm
Air Shaft Diameter	3inches
Voltage	220V/380V 50HZ 3Phases
Average Power	30KW
Total Weight	5500KG
Dimensions	5200x2000x3200mm

Maintenance & Warranty Guide

Maintenance

Maintenance of MG-C850-4/6 Flexo Printing Machine should be carried out in strict compliance with the maintenance guidance.
1. Every component should be cleaned up carefully.
2. For sanitation and cleanliness, a fixed schedule should be maintained to clean and wipe the machine. Greasy dirt should be removed from the paper, die and roller. The machine must be kept from paper scraps, dust, plastic rolling, etc.
3. Glycerol can be used to lubricate the entire machine.

Warranty

1. We offer a one-year warranty for the MG-C850-4/6 Flexo Printing Machine from the shipment date.
2. The warranty does not cover normally worn components.
3. We will not be responsible for any damage caused by misuse, improper handling, negligent maintenance, intentional injury or other damages.

Package & After-sale Service

Package

All machines are packaged by wooden case.

After-sale Service

1. A user guide is included to assist with the machine installation and adjustment and help solve problems that may be encountered.
2. The MG-C850-4/6 Flexo Printing Machine will be adjusted one week prior to delivery to make sure it is in perfect condition.
3. Technicians are available to guide the installation and adjustment on site. This service would be at the buyer's expense, which includes the technician's salary ($100 USD/day), traveling expense, accommodation, consulting fee, etc.
4. Free training is available and ongoing until the operator fully understands the operation and maintenance of our machine. The buyer should cover traveling and accommodation expenses of our technicians.
5. Our company provides wearing parts at no charge for one year.

Warranty Service:

Providing Peace of Mind with a One-Year Warranty

Mingguo stand behind the quality and reliability of our paper cup machines by offering a one-year warranty. This warranty covers the entire machine, giving customers peace of mind and safeguarding their investment. In the unlikely event of any machine malfunctions within the warranty period, our dedicated support team will promptly address the issue and provide necessary repairs or replacements.
