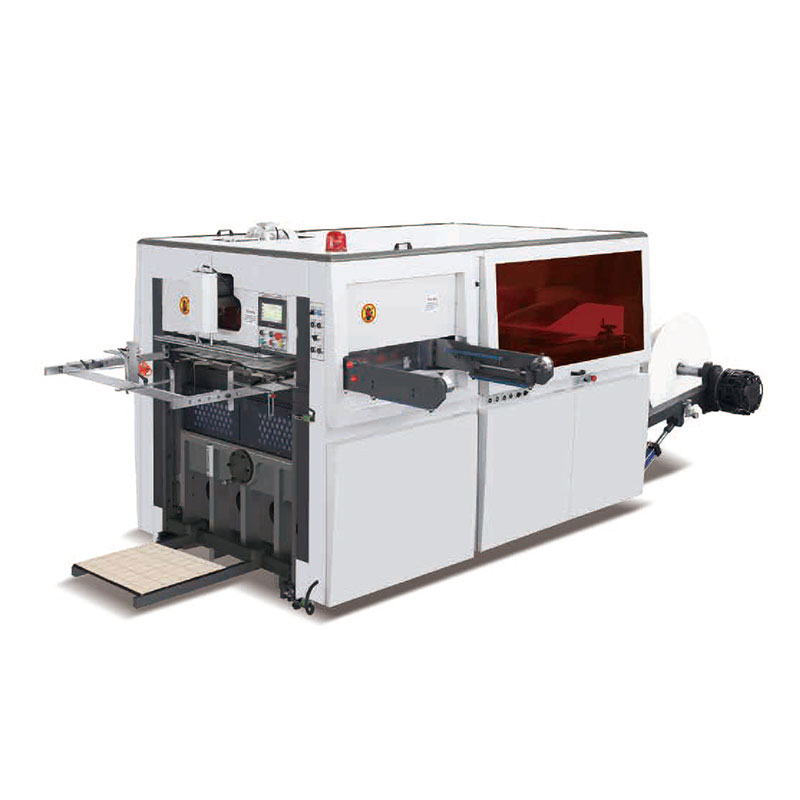

MG-C950 Roll Die Cutting / Creasing / Embossing Machine

Name: MG-C950 Roll Die Cutting / Creasing / Embossing Machine
Brand: Mingguo
SKU: 00005
Rating: 4.1 (53 reviews)

Specifications:

150-230 times/min

100-800g/m²

white cardboard

PE coated paper

Kraft paper.etc

Inquire Now

MG-C950 Roll Die Cutting / Creasing / Embossing Machine

Product Applications

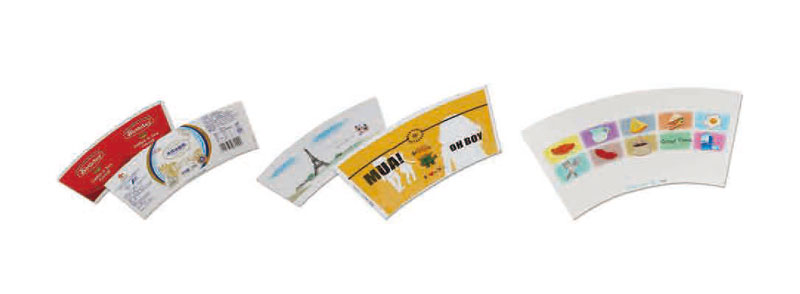

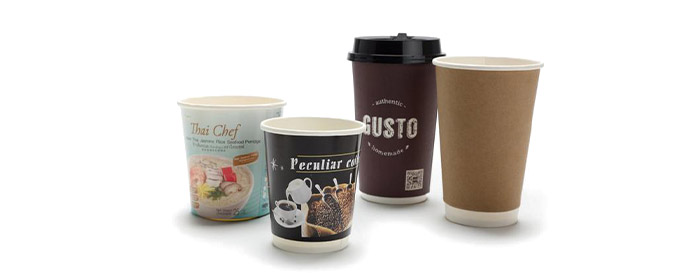

Our machines are capable of manufacturing single and double PE coated beverage cups, ice cream cups, coffee cups, foam tea cups, etc. with automatic handle cutting and sealing.

*Finished products can be customized

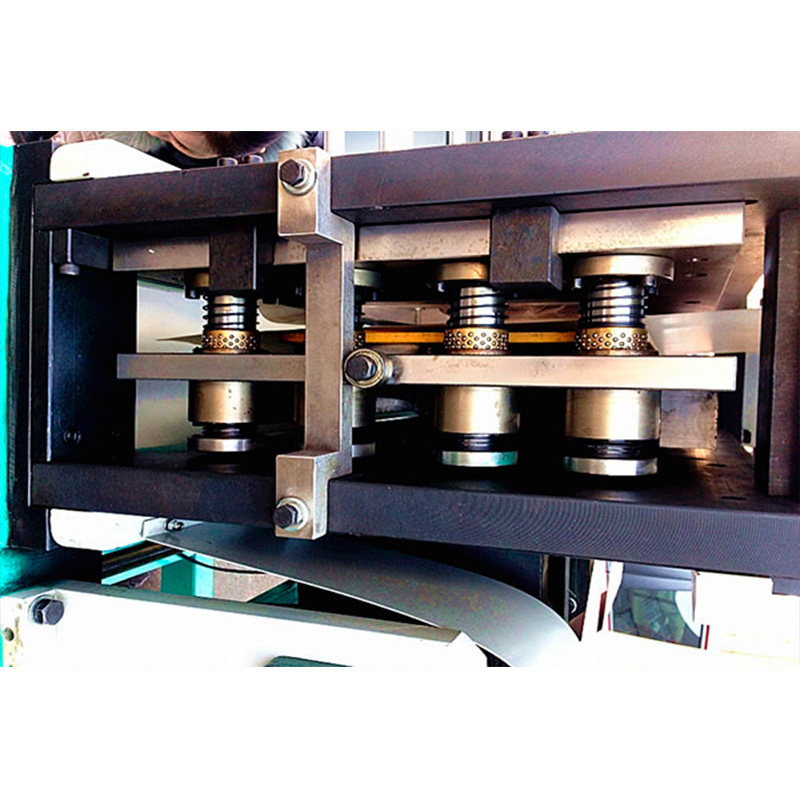

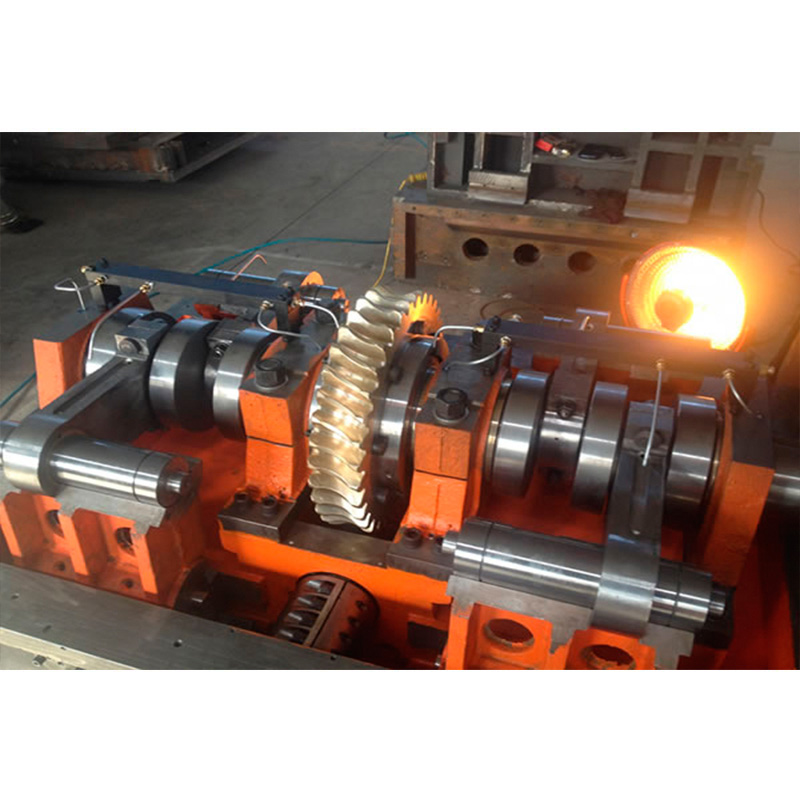

Main Parts

Our die-cutting machine based on international advanced technology, has a high stability, high safety performance, high precision of the finished product, it’s widely used in printing, packaging and paper products industries.

It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, automatic counting, manual pneumatic lock plate, photoelectric correcting deviation system, electromagnetic cluth, centralized oil lubrication, overload protection and distinctive gearing.

So it guarantees smooth operations of returning paper and feeding paper, precise positioning and orderly withdrawing. All the key parts and controls of the machine are imported. Such installation can realize the machine in steady pressure, precise positioning, smooth moving, safety and reliability.

Product Specifications

TECHNICAL SPECIFICATION

Model	MG-C950
Production Capacity	150-230 times/min
Paper Specification	100-800g/m²white cardboard, PE coated paper, Kraft paper.etc
Paper Convey Width	950mm-400mm
Max Roll Paper Diameter	1800mm
Maximum Cutting Size	950x540mm
Air Supply Requirement	Air pressure:0.6Mpa Air out-put:0.3cbm/min
Maximum Pressure	350T
Average Power	14.5KW
Total Weight	6300KG
Dimensions	4200x2100x1850mm

Outstanding Advantages

Automatic waste discharge function

Only one operator required

High paper smoothness

Maintenance & Warranty Guide

Maintenance

Maintenance of MG-C950 Roll Die Cutting / Creasing / Embossing Machine should be carried out in strict compliance with the maintenance guidance.
1. Every component should be cleaned up carefully.
2. For sanitation and cleanliness, a fixed schedule should be maintained to clean and wipe the machine. Greasy dirt should be removed from the paper, die and roller. The machine must be kept from paper scraps, dust, plastic rolling, etc.
3. Glycerol can be used to lubricate the entire machine.

Warranty

1. We offer a one-year warranty for the MG-C950 Roll Die Cutting / Creasing / Embossing Machine from the shipment date.
2. The warranty does not cover normally worn components.
3. We will not be responsible for any damage caused by misuse, improper handling, negligent maintenance, intentional injury or other damages.

Package & After-sale Service

Package

All machines are packaged by wooden case.

After-sale Service

1. A user guide is included to assist with the machine installation and adjustment and help solve problems that may be encountered.
2. The MG-C950 Roll Die Cutting / Creasing / Embossing Machine will be adjusted one week prior to delivery to make sure it is in perfect condition.
3. Technicians are available to guide the installation and adjustment on site. This service would be at the buyer's expense, which includes the technician's salary ($100 USD/day), traveling expense, accommodation, consulting fee, etc.
4. Free training is available and ongoing until the operator fully understands the operation and maintenance of our machine. The buyer should cover traveling and accommodation expenses of our technicians.
5. Our company provides wearing parts at no charge for one year.

Warranty Service:

Providing Peace of Mind with a One-Year Warranty

Mingguo stand behind the quality and reliability of our paper cup machines by offering a one-year warranty. This warranty covers the entire machine, giving customers peace of mind and safeguarding their investment. In the unlikely event of any machine malfunctions within the warranty period, our dedicated support team will promptly address the issue and provide necessary repairs or replacements.
