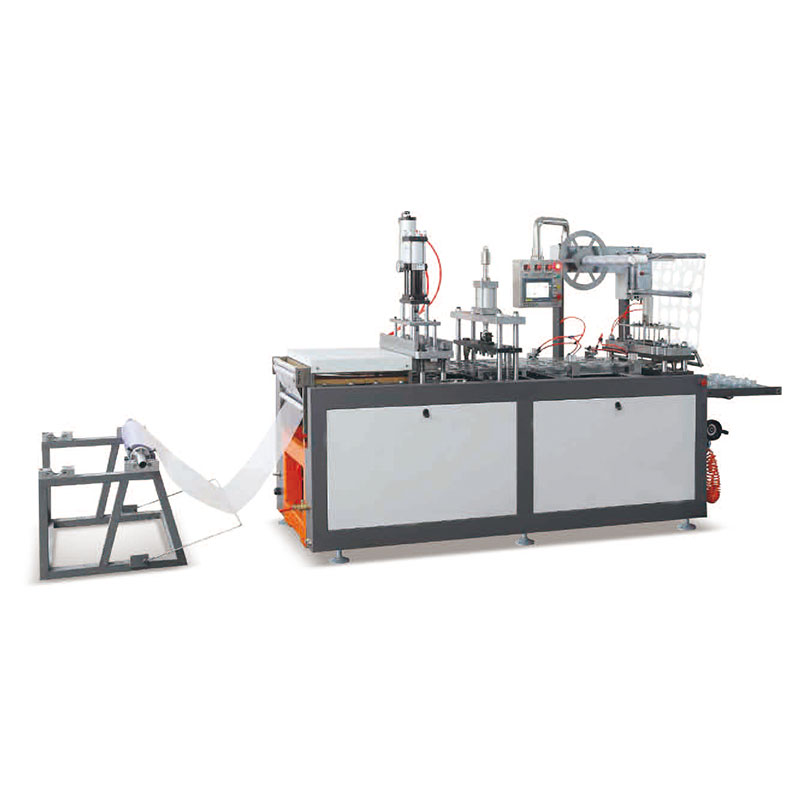

MG-D450 Plastic Lid Forming Machine

Name: MG-D450 Plastic Lid Forming Machine
Brand: Mingguo
SKU: 00006
Rating: 4.1 (53 reviews)

Specifications:

15-45 strokes/min

Stroke adjustable range 300mm

Maximum forming depth 45mm

Max Forming Area 450x300mm

Inquire Now

Product Applications

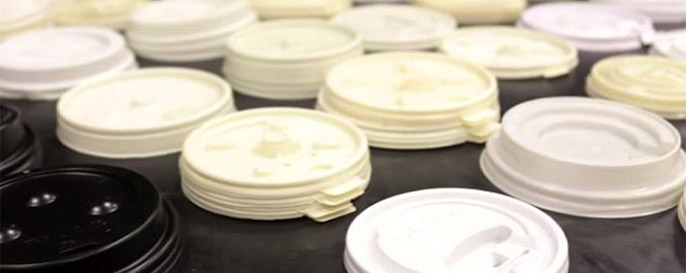

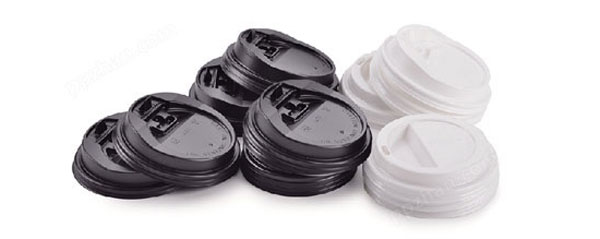

No matter what shape of paper lids can be produced on our machines, our technology for producing lids that fit perfectly on beverage cups or packages.

*Finished products can be customized

Main Parts

The MG-450 is Forming and punching for plastic material like PS/PVC/PET etc.which used in Hardware tray, food tray, pharmaceutical tray, PS/PVC/PET Etc PlasticCup Cap.

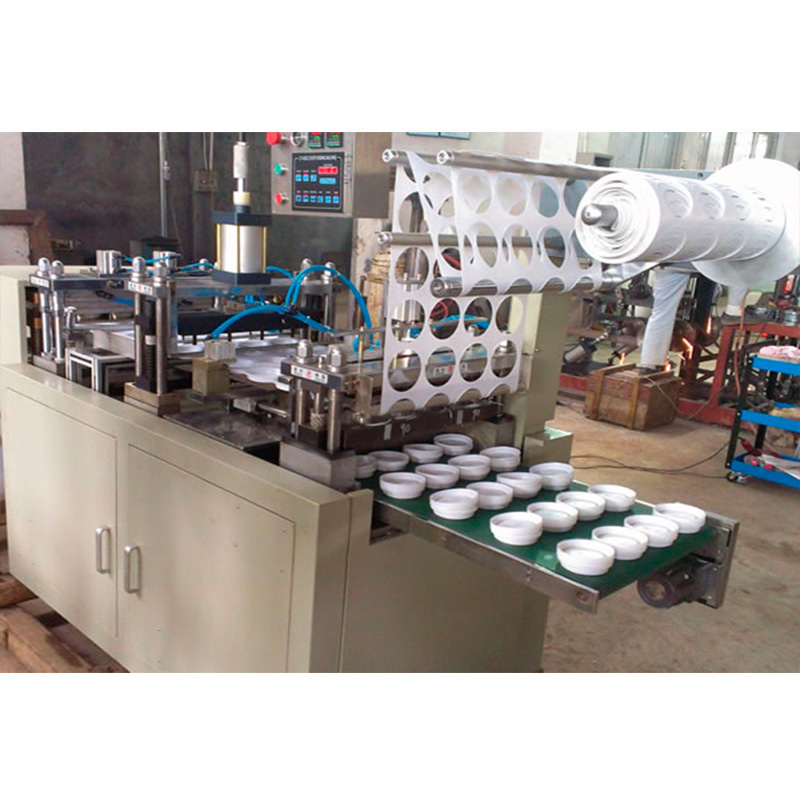

The procefure of Roll Film Loading, Forming, Hole Punching, Punching, Output, Roll FilmReclaiming Six-Station Synchronous Production, Manipulator FeederCompact Structure & Stable Performance making the operation more easire ,our main function is Journey Adjustable, making the mould replacement more easir ,and it is suitable for different specifications.

Product Specifications

TECHNICAL SPECIFICATION

Model	MG-DC
Production Capacity	15-45 strokes/min
Main Function	Plastic products automatic forming, punching and cutting.
Application	It widely use in PET,PC,PVC,HIPS,PLA plastic lids, medicine /food /daily /electronics /hardware etc production.
Stroke adjustable range	300mm
Maximum forming depth	45mm
Max Forming Area	450x300mm
Average Power	6KW
Air Supply Requirement	Air pressure:0.4-0.7Mpa Air out-put:0.2cbm/min
Total Weight	1850KG
Dimensions	3000x1800x1500mm

Outstanding Advantages

Automated operation: The equipment adopts an automated control system to reduce manual operations and reduce labor costs.

Maintenance & Warranty Guide

Maintenance

Maintenance of MG-D450 Plastic Lid Forming Machine should be carried out in strict compliance with the maintenance guidance.
1. Every component should be cleaned up carefully.
2. For sanitation and cleanliness, a fixed schedule should be maintained to clean and wipe the machine. Greasy dirt should be removed from the paper, die and roller. The machine must be kept from paper scraps, dust, plastic rolling, etc.
3. Glycerol can be used to lubricate the entire machine.

Warranty

1. We offer a one-year warranty for the MG-D450 Plastic Lid Forming Machine from the shipment date.
2. The warranty does not cover normally worn components.
3. We will not be responsible for any damage caused by misuse, improper handling, negligent maintenance, intentional injury or other damages.

Package & After-sale Service

Package

All machines are packaged by wooden case.

After-sale Service

1. A user guide is included to assist with the machine installation and adjustment and help solve problems that may be encountered.
2. The MG-D450 Plastic Lid Forming Machine will be adjusted one week prior to delivery to make sure it is in perfect condition.
3. Technicians are available to guide the installation and adjustment on site. This service would be at the buyer's expense, which includes the technician's salary ($100 USD/day), traveling expense, accommodation, consulting fee, etc.
4. Free training is available and ongoing until the operator fully understands the operation and maintenance of our machine. The buyer should cover traveling and accommodation expenses of our technicians.
5. Our company provides wearing parts at no charge for one year.

Warranty Service:

Providing Peace of Mind with a One-Year Warranty

Mingguo stand behind the quality and reliability of our paper cup machines by offering a one-year warranty. This warranty covers the entire machine, giving customers peace of mind and safeguarding their investment. In the unlikely event of any machine malfunctions within the warranty period, our dedicated support team will promptly address the issue and provide necessary repairs or replacements.
