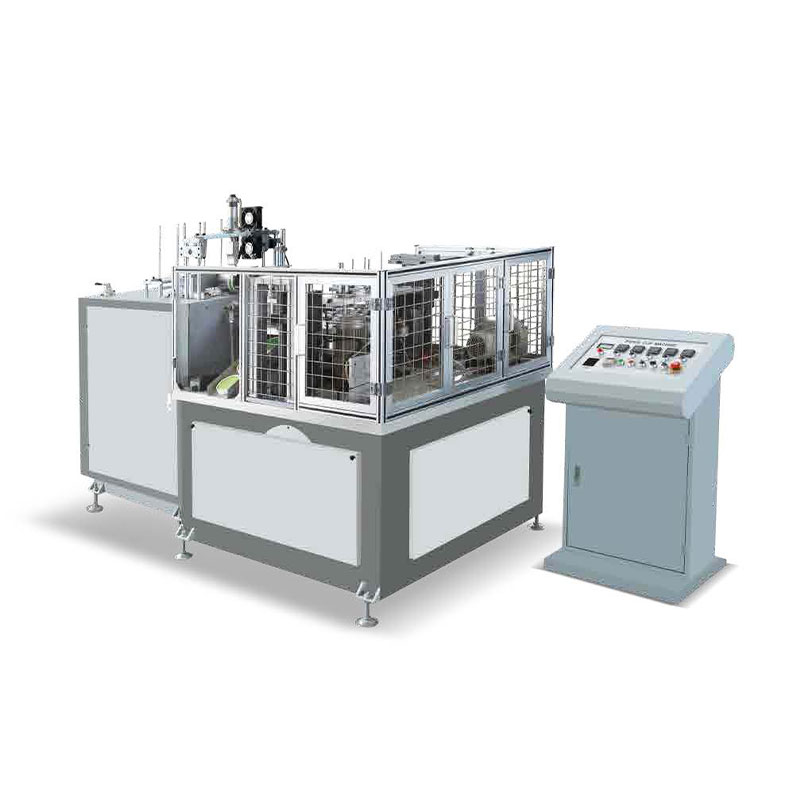

MG-PL60 Paper Lid Making Machine

Name: MG-PL60 Paper Lid Making Machine
Brand: Mingguo
SKU: 00007
Rating: 4.1 (54 reviews)

Specifications:

65-125mm

250-350 GSM single/double PE coated paper

70-80pcs/min

220V/380V 50HZ 3Phases

Inquire Now

Product Applications

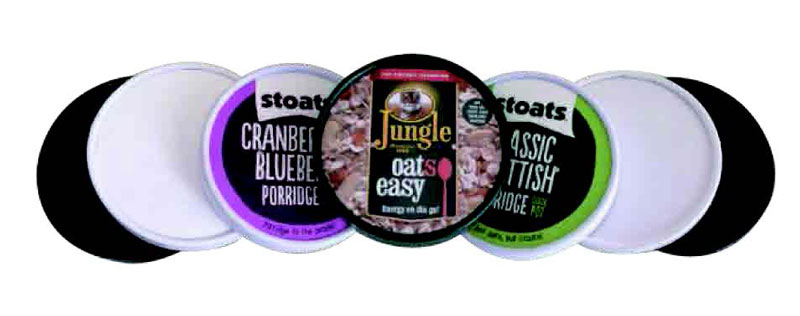

No matter what shape of paper lids can be produced on our machines, our technology for producing lids that fit perfectly on beverage cups or packages.

*Finished products can be customized

Main Parts

Paper lid machines are widely used in ice cream cups, soup cups, coffee cups, etc. Speed is about 35 pcs/min, it is a fully automatic cup cover forming equipment controlled by PLC programming, and each work station is positioned through an encoder.

The whole process is safe and pollution-free, no need to spray glue. It responds to the national and even global environmental protection advocacy and call while saving a lot of costs. Moreover, the finished lid has three layers on each side. It is high in strength and will not leak. It is beautiful and easy to operate (one person). Stable performance, small footprint and high efficiency.

Product Specifications

TECHNICAL SPECIFICATION

Model	MG-PL60
Paper Lid Diameter	65-125mm
Paper Specification	250-350 GSM single/double PE coated paper
Production Capacity	70-80pcs/min
Voltage	220V/380V 50HZ 3Phases
Air Supply Requirement	Air pressure:0.4Mpa Air out-put:0.12cbm/min
Total Weight	1500KG
Dimensions	2380x1600x1900mm

Outstanding Advantages

Automated operation: The equipment adopts an automated control system to reduce manual operations and reduce labor costs.

Maintenance & Warranty Guide

Maintenance

Maintenance of MG-PL60 Paper Lid Making Machine should be carried out in strict compliance with the maintenance guidance.
1. Every component should be cleaned up carefully.
2. For sanitation and cleanliness, a fixed schedule should be maintained to clean and wipe the machine. Greasy dirt should be removed from the paper, die and roller. The machine must be kept from paper scraps, dust, plastic rolling, etc.
3. Glycerol can be used to lubricate the entire machine.

Warranty

1. We offer a one-year warranty for the MG-PL60 Paper Lid Making Machine from the shipment date.
2. The warranty does not cover normally worn components.
3. We will not be responsible for any damage caused by misuse, improper handling, negligent maintenance, intentional injury or other damages.

Package & After-sale Service

Package

All machines are packaged by wooden case.

After-sale Service

1. A user guide is included to assist with the machine installation and adjustment and help solve problems that may be encountered.
2. The MG-PL60 Paper Lid Making Machine will be adjusted one week prior to delivery to make sure it is in perfect condition.
3. Technicians are available to guide the installation and adjustment on site. This service would be at the buyer's expense, which includes the technician's salary ($100 USD/day), traveling expense, accommodation, consulting fee, etc.
4. Free training is available and ongoing until the operator fully understands the operation and maintenance of our machine. The buyer should cover traveling and accommodation expenses of our technicians.
5. Our company provides wearing parts at no charge for one year.

Warranty Service:

Providing Peace of Mind with a One-Year Warranty

Mingguo stand behind the quality and reliability of our paper cup machines by offering a one-year warranty. This warranty covers the entire machine, giving customers peace of mind and safeguarding their investment. In the unlikely event of any machine malfunctions within the warranty period, our dedicated support team will promptly address the issue and provide necessary repairs or replacements.
