MG-SPT500 Paper Plates/ Tray Machine

Name: MG-SPT500 Paper Plates/ Tray Machine
Brand: Mingguo
SKU: 00003
Rating: 4.1 (52 reviews)

Specifications:

Production Capacity 90-130pcs/min

Total Power thickness:100-600gsm

Plate Specification 220V/380V50HZ.8.5KW

Packing Size 5 inch-12 inch

Inquire Now

Product Applications

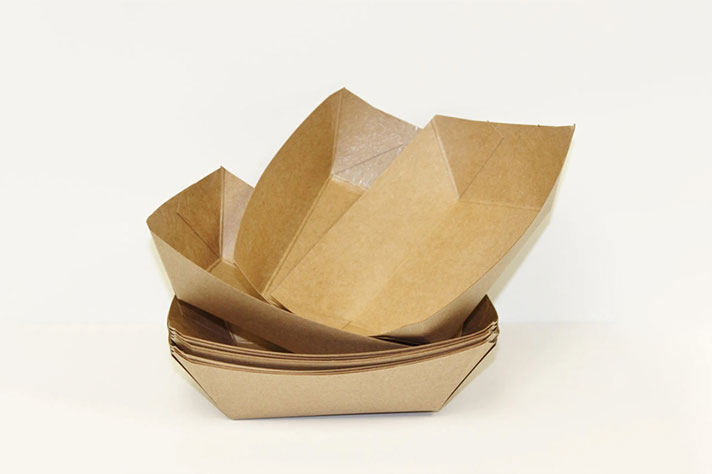

Trays have a wide range of applications and we use them in restaurants and public places.

*Finished products can be customized

Main Parts

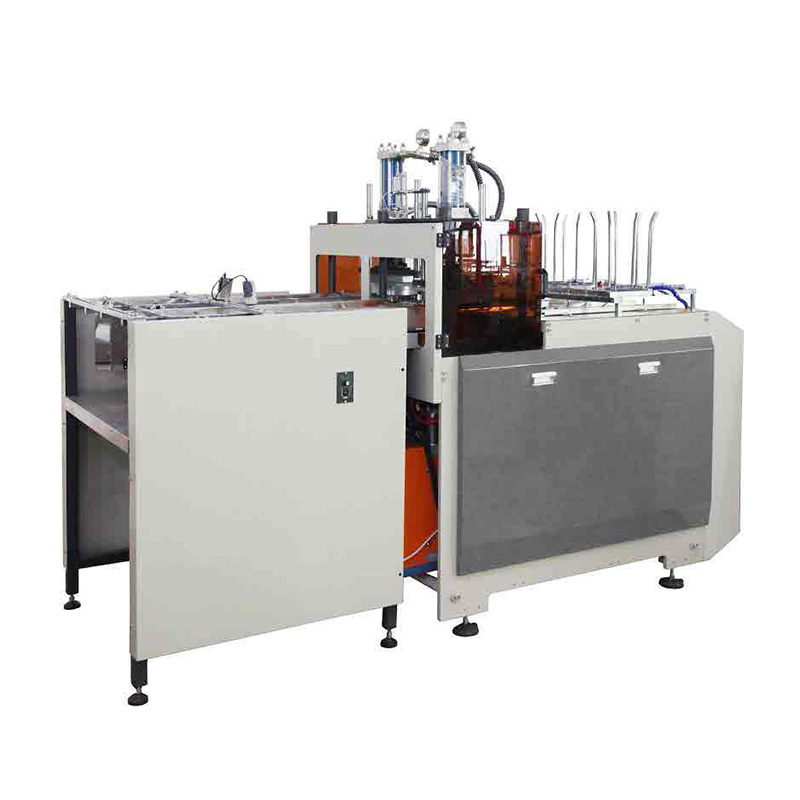

MG-SPT500 double workplace mechanical type paper plate(dish) forming machineis independently research and developed according to the market It's for platesin small sizes and shallow depth.

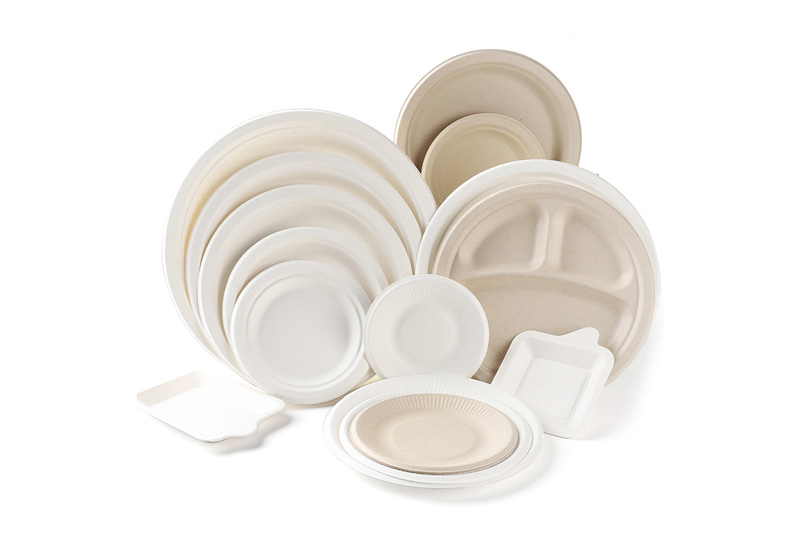

It have many functions of automatic paper-feedingheating forming, automatic outputting, constant temperature control, automaticcounting and collecting. It's an ideal equipment for producing small round andsquare plates in production line.

Its body frame was built by 2 pieces of thicker iron plate and optical axis. Withoutwelding, higher precision, running stability, long service life. And the PLC control panel with touch screen,also it adopts mechanical working in paper-feeding, it's more stable than traditionalfeeding technology and the rejection rate is greatly reduced4.

It with humanized design, automatic counting system and collection, it can savemore human resource than traditional machine,moreover ,it can equipped with packing machine(paper plates packaging film) and labelingmachine(the label after packaging). It's suitable for production line.

Product Specifications

TECHNICAL SPECIFICATION

Model	MG-SPT500
Production Capacity	90-130pcs/min
Raw Material	Base paper,card boardivory board, aluminum foil paper or other;
Total Power	thickness:100-600gsm
Plate Specification	220V/380V50HZ.8.5KW
Packing Size	5 inch-12 inch
Weight	220017001800mm
Air Supply Compression	1400kgs air pressure: 0.8mpa
Air Out-put	0.3-0.6cbm/min

Maintenance & Warranty Guide

Maintenance

Maintenance of MG-SPT500 Paper Plates/ Tray Machine should be carried out in strict compliance with the maintenance guidance.
1. Every component should be cleaned up carefully.
2. For sanitation and cleanliness, a fixed schedule should be maintained to clean and wipe the machine. Greasy dirt should be removed from the paper, die and roller. The machine must be kept from paper scraps, dust, plastic rolling, etc.
3. Glycerol can be used to lubricate the entire machine.

Warranty

1. We offer a one-year warranty for the MG-SPT500 Paper Plates/ Tray Machine from the shipment date.
2. The warranty does not cover normally worn components.
3. We will not be responsible for any damage caused by misuse, improper handling, negligent maintenance, intentional injury or other damages.

Package & After-sale Service

Package

All machines are packaged by wooden case.

After-sale Service

1. A user guide is included to assist with the machine installation and adjustment and help solve problems that may be encountered.
2. The MG-SPT500 Paper Plates/ Tray Machine will be adjusted one week prior to delivery to make sure it is in perfect condition.
3. Technicians are available to guide the installation and adjustment on site. This service would be at the buyer's expense, which includes the technician's salary ($100 USD/day), traveling expense, accommodation, consulting fee, etc.
4. Free training is available and ongoing until the operator fully understands the operation and maintenance of our machine. The buyer should cover traveling and accommodation expenses of our technicians.
5. Our company provides wearing parts at no charge for one year.

Warranty Service:

Providing Peace of Mind with a One-Year Warranty

Mingguo stand behind the quality and reliability of our paper cup machines by offering a one-year warranty. This warranty covers the entire machine, giving customers peace of mind and safeguarding their investment. In the unlikely event of any machine malfunctions within the warranty period, our dedicated support team will promptly address the issue and provide necessary repairs or replacements.
