MG-B600 / B600M / B600L Paper Bowl Machine

Name: MG-B600 / B600M / B600L Paper Bowl Machine
Brand: Mingguo
SKU: 00013
Rating: 4.1 (57 reviews)

Specifications:

4-35oz/ 20-50oz/ 35-130oz

100-1000ml/ 500-1500ml/ 1000-3500ml

T:55-150mm/ T:55-170mm/ T:55-230mm

H:35-110mm/ H:35-110mm/ H:100-170mm

B:50-128mm/ B:50-145mm/ B:50-185mm

Inquire Now

MG-B600 / B600M / B600L Paper Bowl Machine

Product Applications

The products produced by mingguo Paper Bowl Machine have excellent water resistance and heat resistance and are not easily damaged. They are safe, hygienic, lightweight, convenient and perfect for holding food and drinks. It can be used in public places, hotels, and restaurants, and is a commonly used disposable product.

The paper bowl forming machine has a high degree of automation, can achieve continuous production, has high production efficiency and fast production speed, and can meet the needs of mass production. At the same time, using paper tableware is also in line with the concept of environmental protection and is environmentally friendly.

*The finished product of the smart Paper Bowl Machine can be customized.

Main Parts

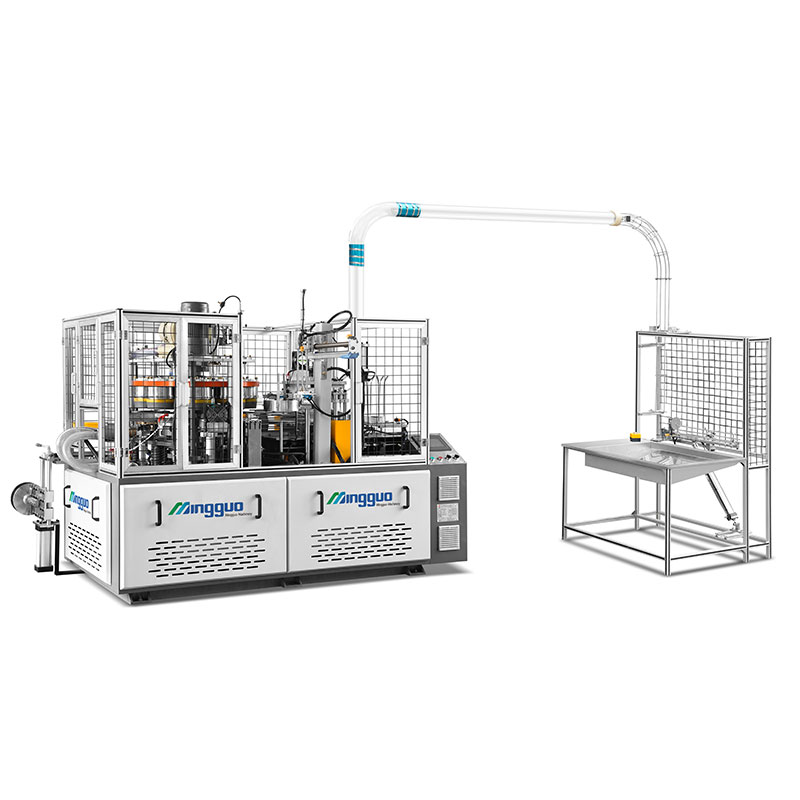

MG-B600 Automatic Paper Bowl Forming Machine, a newly developed from turn-plates old type bowl machine, achieves a manufacturing speed of 50-80pcs/min. This paper bowl forming machine provides a multi-station design and is able to make single and double PE coated beverage bowls, ice cream bowls. In addition to that, this integrated automatic paper bowl forming machine combines all these processing procedures together: paper feeding, sealing, bottom cutting, lubricating, heating, knurling, curling and collecting.

Outstanding Features of Paper Bowl machine

1. The machine enclosure is easy to disassemble and makes the routine machine examination and maintenance simple and convenient.
2. The stretchable knife makes sure good sealing between bowl bottom and main body. It decreases the leakage rate.
3. It is this patented bottom rolling device that offers 5 times embossing force of traditional equipment. That’s why paper products produced by our company have clear and uniform patterns.
4. All molds are processed by CNC lathes, leading to good quality and standard specifications.
5. The alarming system is very functional. It will give an alarm as soon as any technical error or fault is tested.

Product Specifications

TECHNICAL SPECIFICATION

Model	MG-B600	MG-B600M	MG-B600L
Paper Bowl Specification	4-35oz	20-50oz	35-130oz
	100-1000ml	500-1500ml	1000-3500ml
	T:55-150mm	T:55-170mm	T:55-230mm
	H:35-110mm	H:35-110mm	H:100-170mm
	B:50-128mm	B:50-145mm	B:50-185mm
Paper Specification	150-350GSM
Production Capacity	60-80 pcs/min	50-60 pcs/min	40-50 pcs/min
Voltage	220V/380V 50HZ 3Phases
Average Power	8.5KW	10KW	12KW
Air Supply requirement	Air pressure:0.5-0.8Mpa. Air Out-put:0.4cbm/minute
Dimension	2500x1500x1800mm	2600x1650x1800mm	3000x1750x2100mm

Outstanding Advantages

Paper fan feeding device.

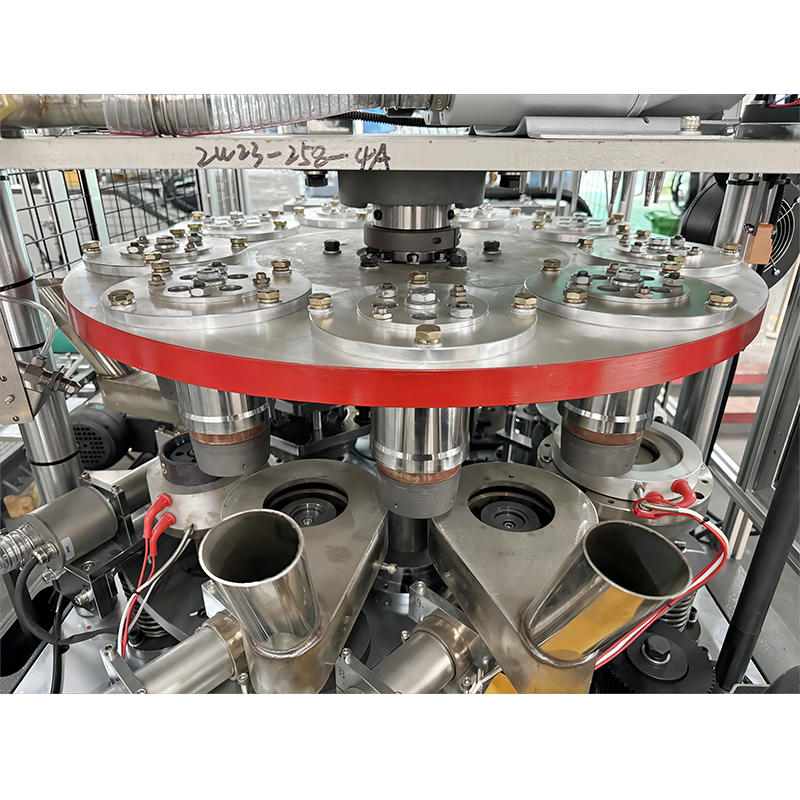

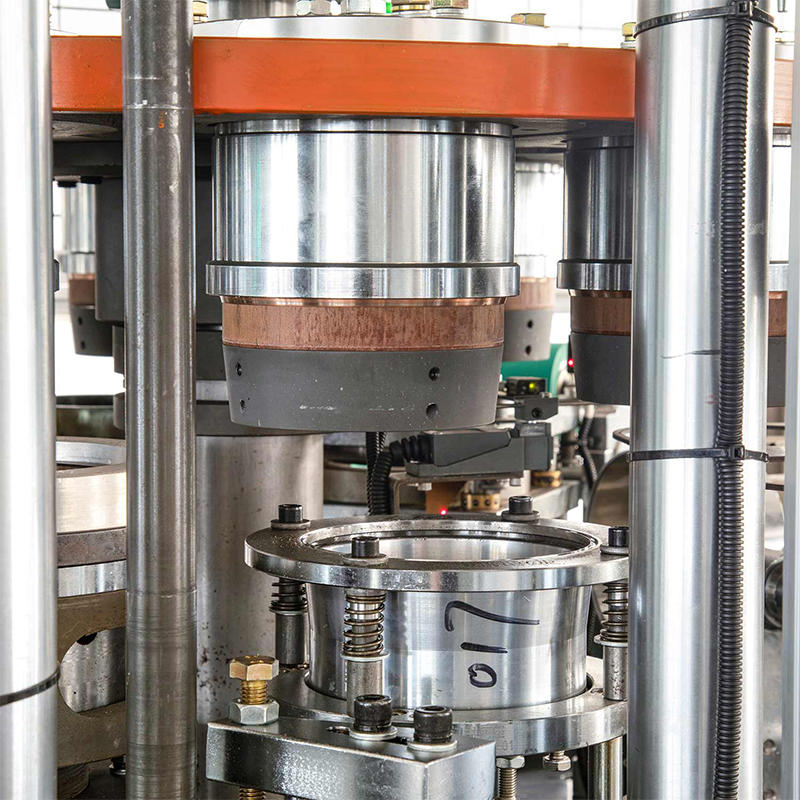

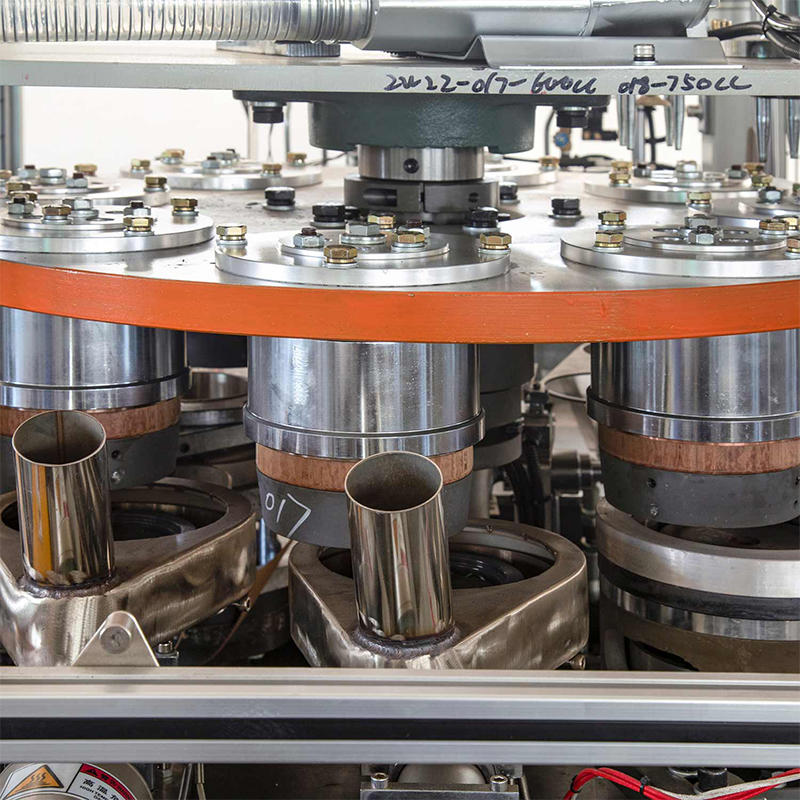

The speed of 9 -stations paper bowl mold is much faster compaired to 8 stations of other factory ,we added for one station of heating device ,greatly reduces the situation of bowls not sticking.

The sealing heater provides good sealing in an electricity-saving manner.

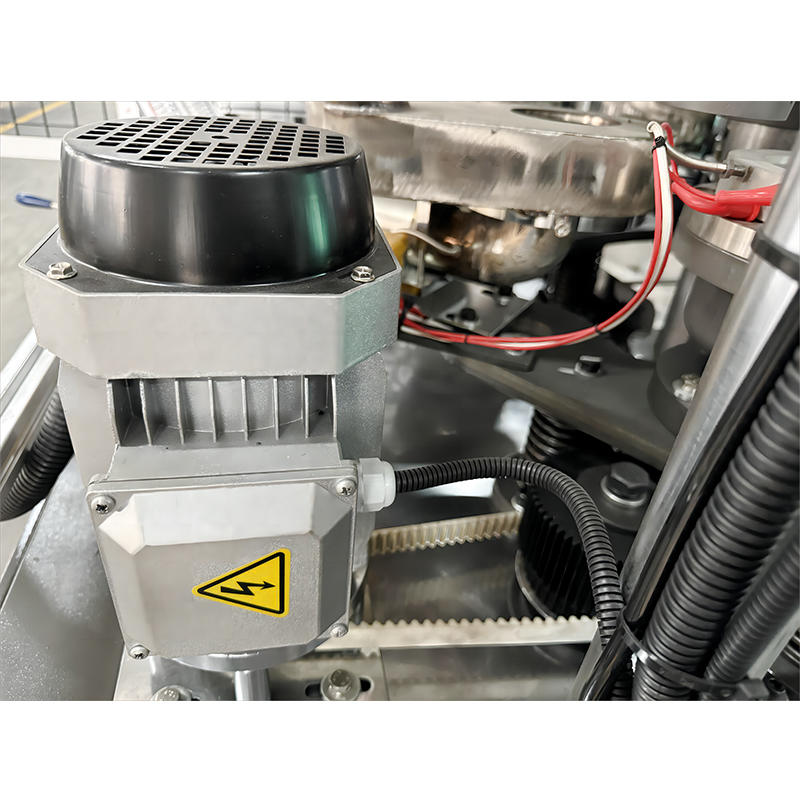

The knurling is equipped with a motor,comparing with the previous gear drive, the force is more even and the adhesion is better.

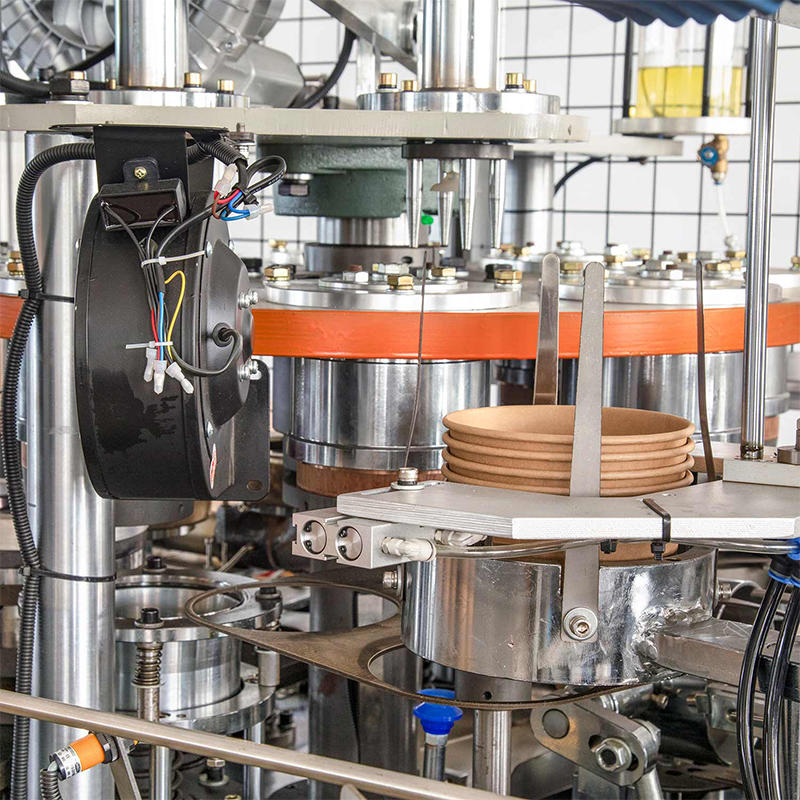

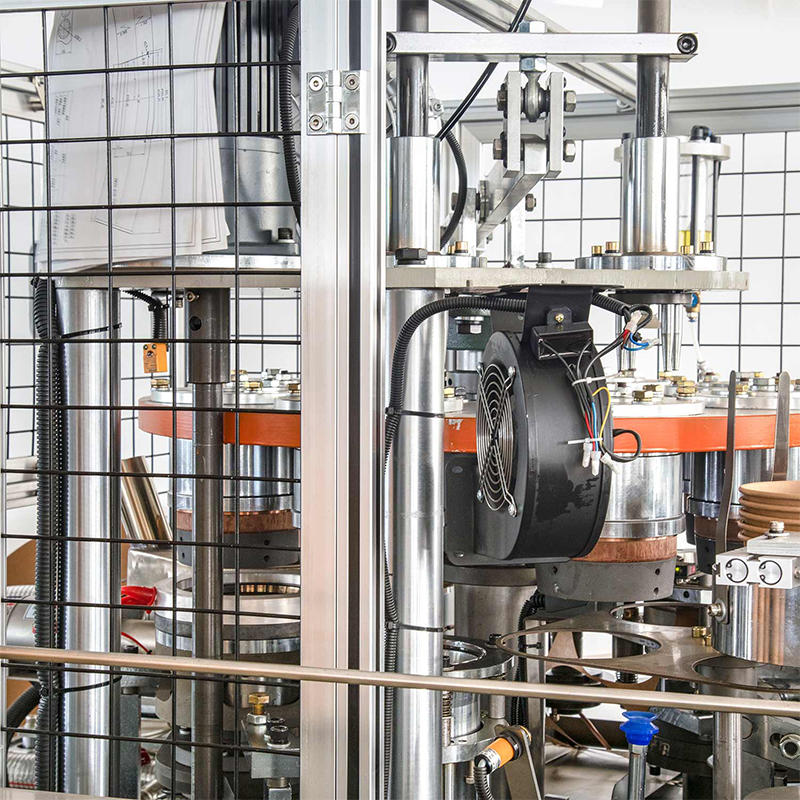

The fan for cooling the mold.

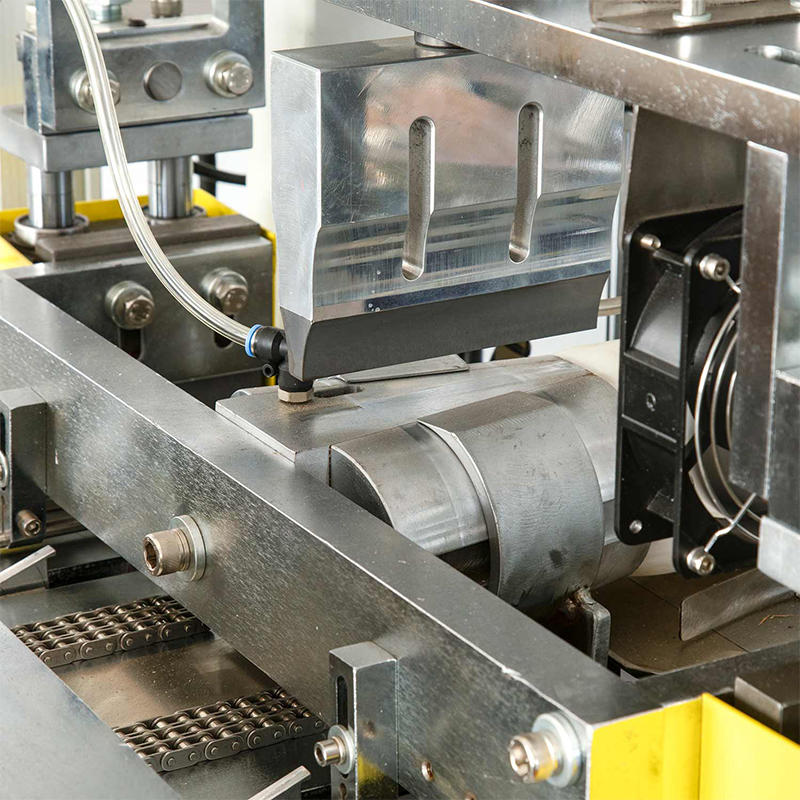

The process of the flat die head is more complicated than that of the round die head, and the bowls produced are more beautiful.Ultrasonic techniques are applied to do sealing of single or double PE coated paper bowls, which are ideal to contain hot or cold food.

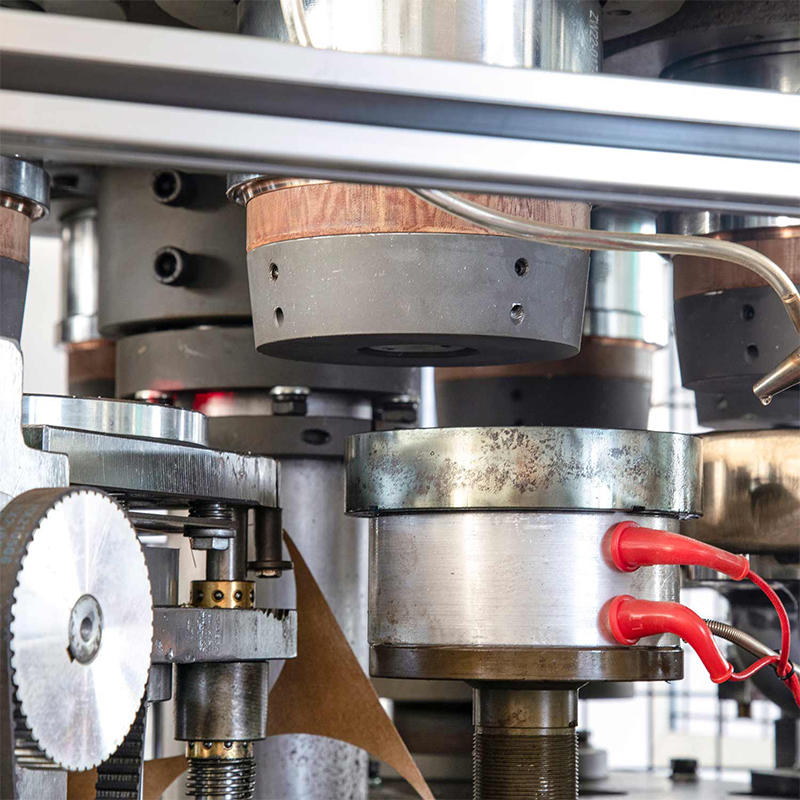

The body of paper cup and the bottom of cup portion bonded by Swiss (Leister brand) heater, ensuring the stability of adhesion.

Our Curling device is easier to operate ,amd the softness and hardness of the spring can be changed to adapt to different kinds of paper.

This robot arm is frequently used for picking up cups. It's safe and convenient.

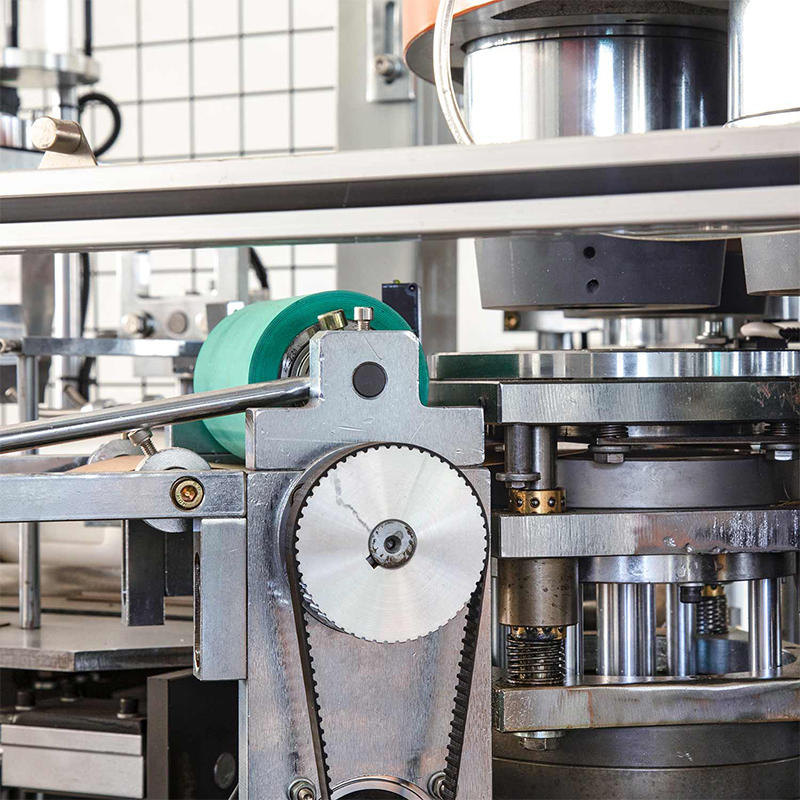

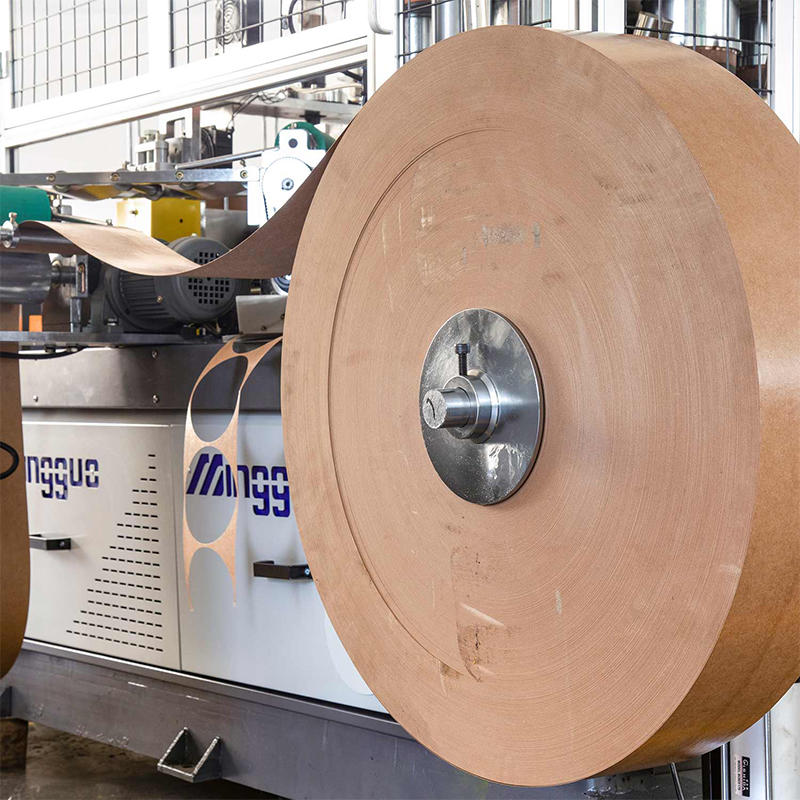

Fast punching of bottom paper cutting mode and the paper feeding with servo moter.

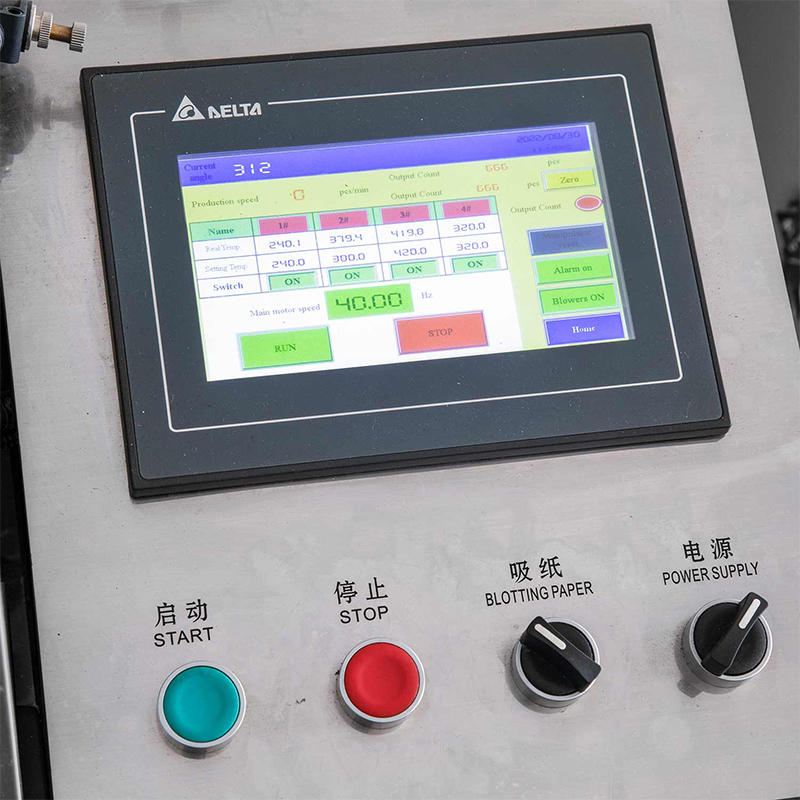

PLC control system.

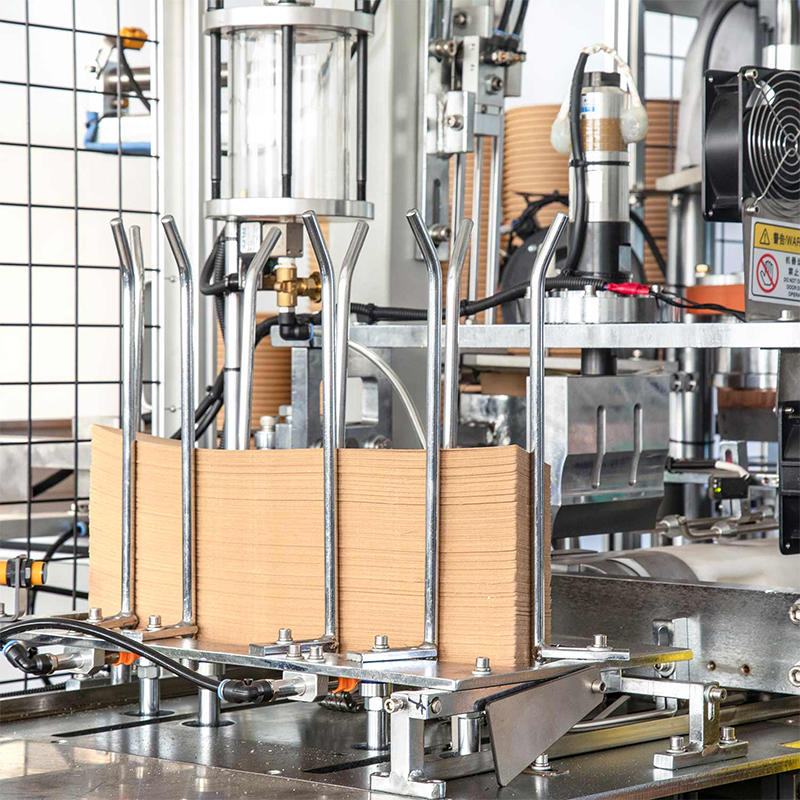

automatic labor-saving bottom paper feeding device.

Maintenance & Warranty Guide

Maintenance

Maintenance of MG-B600 / B600M / B600L Paper Bowl Machine should be carried out in strict compliance with the maintenance guidance.
1. Every component should be cleaned up carefully.
2. For sanitation and cleanliness, a fixed schedule should be maintained to clean and wipe the machine. Greasy dirt should be removed from the paper, die and roller. The machine must be kept from paper scraps, dust, plastic rolling, etc.
3. Glycerol can be used to lubricate the entire machine.

Warranty

1. We offer a one-year warranty for the MG-B600 / B600M / B600L Paper Bowl Machine from the shipment date.
2. The warranty does not cover normally worn components.
3. We will not be responsible for any damage caused by misuse, improper handling, negligent maintenance, intentional injury or other damages.

Package & After-sale Service

Package

All automatic paper bowl forming machines are packaged by wooden case.

After-sale Service

1. A user guide is included to assist with the machine installation and adjustment and help solve problems that may be encountered.
2. The MG-B600 / B600M / B600L Paper Bowl Machine will be adjusted one week prior to delivery to make sure it is in perfect condition.
3. Technicians are available to guide the installation and adjustment on site. This service would be at the buyer's expense, which includes the technician's salary ($100 USD/day), traveling expense, accommodation, consulting fee, etc.
4. Free training is available and ongoing until the operator fully understands the operation and maintenance of our automatic paper bowl forming machine. The buyer should cover traveling and accommodation expenses of our technicians.
5. Our company provides wearing parts at no charge for one year.

Warranty Service:

Providing Peace of Mind with a One-Year Warranty

Mingguo stand behind the quality and reliability of our paper cup machines by offering a one-year warranty. This warranty covers the entire machine, giving customers peace of mind and safeguarding their investment. In the unlikely event of any machine malfunctions within the warranty period, our dedicated support team will promptly address the issue and provide necessary repairs or replacements.
