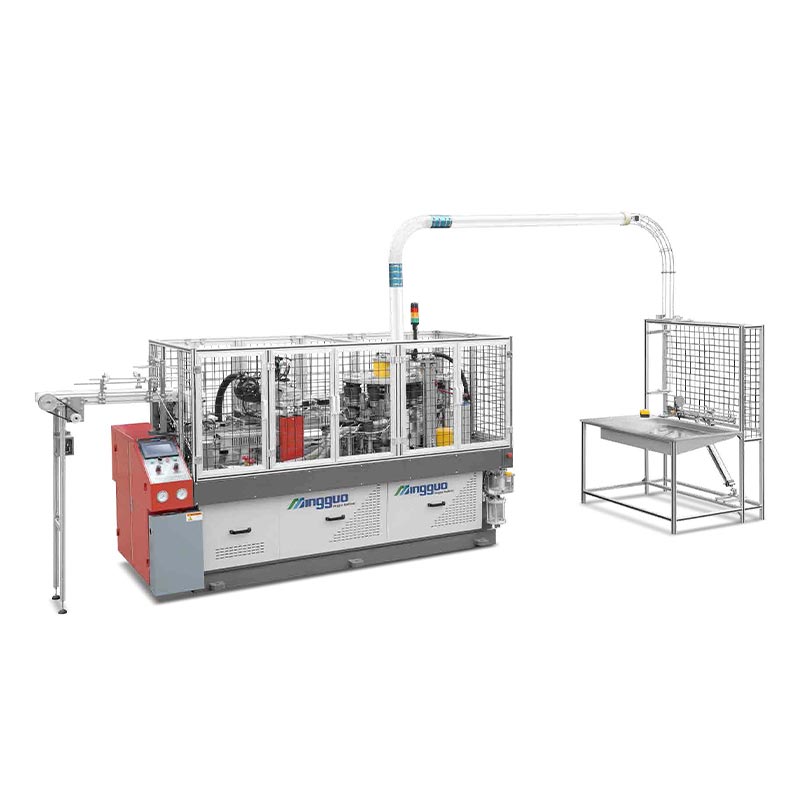

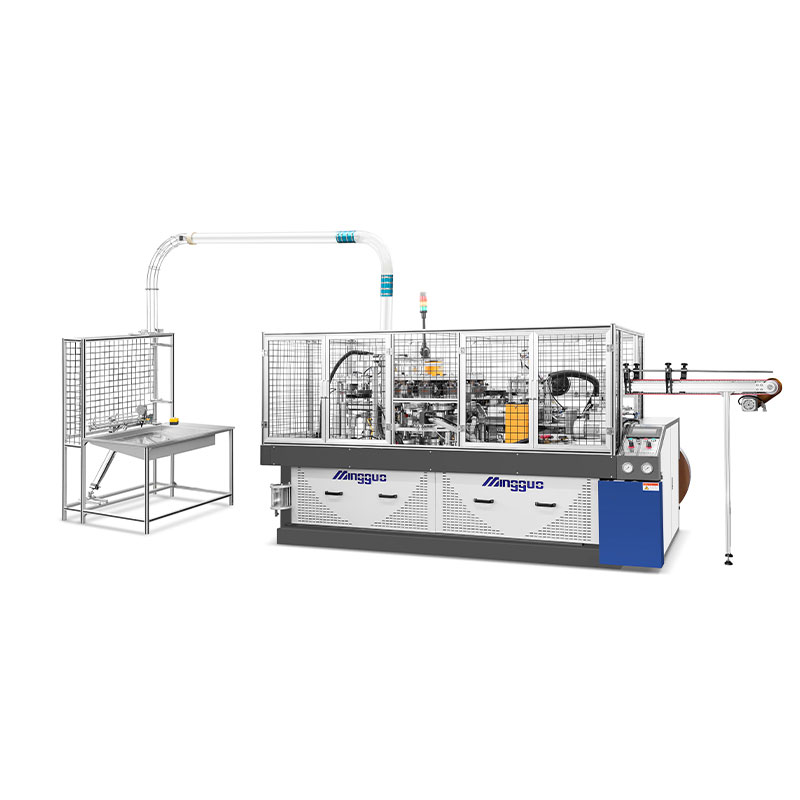

MG-GB800-F Rectangle Paper Bowl Forming Machine

Name: MG-GB800-F Rectangle Paper Bowl Forming Machine
Brand: Mingguo
SKU: 00050
Rating: 4.1 (75 reviews)

The MG-GB800-F Rectangle Paper Bowl Forming Machine is engineered to accommodate a wide range of paper bowl sizes. It processes paper with weights ranging from 190-320 GSM, including single or double PE/PLA coated options, and achieves a production rate of 50-60 pieces per minute. The machine operates on 220V/380V 50Hz 3-phase power with an average power consumption of 13 kW.

Specifications:

50-60 pcs/min

190-320 GSM single/double PE/PLA coated paper

Inquire Now

Product Applications

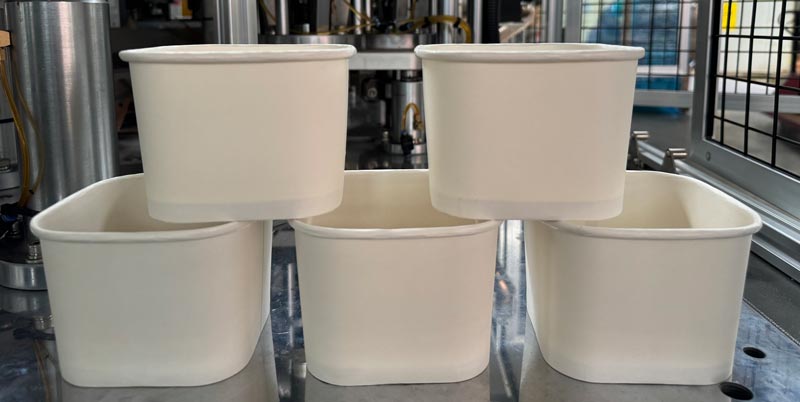

The MG-GB800-F Rectangle Paper Bowl Forming Machine offers versatile production of various sizes and shapes to meet diverse food service needs. Ideal for public events, hotels, restaurants, cafes, and food stalls, these lightweight, durable bowls are perfect for serving hot soups, cold salads, and beverages. Their hygienic and eco-friendly design enhances consumer satisfaction while supporting sustainable practices.
*The finished product of the Paper Bowl Forming Machine can be customized.

Main Parts

1. The MG-GB800-F Rectangle Paper Bowl Forming Machine is a highly versatile and advanced solution for manufacturing a wide range of paper bowls. It efficiently processes paper with weights from 190-320 GSM, including single and double PE/PLA coated varieties.

2. The machine integrates several high-performance features including a paper frame for precise alignment, paper side pre-heating for optimal forming, and ultrasonic sealing for strong, reliable bonds.

3. It also includes a bowl turning robot for seamless handling, bottom hot air heaters and curling mechanisms for perfect bowl shape, and a bottom knurling device for added texture. Additional features like a bowl rim oil coating device, two-stage top curling, and bottom paper servo feeding ensure high-quality output, while the bottom punching and paper wasting outlet device enhance operational efficiency.

Product Specifications

Model

MG-GB800-F

Product range (square)

65X65≤T≤130X130mm

H:40-85MM

50X50≤B≤120X120mm

Product range (rectangle)

75X65≤T≤170X120mm

H: 40-85mm

65X50≤B≤150X100mm

Paper specification

Production Capacity

190-320 GSM single/double PE/PLA coated paper

50-60 pcs/min

Voltage

Average Power

220V/380V 50HZ 3Phases

13 KW

Air supply requirement

Total weight

Compressed air: 0.4Mpa，0.4m³/min

4500 kg

Dimensions

3500×1700×2000mm

Outstanding Advantages

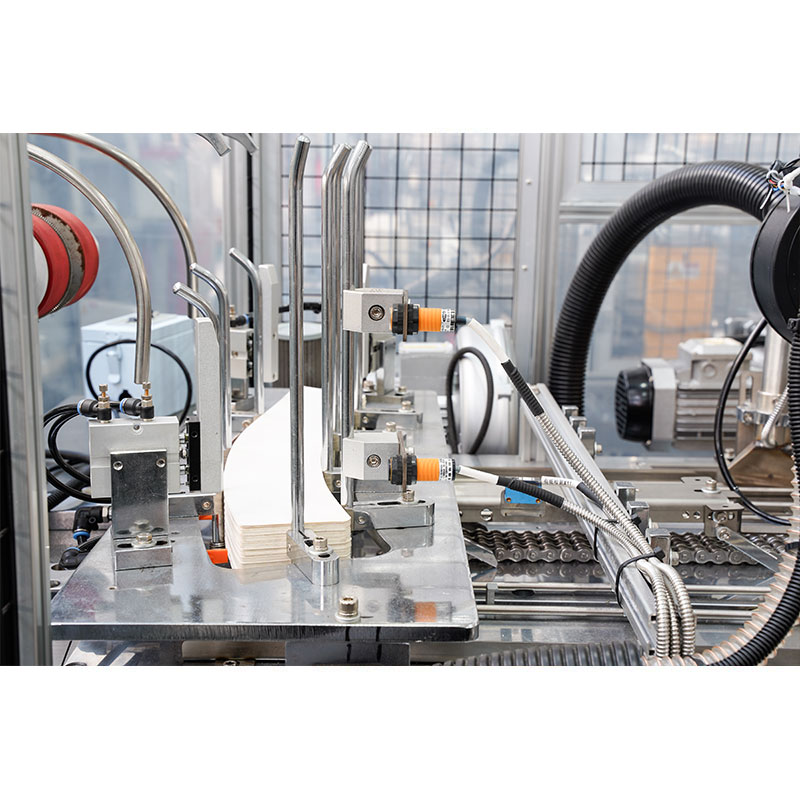

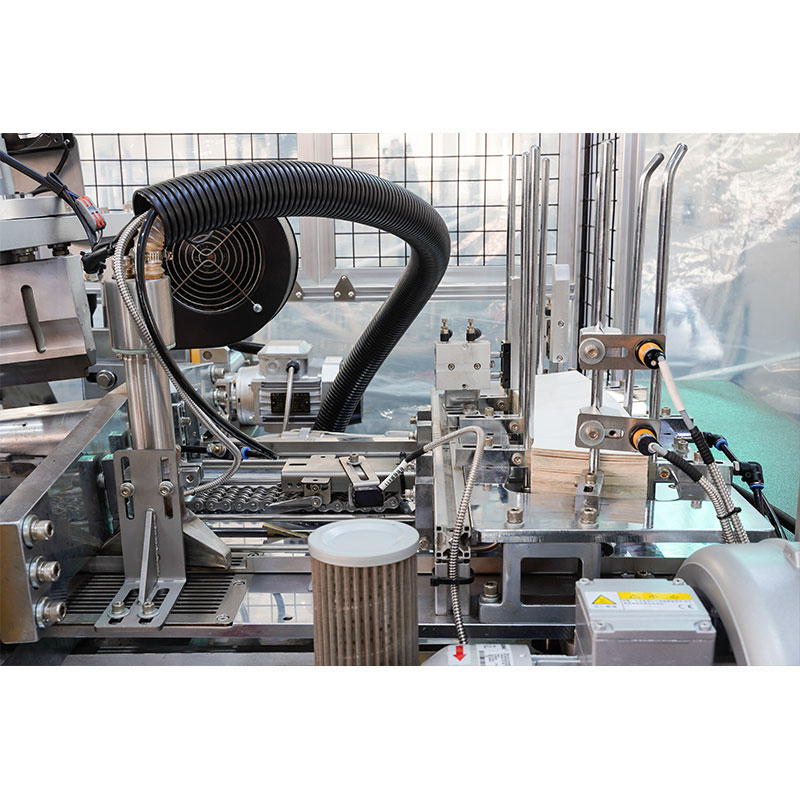

Paper frame

Paper side pre-heating

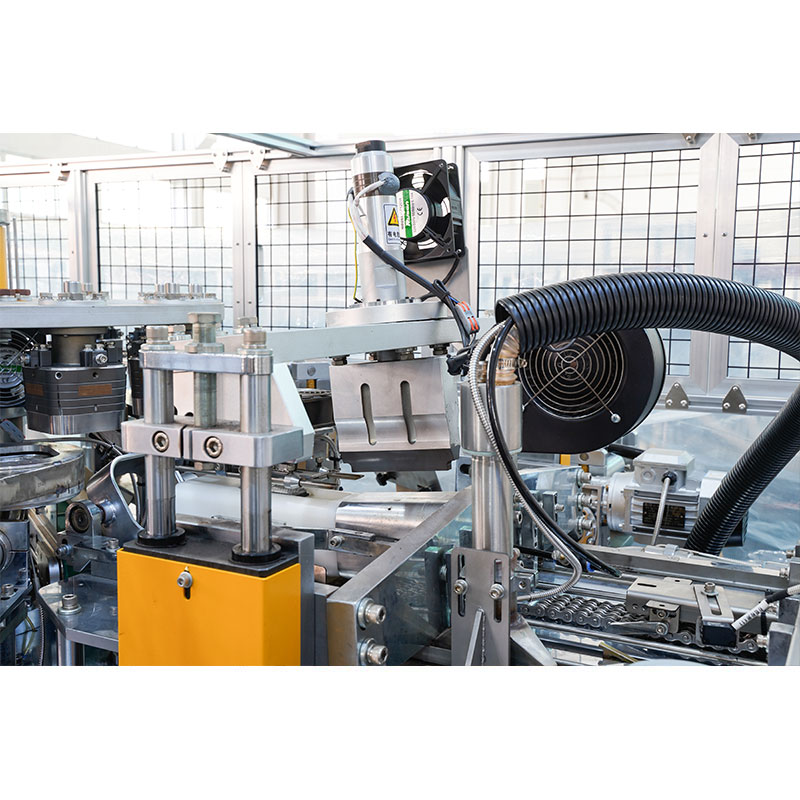

Ultrasonic sealing

Bowl turning robot

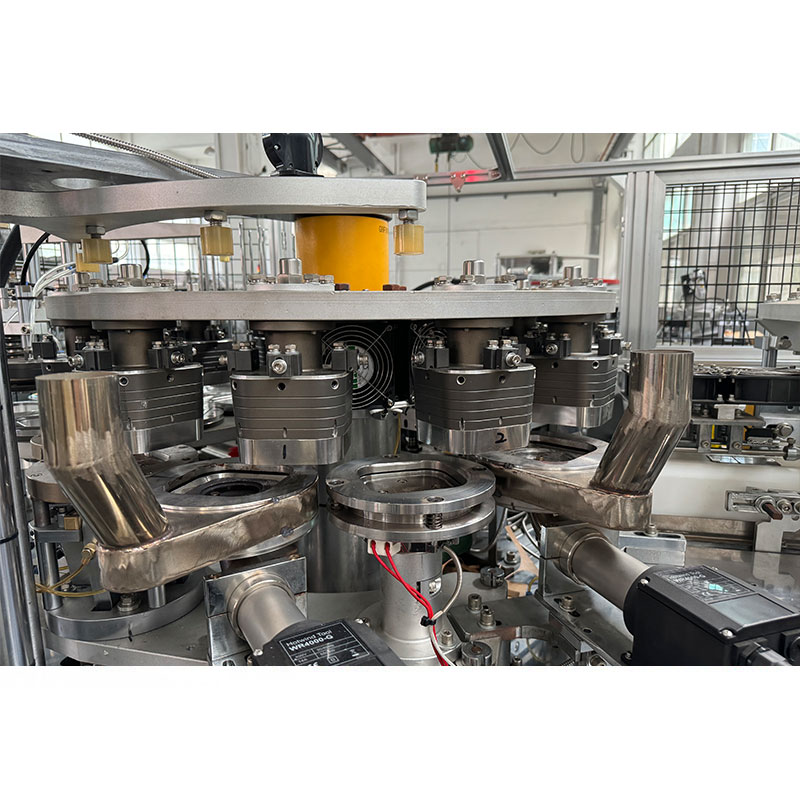

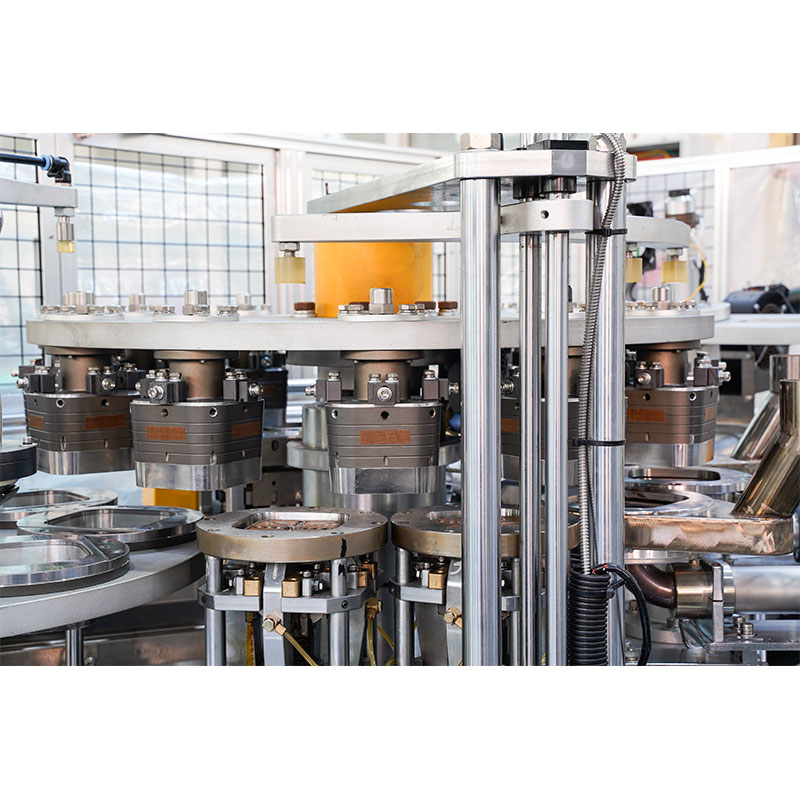

Bottom hot air heaters & curling

Bottom knurling device

Bowl rim oil coating device

Two times top curling

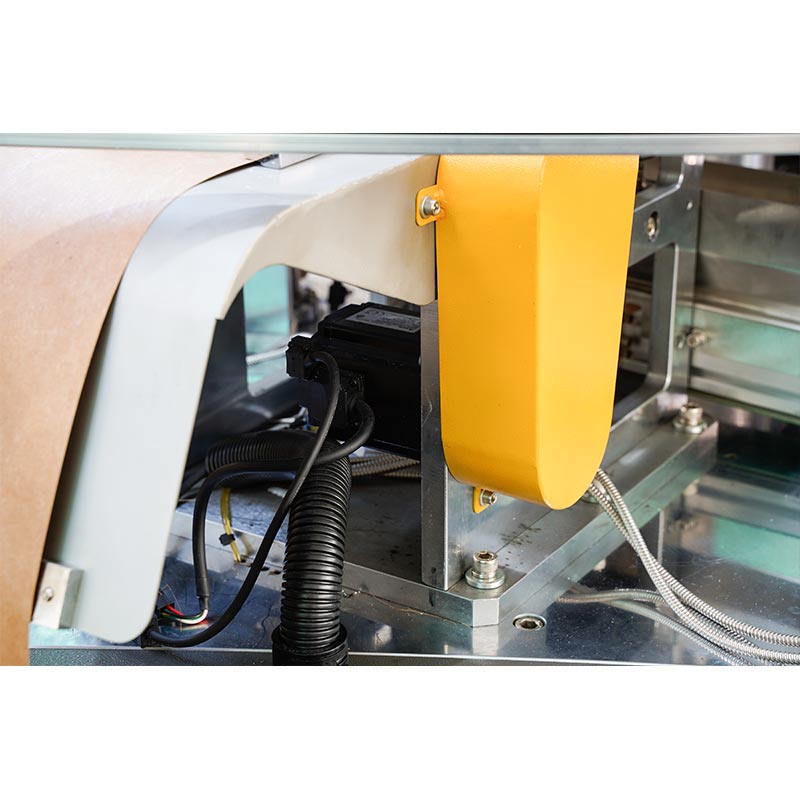

Bottom paper servo feeding

Bottom punching

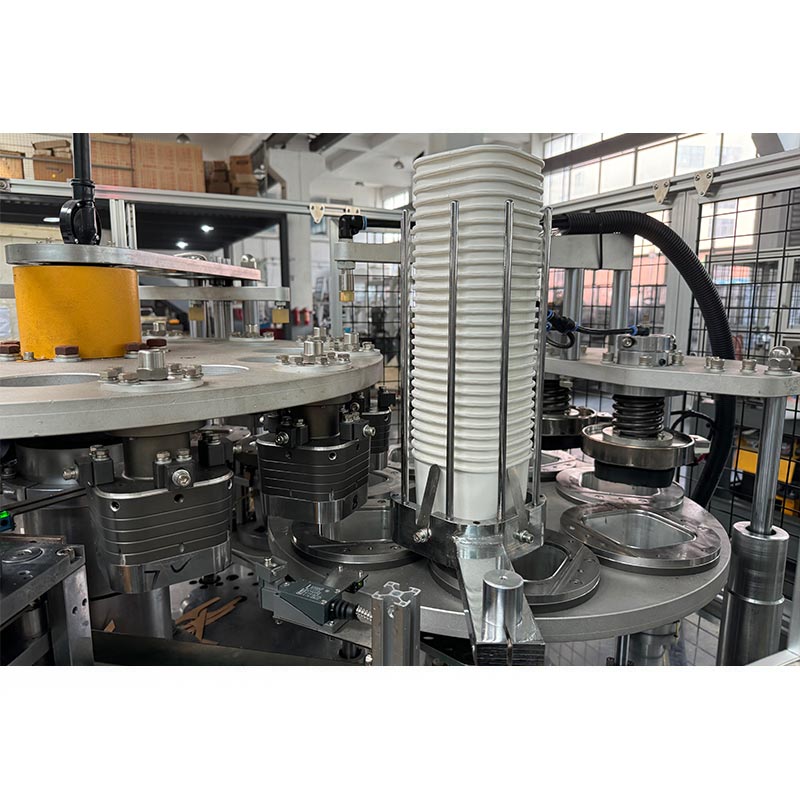

Squre bowls out put

Bottom paper wasting outlet device

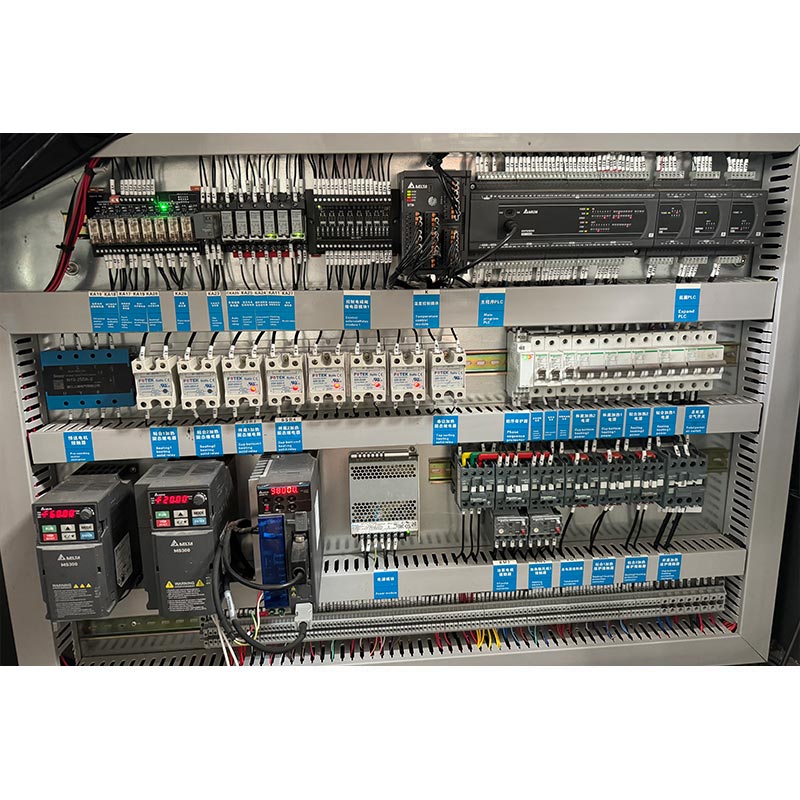

Electrical box

Maintenance & Warranty Guide

Maintenance

Maintenance of MG-GB800-F Rectangle Paper Bowl Forming Machine should be carried out in strict compliance with the maintenance guidance.
1. Every component should be cleaned up carefully.
2. For sanitation and cleanliness, a fixed schedule should be maintained to clean and wipe the machine. Greasy dirt should be removed from the paper, die and roller. The machine must be kept from paper scraps, dust, plastic rolling, etc.
3. Glycerol can be used to lubricate the entire machine.

Warranty

1. We offer a one-year warranty for the MG-GB800-F Rectangle Paper Bowl Forming Machine from the shipment date.
2. The warranty does not cover normally worn components.
3. We will not be responsible for any damage caused by misuse, improper handling, negligent maintenance, intentional injury or other damages.

Package & After-sale Service

Package

All paper bowl forming machines are packaged by wooden case.

After-sale Service

1. A user guide is included to assist with the machine installation and adjustment and help solve problems that may be encountered.
2. The MG-GB800-F Rectangle Paper Bowl Forming Machine will be adjusted one week prior to delivery to make sure it is in perfect condition.
3. Technicians are available to guide the installation and adjustment on site. This service would be at the buyer's expense, which includes the technician's salary ($100 USD/day), traveling expense, accommodation, consulting fee, etc.
4. Free training is available and ongoing until the operator fully understands the operation and maintenance of our paper bowl forming machine. The buyer should cover traveling and accommodation expenses of our technicians.
5. Our company provides wearing parts at no charge for one year.

Warranty Service:

Providing Peace of Mind with a One-Year Warranty

Mingguo stand behind the quality and reliability of our paper cup machines by offering a one-year warranty. This warranty covers the entire machine, giving customers peace of mind and safeguarding their investment. In the unlikely event of any machine malfunctions within the warranty period, our dedicated support team will promptly address the issue and provide necessary repairs or replacements.
