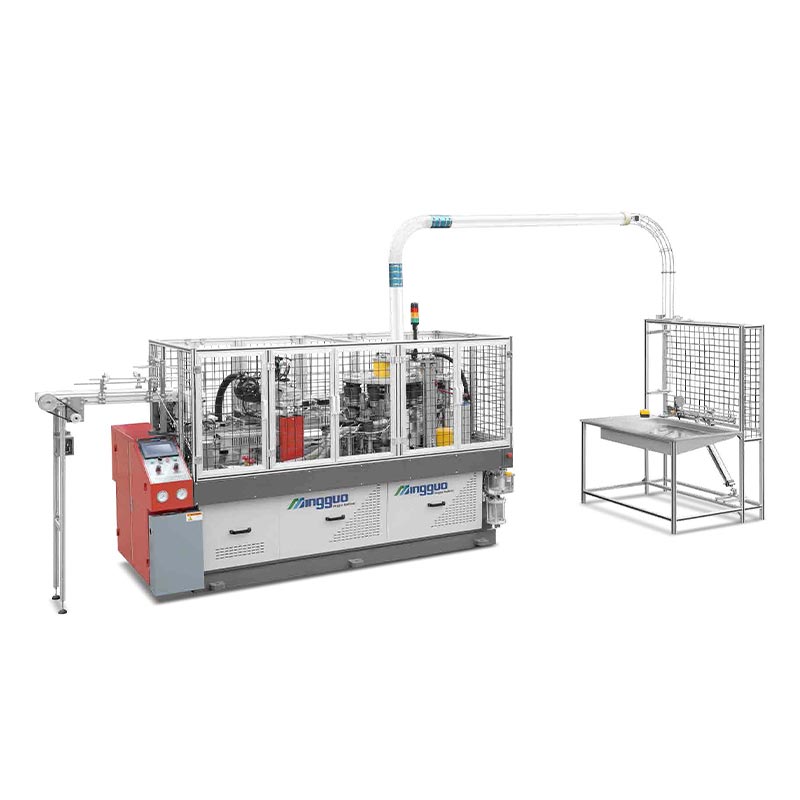

MG-GB800 Paper Bowl Forming Machine

Name: MG-GB800 Paper Bowl Forming Machine
Brand: Mingguo
SKU: 00015
Rating: 4.1 (58 reviews)

Specifications:

4-35oz (100-1000ml) (mold exchangeable)

Top: 100-145mm

Height: 60-120mm

Bottom: 80-125mm

Inquire Now

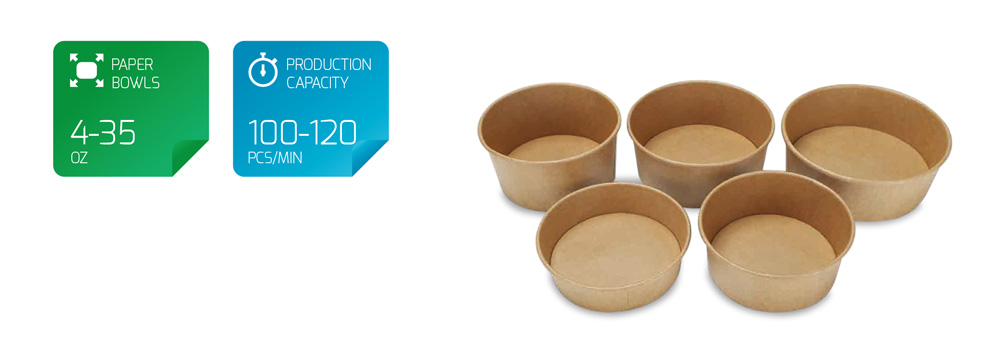

Product Applications

The products produced by mingguo paper bowl forming machine have excellent water resistance and heat resistance and are not easily damaged. They are safe, hygienic, lightweight, convenient and perfect for holding food and drinks. It can be used in public places, hotels, and restaurants, and is a commonly used disposable product.

The paper bowl forming machine has a high degree of automation, can achieve continuous production, has high production efficiency and fast production speed, and can meet the needs of mass production. At the same time, using paper tableware is also in line with the concept of environmental protection and is environmentally friendly.

*The finished product of the smart paper bowl forming machine can be customized.

Main Parts

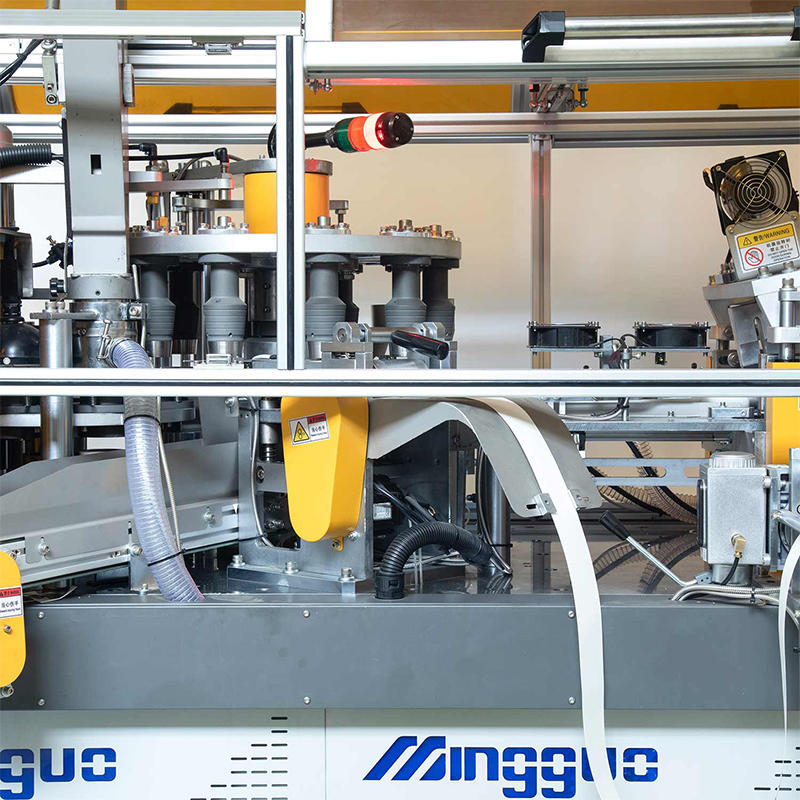

The MG-GB800 paper bowl forming machine is an upgrade product that base on single turnplate paper bowl forming machine. The machine adopts open cam design, interrupted division design, gear drive, longitudinal axis design. So they can reasonably distribute each part function.

The whole paper bowl forming machine adopts Spray lubrication , thus reduce the parts abrade, and it adopts Switzerland leister heater for bowl body and bottom paper sealing ; and silicon oil flow controlled by PLC & electromagnetic valve , in total two course for top curling forming , first course rotate top curling ,and second that heating and forming , thus the bowl forming will be more perfectly.

PLC system controls the whole bowl forming process. By adopting photoelectric failure-detecting system and servo control feeding, our paper bowl forming machine’s reliable performance is guaranteed, thus offering a rapid and stable operation. The paper bowl forming machine can auto-stop working when there is a failure. Thus it can greatly improve operation safety standard and reduce labor force.

Product Specifications

Model	MG-GB800
Paper Cup Specification	4-35oz
	(100-1000ml) (mold exchangeable)
	Top: 100-145mm
	Height: 60-120mm
	Bottom: 80-125mm
Paper Specification	150-350 GSM single/double PE coated paper
Production Capacity	100-120 pcs/min
Voltage	220V/380V 50HZ 3Phases
Average Power	14KW
Air Supply Requirement	Air pressure:0.5-0.8Mpa Air out-put:0.4cbm/min
Total Weight	3200KG
Dimensions	2750x1500x1800mm

Outstanding Advantages

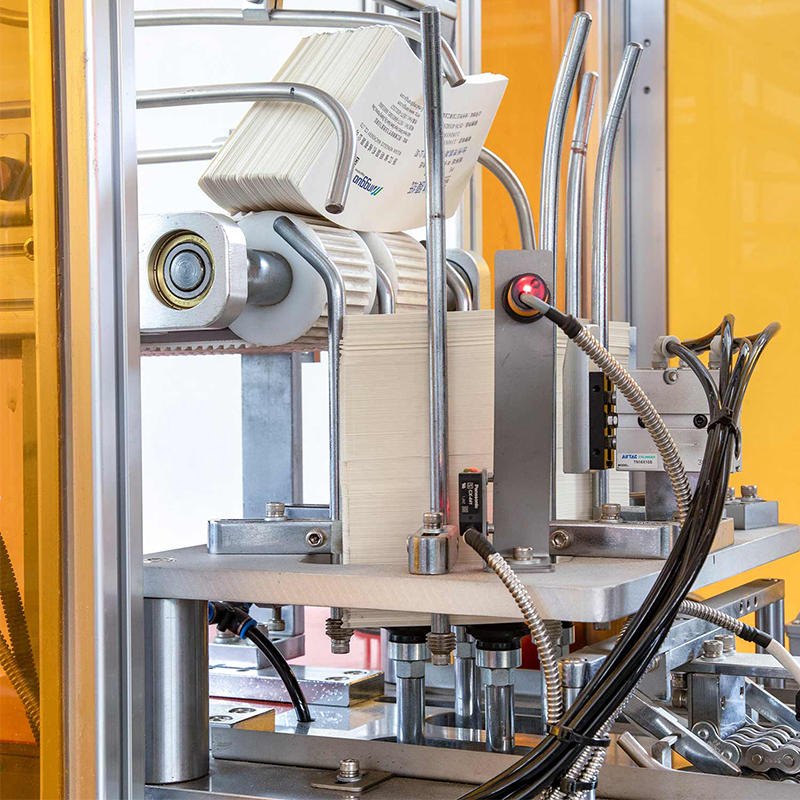

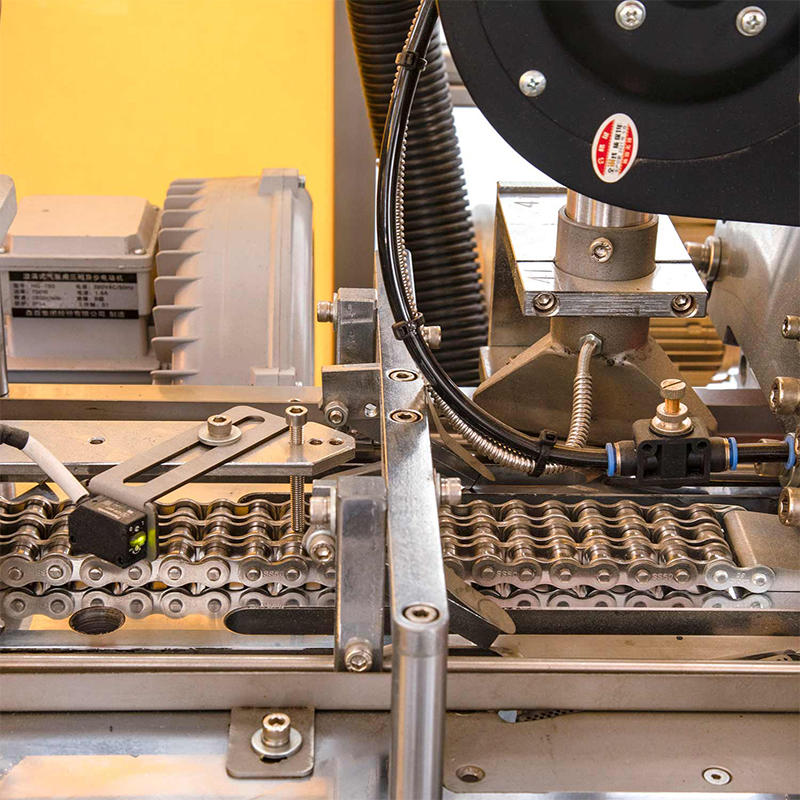

The paper falls to the designated position through the conveyor belt, and the sucker is controlled by the servo motor below.Grab the paper and place it on the chain for transportation.

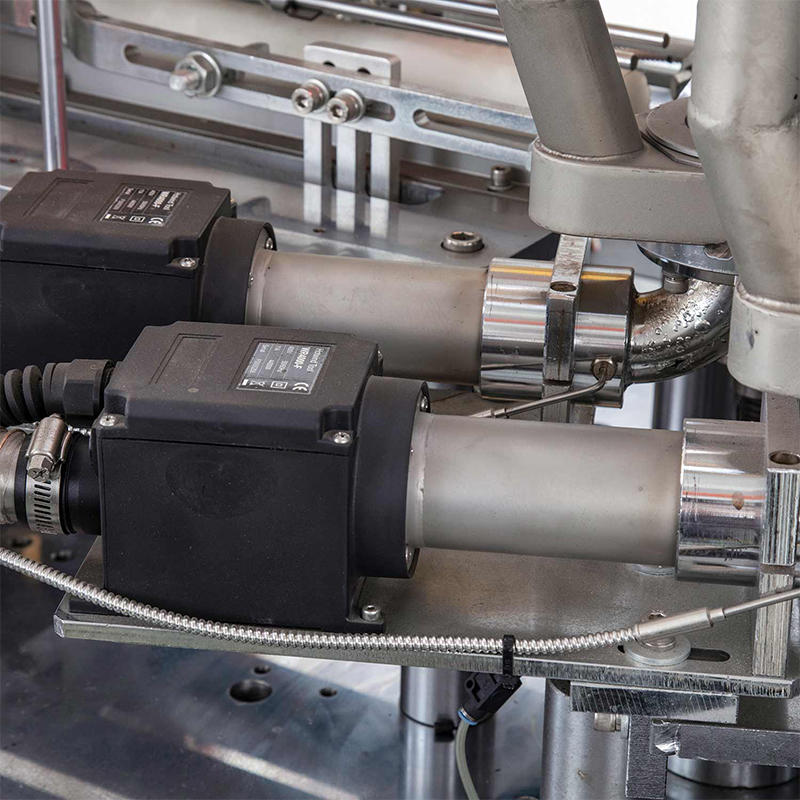

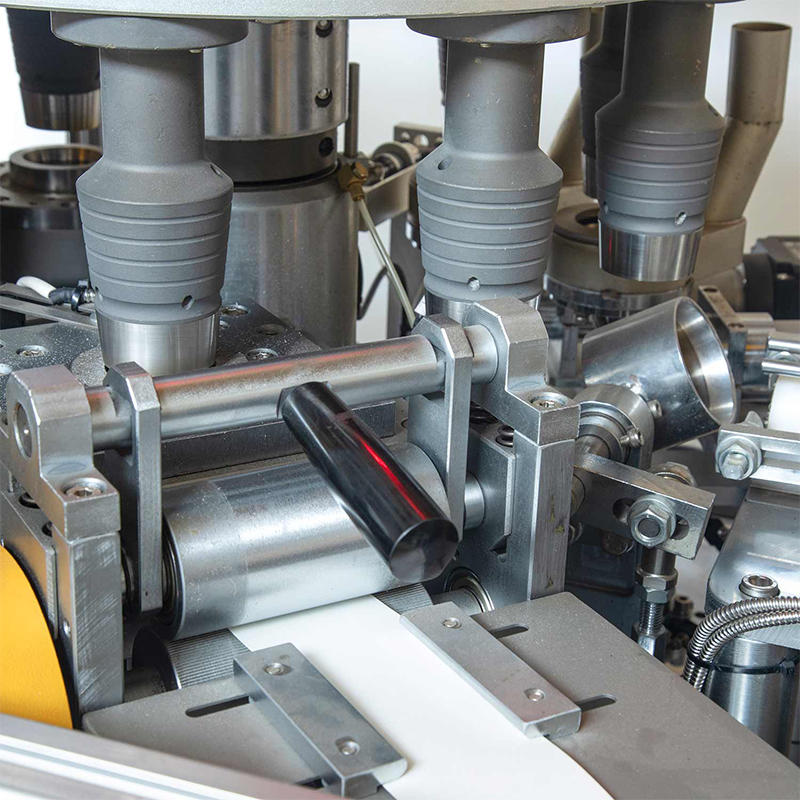

The side of the paper is preheated using Switzerland Leister.

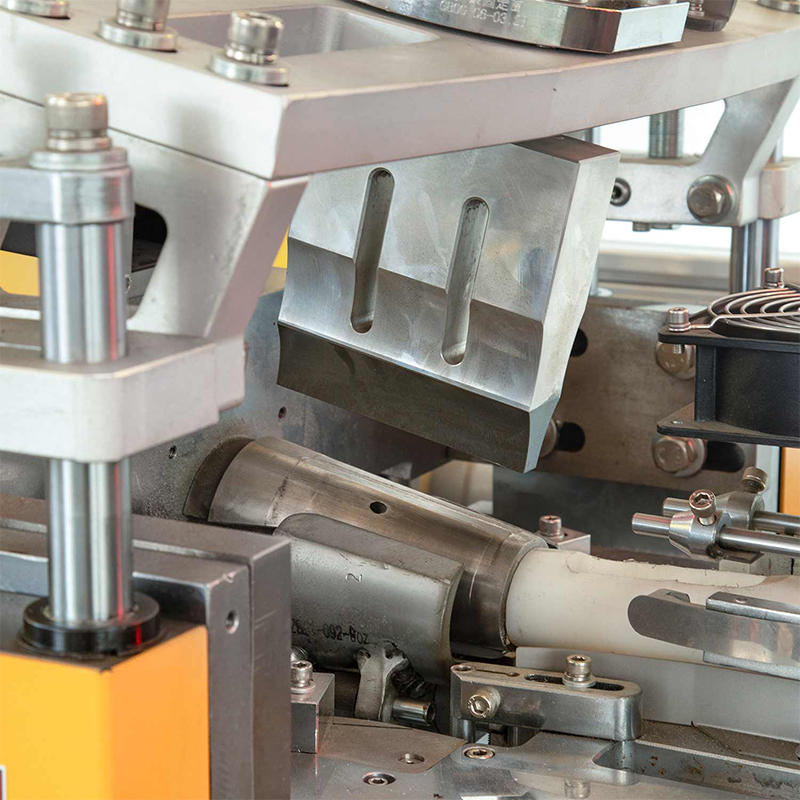

The sides adopt efficient ultrasonic bonding technology.

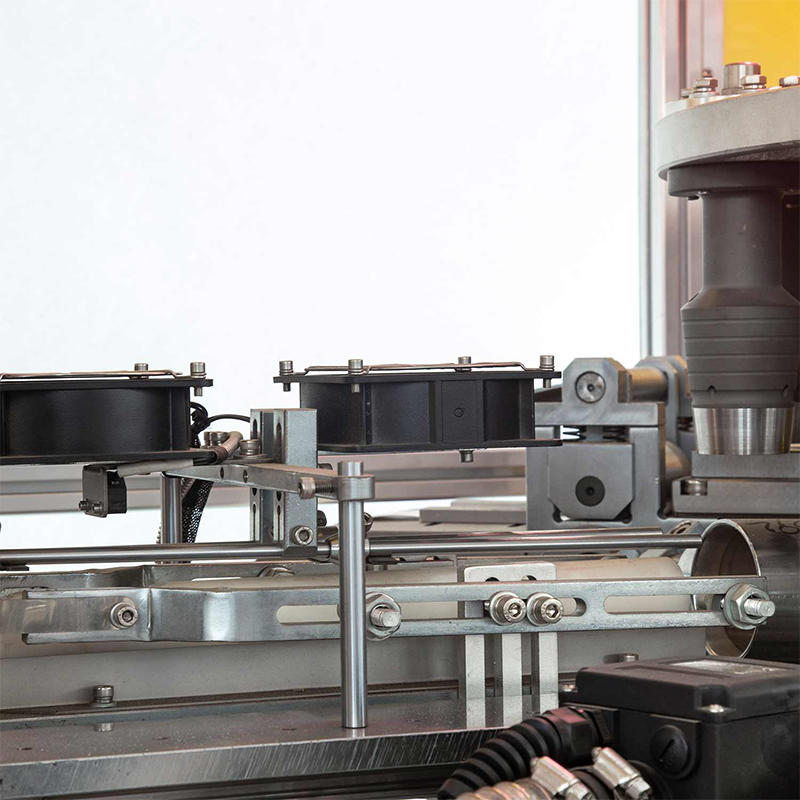

The bowl sleeve pressing device adopts a reversible structure, which is convenient to clean the abnormal bowl sleeve in time when the machine fails.The device is equipped with cooling fans, which makes the bowl sleeve cool down immediately after ultrasonic high-temperature bonding.

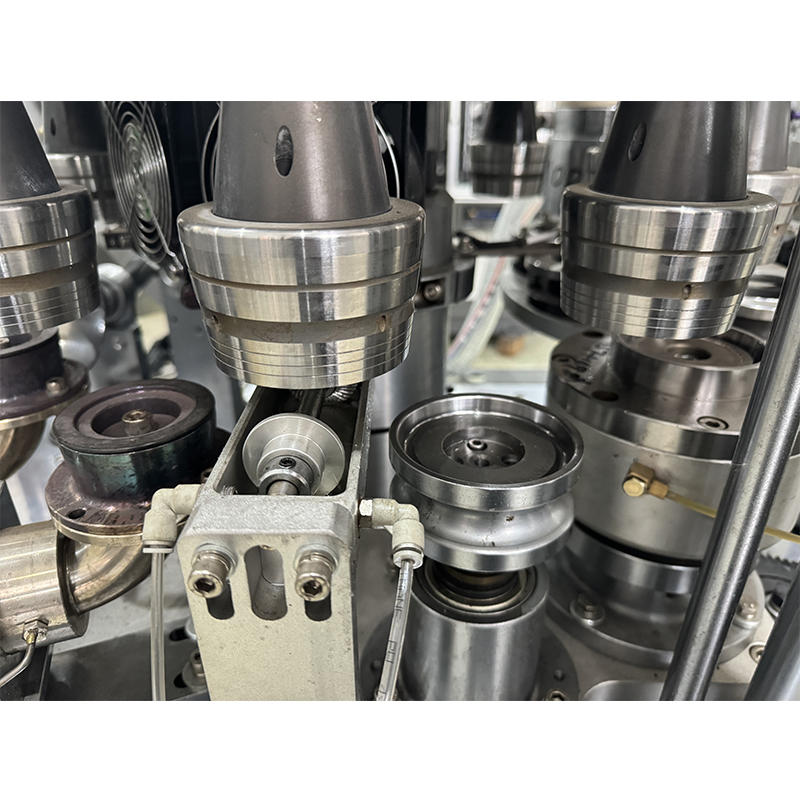

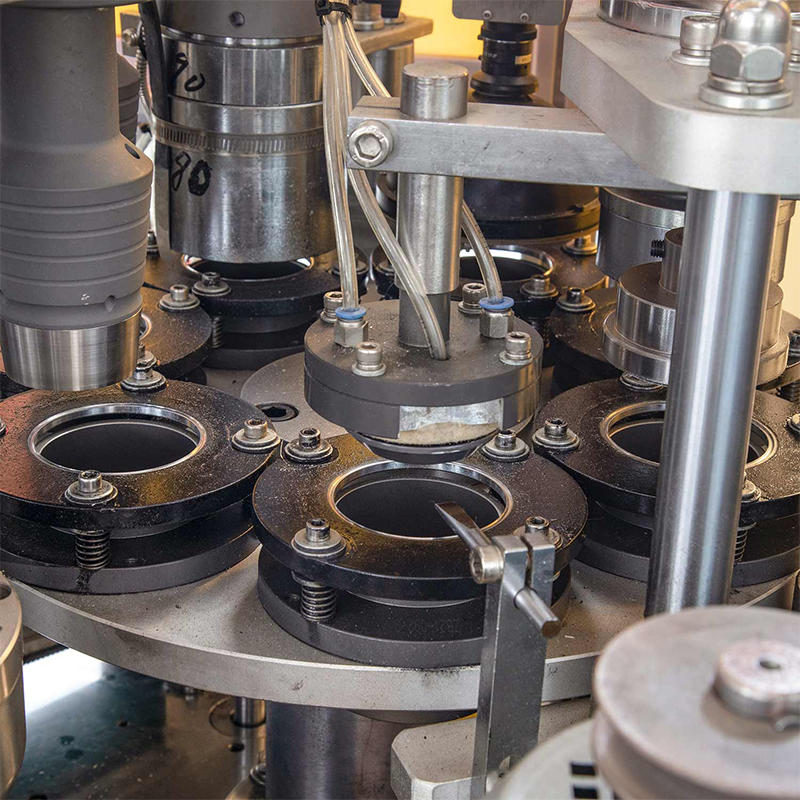

The bowl bottom is formed using dual-station heating and dual-station curling processes, which meets and satisfies the customer's dual requirements for beauty and firmness.

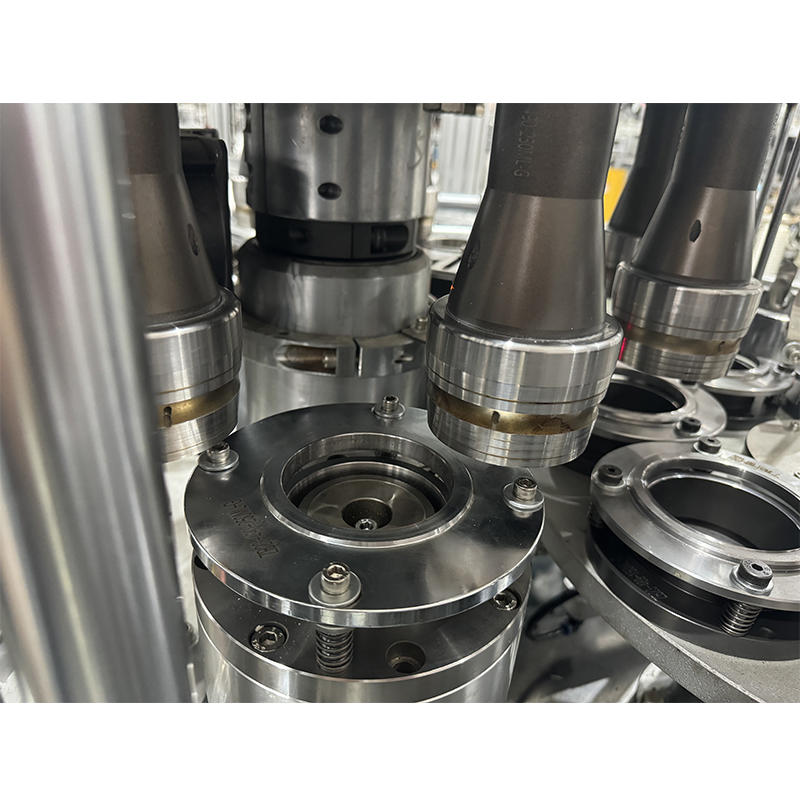

The bowl edge is curled using an efficient and beautiful double-station process.

After the twice hot air gun heating and inward pre-folding, the paper bowl bottom will be completely sealed well by the embossing and sealing device. The device is equipped with an automatic lubrication system, which absorbs the heat generated by the rotating friction of the knurling wheel, making the knurling run more smoothly. If produce paper bowls with double PE coated, we pre-install anti-drop bowls and water circulation cooling devices.But the industrial chiller needs to be purchased additionally.

Fast stamping of bottom paper die.

Advanced labor-saving automatic air rod paper loading and bottom paper feeding device.

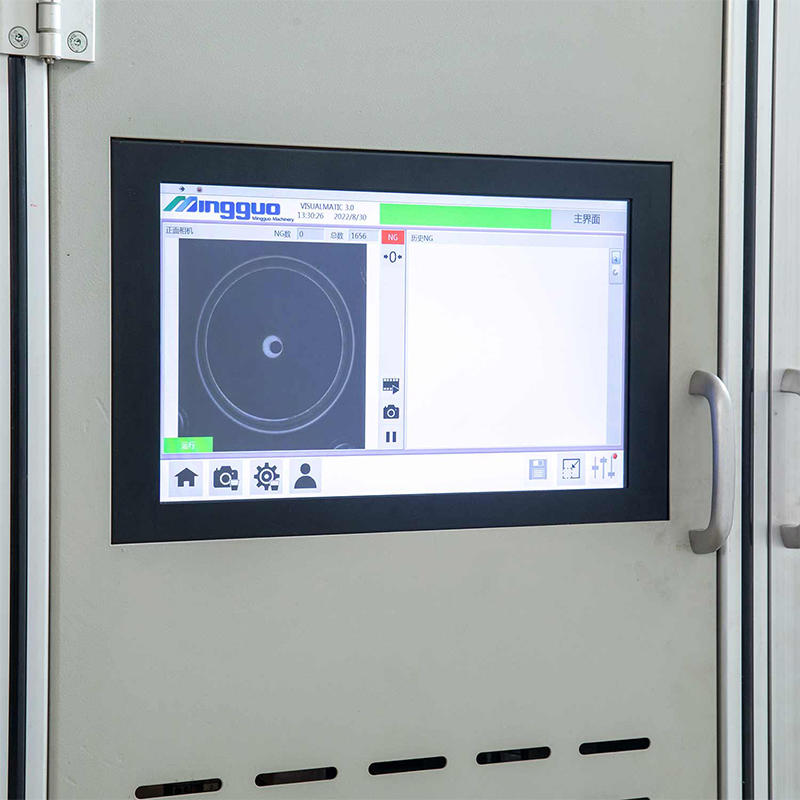

Camero detection system has the function of screening and eliminating bad bowls (stains, cracks and wrinkles inside the bowl), which greatly saves the cost of manual screening.

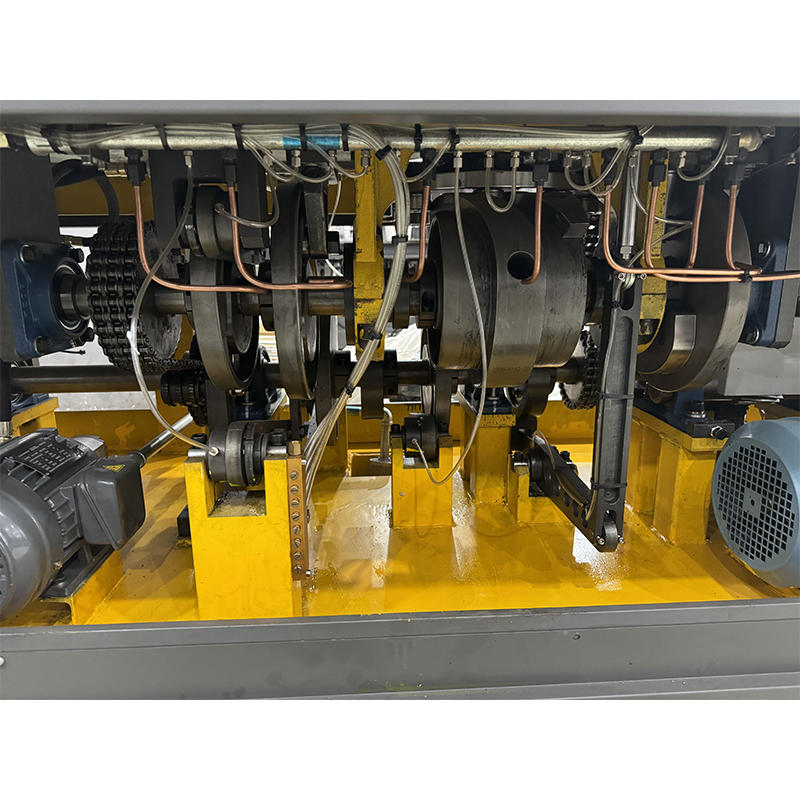

Box structure, filling oil by spray lubrication system, reduce damage, cooling effective, machine can run fast. Due to box structure and insulate bottom&top, per year oil change 2 times (circulate use 6 months). It makes machine easy maintenance&cleaning, also save oil costs. Other factories have to change oil per month for same affect. Due to theirunclosed structure, paper dust&waste will fall down to bottom easily.

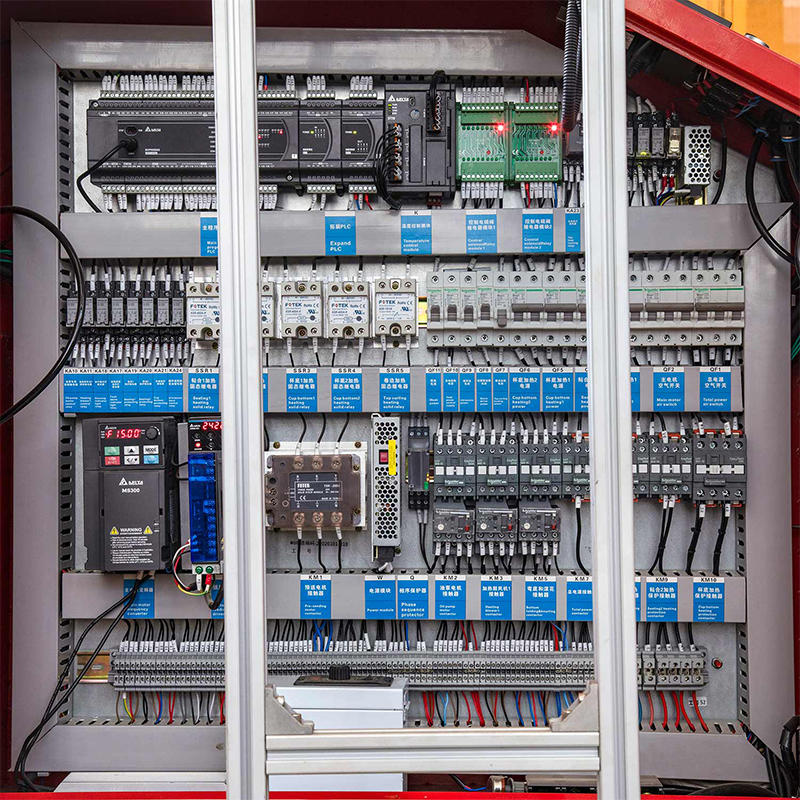

Choose electrical appliances (Schneider) with leading market share, recognition and after-sales service.

Maintenance & Warranty Guide

Maintenance

Maintenance of MG-GB800 Paper Bowl Forming Machine should be carried out in strict compliance with the maintenance guidance.
1. Every component should be cleaned up carefully.
2. For sanitation and cleanliness, a fixed schedule should be maintained to clean and wipe the paper bowl forming machine. Greasy dirt should be removed from the paper, die and roller. The machine must be kept from paper scraps, dust, plastic rolling, etc.
3. Glycerol can be used to lubricate the entire smart paper bowl forming machine.

Warranty

1. We offer a one-year warranty for the MG-GB800 Paper Bowl Forming Machine from the shipment date.
2. The warranty does not cover normally worn components.
3. We will not be responsible for any damage caused by misuse, improper handling, negligent maintenance, intentional injury or other damages.

Package & After-sale Service

Package

All Automatic Paper Bowl Machines are packaged by wooden case.

After-sale Service

1. A user guide is included to assist with the automatic Paper Bowl Machine installation and adjustment and help solve problems that may be encountered.
2. The MG-GB800 Paper Bowl Forming Machine will be adjusted one week prior to delivery to make sure it is in perfect condition.
3. Technicians are available to guide the installation and adjustment on site. This service would be at the buyer's expense, which includes the technician's salary ($100 USD/day), traveling expense, accommodation, consulting fee, etc.
4. Free training is available and ongoing until the operator fully understands the operation and maintenance of our machine. The buyer should cover traveling and accommodation expenses of our technicians.
5. Our company provides wearing parts at no charge for one year.

Warranty Service:

Providing Peace of Mind with a One-Year Warranty

Mingguo stand behind the quality and reliability of our paper cup machines by offering a one-year warranty. This warranty covers the entire machine, giving customers peace of mind and safeguarding their investment. In the unlikely event of any machine malfunctions within the warranty period, our dedicated support team will promptly address the issue and provide necessary repairs or replacements.
