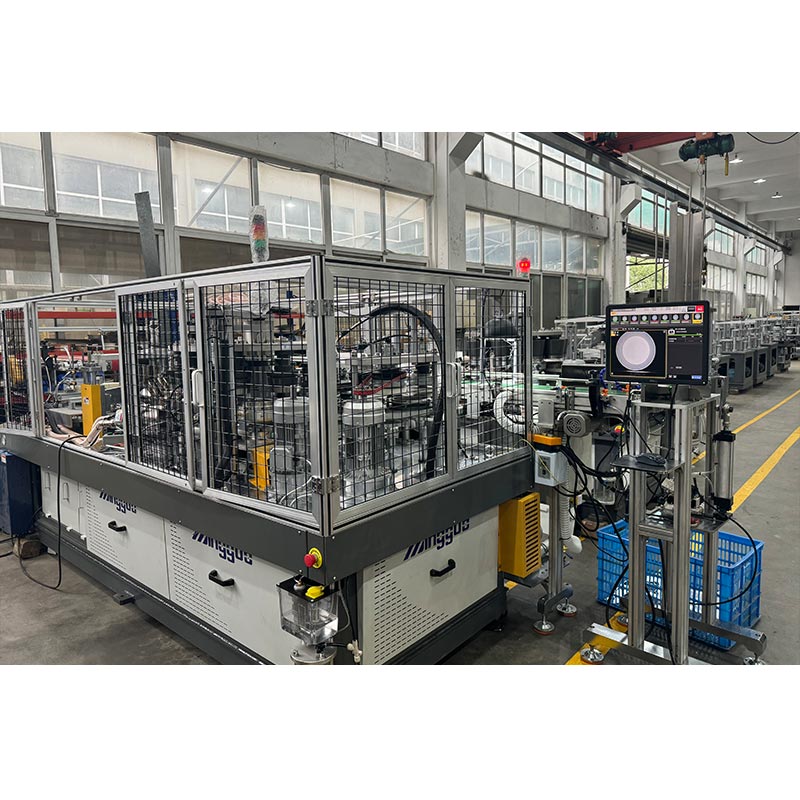

MG-GT800 Paper Bucket Machine

Name: MG-GT800 Paper Bucket Machine
Brand: Mingguo
SKU: 00011
Rating: 4.1 (56 reviews)

Specifications:

40-130oz (1100-2500ml) (mold exchangeable)

T: 165-210mm

H: 65-170mm

B:145-180mm

Inquire Now

Product Applications

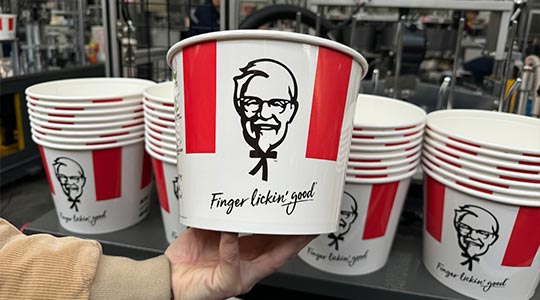

Our MG-GT800 paper bucket machine mainly produces popcorn buckets and some other common paper buckets.
The automatic paper bucket forming machine has a high degree of automation, can achieve continuous production, has high production efficiency and fast production speed, and can meet the needs of mass production. At the same time, the use of paper barrels is also in line with the concept of environmental protection and is environmentally friendly.

*The finished product of the smart paper bucket machine can be customized.

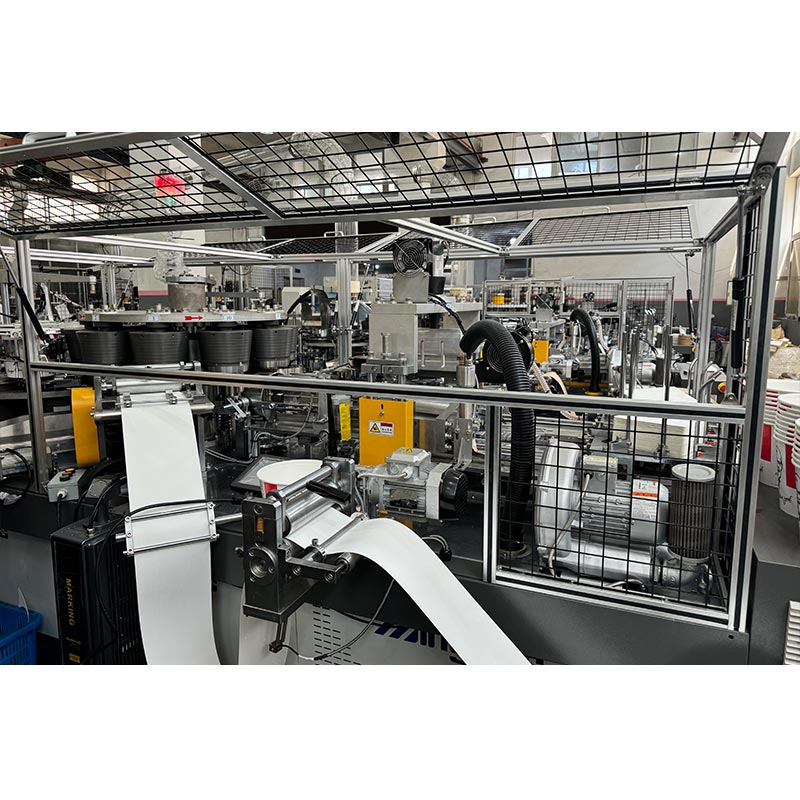

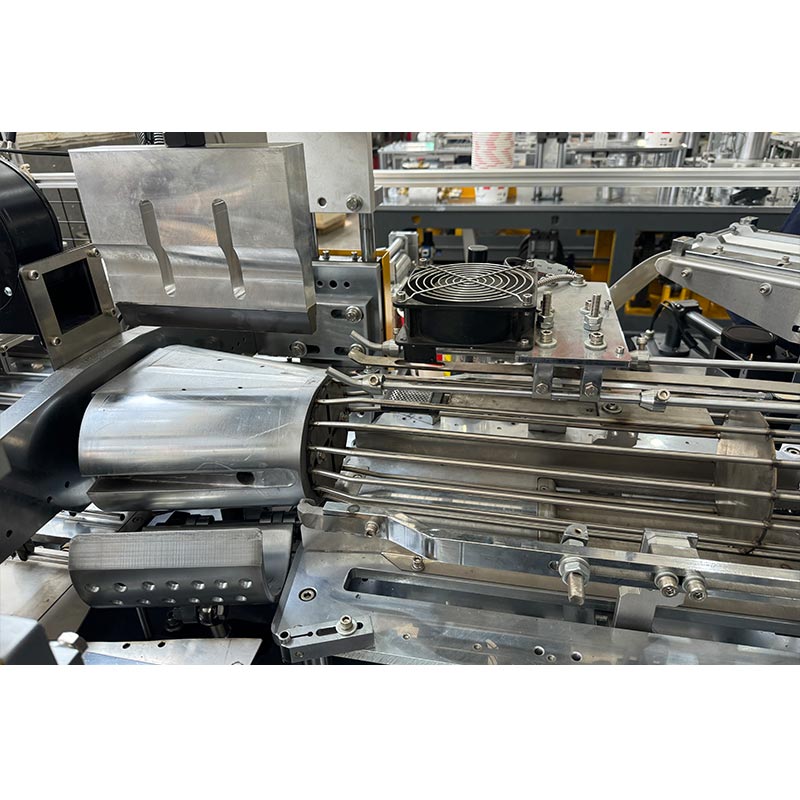

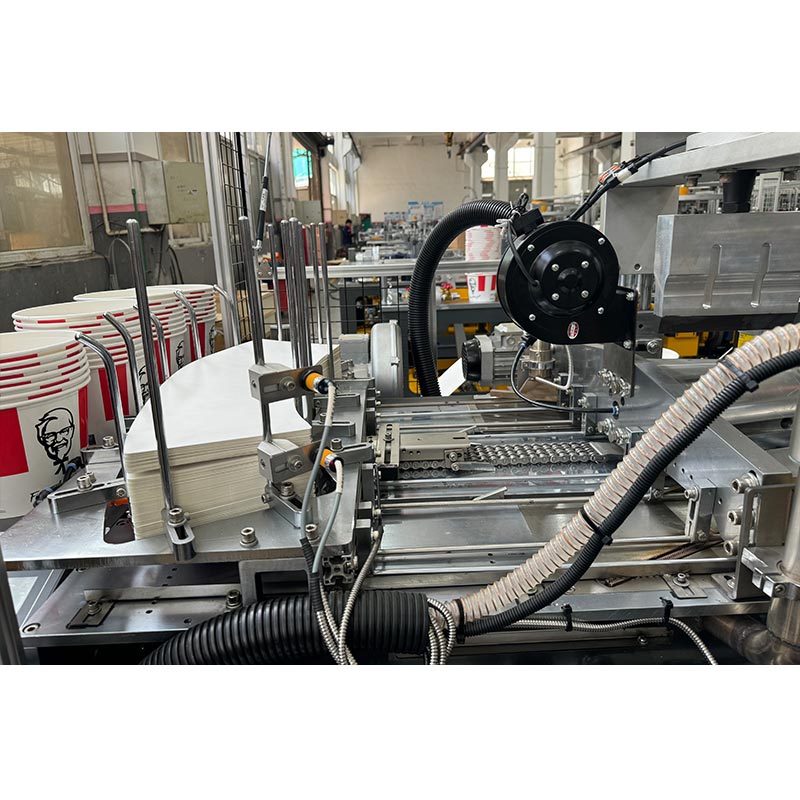

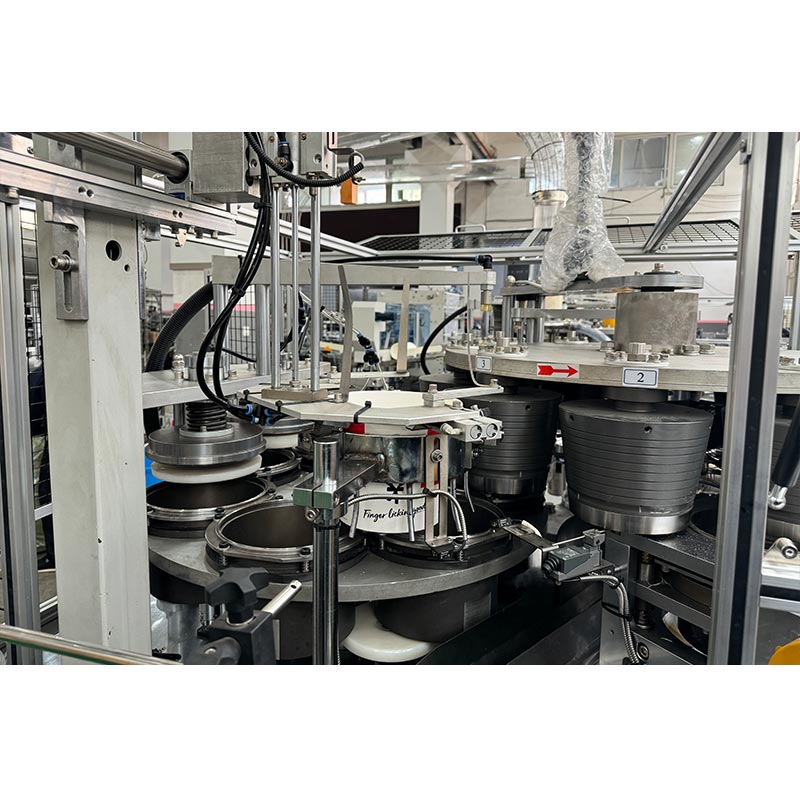

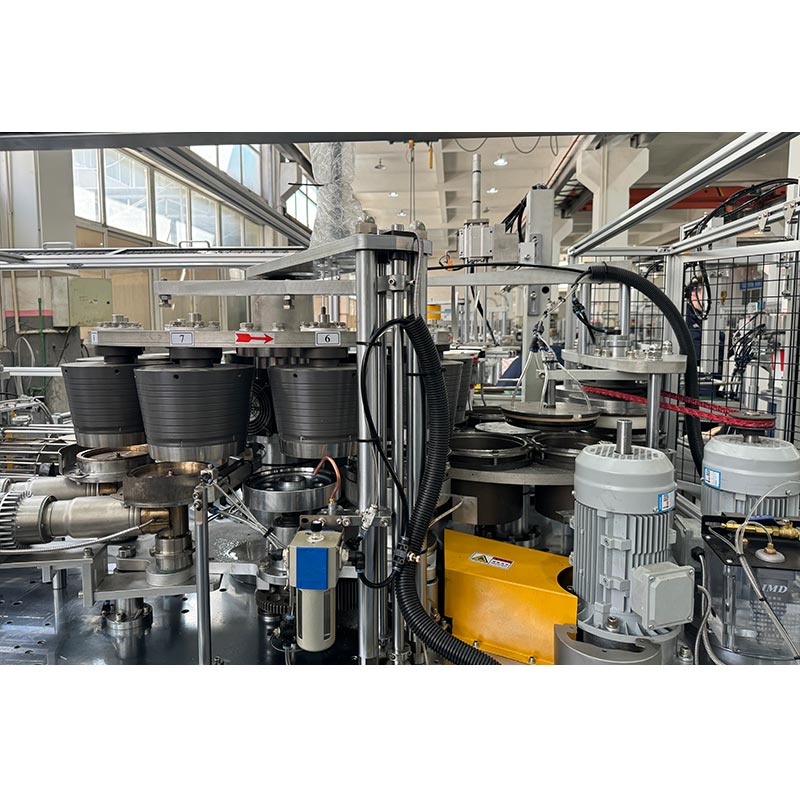

Main Parts

Detailed Information of Paper Bucket Machine

Cup capacity: 40-130oz
Production capacity: 80-100 pcs/min
Power Source: 220V/380V 50HZ
Total Power: 12KW
Total Weight: 3300KG
Air consumption: 1m3/min
Note: Customized service is available

Product Specifications

Model	MG-GT800
Paper Cup Specification	40-130oz
	(1100-2500ml)(mold exchangeable)
	T: 165-210mm
	H: 65-170mm
	B:145-180mm
Paper Specification	190-500 GSM single/double PE coated paper
Production Capacity	80-100 pcs/min
Voltage	220V/380V 50HZ 3Phases
Average Power	12KW
Air Supply Requirement	Air pressure:1Mpa Air out-put:0.8cbm/min
Total Weight	3300KG
Dimensions	3600x1900x2100mm

Outstanding Advantages

Maintenance & Warranty Guide

Maintenance

Maintenance of MG-GT800 Paper Bucket Machine should be carried out in strict compliance with the maintenance guidance.
1. Every component should be cleaned up carefully.
2. For sanitation and cleanliness, a fixed schedule should be maintained to clean and wipe the machine. Greasy dirt should be removed from the paper, die and roller. The machine must be kept from paper scraps, dust, plastic rolling, etc.
3. Glycerol can be used to lubricate the entire machine.

Warranty

1. We offer a one-year warranty for the MG-GT800 automatic paper bucket forming machine from the shipment date.
2. The warranty does not cover normally worn components.
3. We will not be responsible for any damage caused by misuse, improper handling, negligent maintenance, intentional injury or other damages.

Package & After-sale Service

Package

All automatic paper bucket machines are packaged by wooden case.

After-sale Service

1. A user guide is included to assist with the high speed paper bucket machine installation and adjustment and help solve problems that may be encountered.
2. The GT-800 Paper Bucket Machine will be adjusted one week prior to delivery to make sure it is in perfect condition.
3. Technicians are available to guide the installation and adjustment on site. This service would be at the buyer's expense, which includes the technician's salary ($100 USD/day), traveling expense, accommodation, consulting fee, etc.
4. Free training is available and ongoing until the operator fully understands the operation and maintenance of our automatic paper bowl forming machine. The buyer should cover traveling and accommodation expenses of our technicians.
5. Our company provides wearing parts at no charge for one year.

Warranty Service:

Providing Peace of Mind with a One-Year Warranty

Mingguo stand behind the quality and reliability of our paper cup machines by offering a one-year warranty. This warranty covers the entire machine, giving customers peace of mind and safeguarding their investment. In the unlikely event of any machine malfunctions within the warranty period, our dedicated support team will promptly address the issue and provide necessary repairs or replacements.
