3 Phase Multicolor Paper Cup Machine

Name: 3 Phase Multicolor Paper Cup Machine
Brand: Mingguo
SKU: 00042
Rating: 4.1 (71 reviews)

The 3 Phase Multicolor Paper Cup Machine uses 150-350 GSM single/double-sided PE coated paper, with a production capacity of up to 110-120 cups per minute. It is suitable for 220V/380V 50HZ three-phase voltage and has an average power of 8 kilowatts, making your production more efficient and stable.

Specifications:

2.5-10oz (75-300ml) (mold exchangeable)

Top: 55-90mm

Height: 50-100mm

Bottom: 55-75mm

Inquire Now

Product Applications

Our 3 Phase Multicolor Paper Cup Machine is used to produce paper cups. Intelligent control paper pup machine is suitable for 220V/380V 50HZ three-phase voltage and has an average power of 8 kilowatts, making your production more efficient and stable.

Mingguo paper cup making machine is mainly used in the paper cup manufacturing industry, including fast food shops, coffee shops, beverage shops, restaurants, supermarkets and other places. It is often used to hold hot drinks, cold drinks, juice, milk tea, ice cream and other food and beverages.

*The finished product of the smart paper cup making machine can be customized.

Main Parts

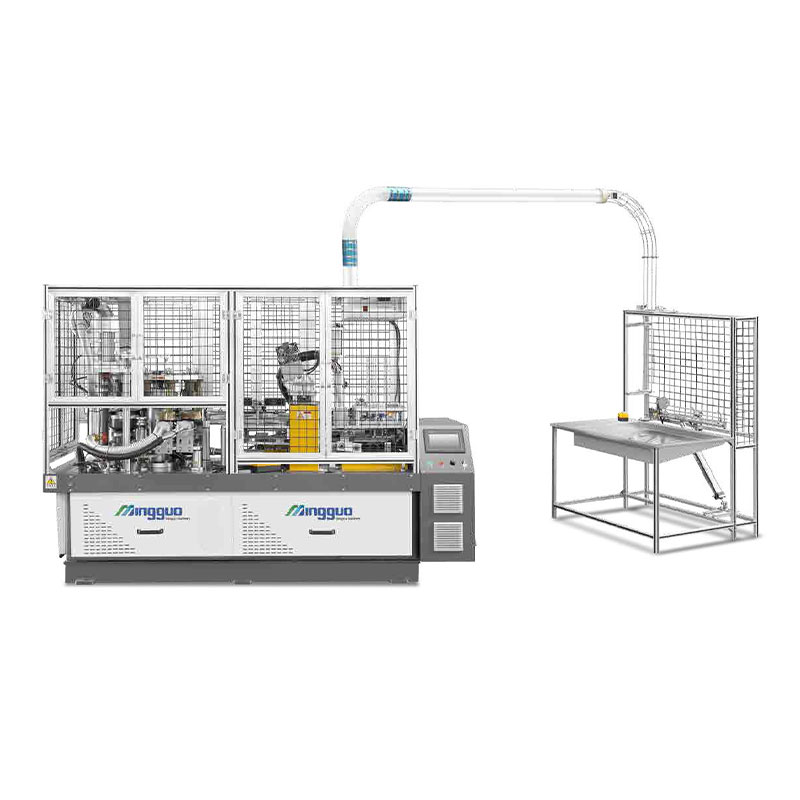

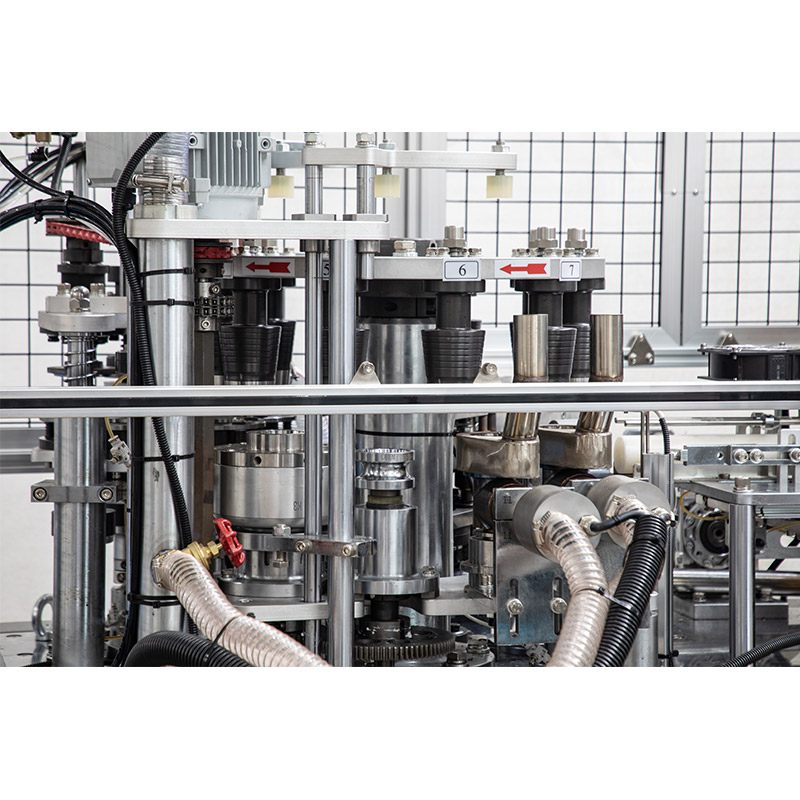

This 3 phase multicolor paper cup machine is an upgraded version of the single-plate automated paper cup making machine. It utilizes two turnplates to complete the entire process of making a paper cup.

With a stable running speed of up to 110-120 pcs/min, this high speed paper cup making machine is equipped with a PLC control system that ensures the smooth operation of the cup forming process. Additionally, it features a photoelectric failure-detecting system and a hot air device for cup bottom sealing, further enhancing the machine's efficiency and reliability.

Product Specifications

Model	MG-C600M
Paper Cup Specification	2.5-10oz
	(75-300ml) (mold exchangeable)
	Top: 55-90mm
	Height: 50-100mm
	Bottom: 55-75mm
Paper Specification	150-350 GSM single/double PE coated paper
Production Capacity	110-120 pcs/min
Voltage	220V/380V 50HZ 3Phases
Average Power	8KW
Air Supply Requirement	Air pressure:0.4Mpa Air out-put:0.4cbm/min
Total Weight	2400KG
Dimensions	2350x1450x1700mm

Outstanding Advantages

The automatic paper fan input convenor, Saves a lot of labor costs and shortens the number of paper placements.

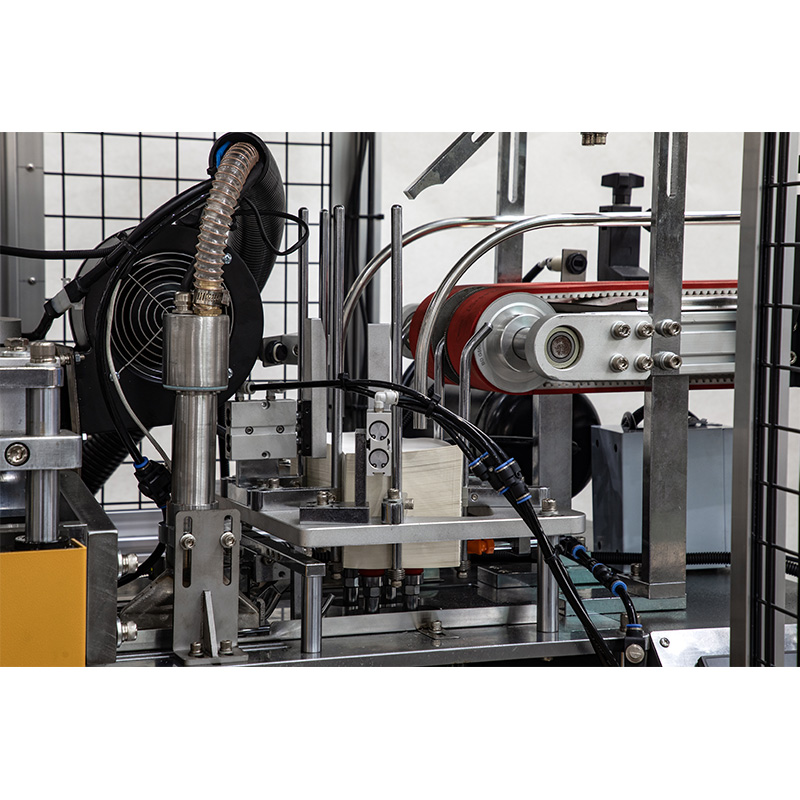

The sheet paper will be sucked down and pushed forward, and the two sides of the paper are preheated by the Leister heater, so that the side seam of the cup sleeve is bonded better under the action of ultrasonic waves during the high-speed operation of the machine.

The cup sleeve and the bottom of the cup are heated by two Switzerland Leister heaters, the heating effect is well, and the coating on the bottom of the cup is more fully softened.

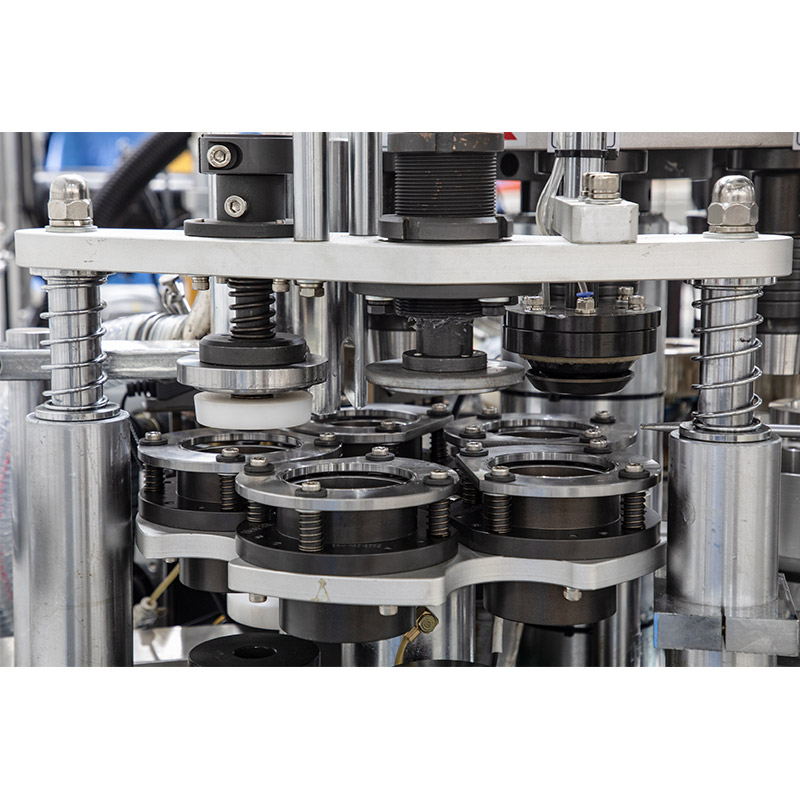

After the twice hot air gun heating and inward pre-folding, the paper cup bottom will be completely sealed well by the embossing and sealing device. If produce paper cups with double PE coated, we pre-install anti-drop cups and water circulation cooling devices.But the industrial chiller needs to be purchased additionally.

The machine adopts twice curling, Compared with once curling, twice curling is more suitable on high speed machine which makes the cup curling more compact and better-looking.

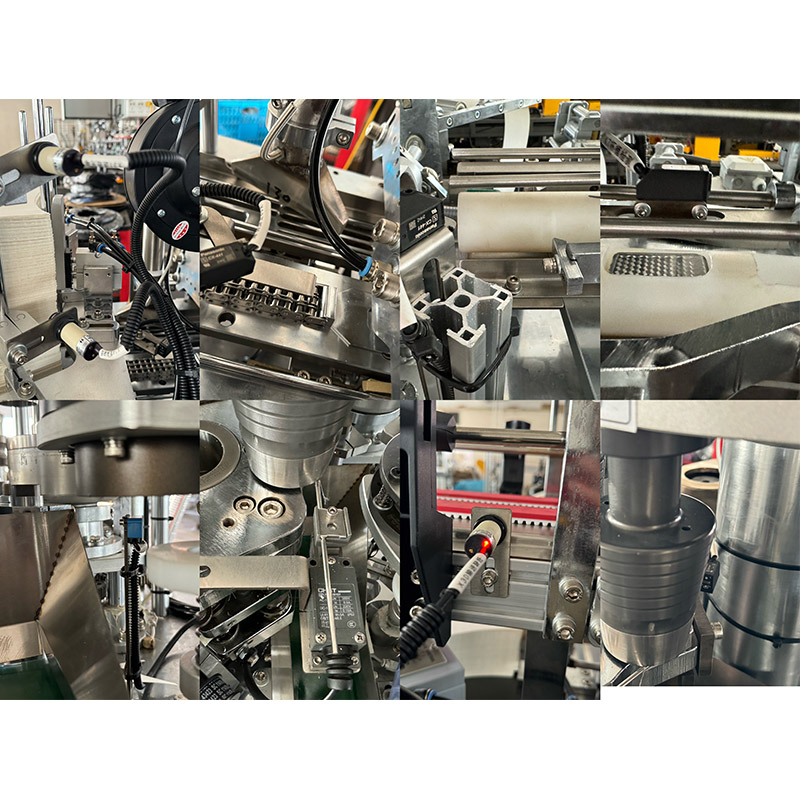

Adopting Panasonic photoelectric detection system, the machine will alarm when there is an abnormality, and the stop cup will be automatically discharged through the bottom paper waste discharge device.

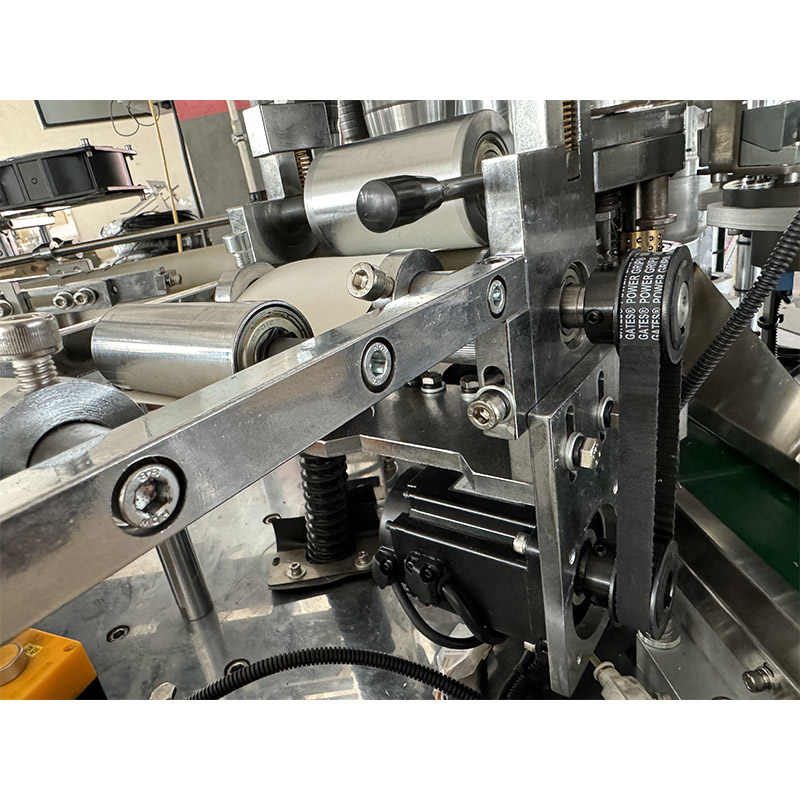

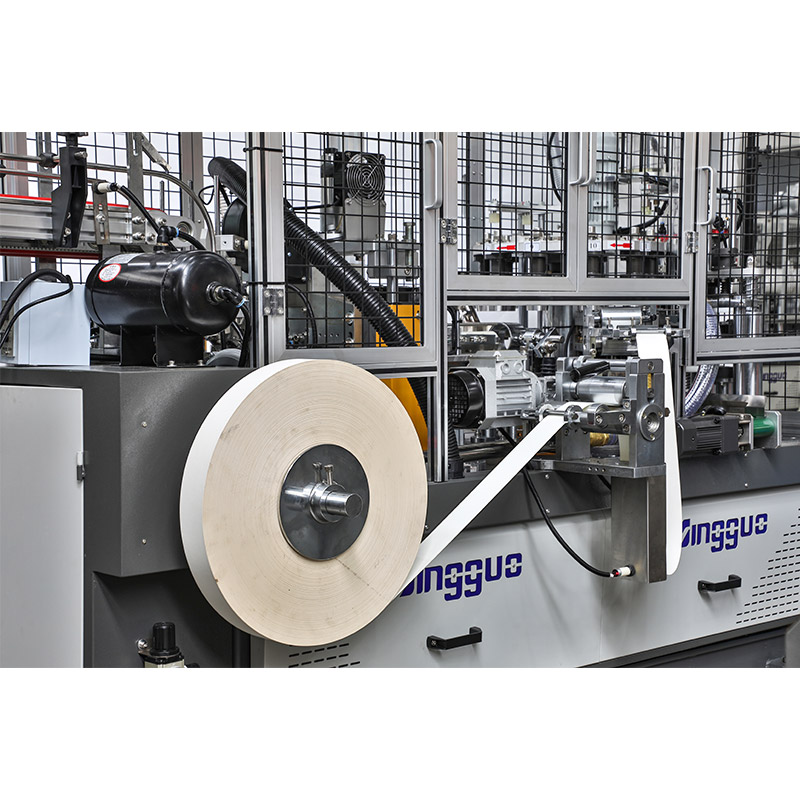

The bottom paper is controlled by servo motor, making the feeding much more stable.

The bottom paper conveying device is equipped with a brake, which eliminates the phenomenon of paper interruption during the production process.

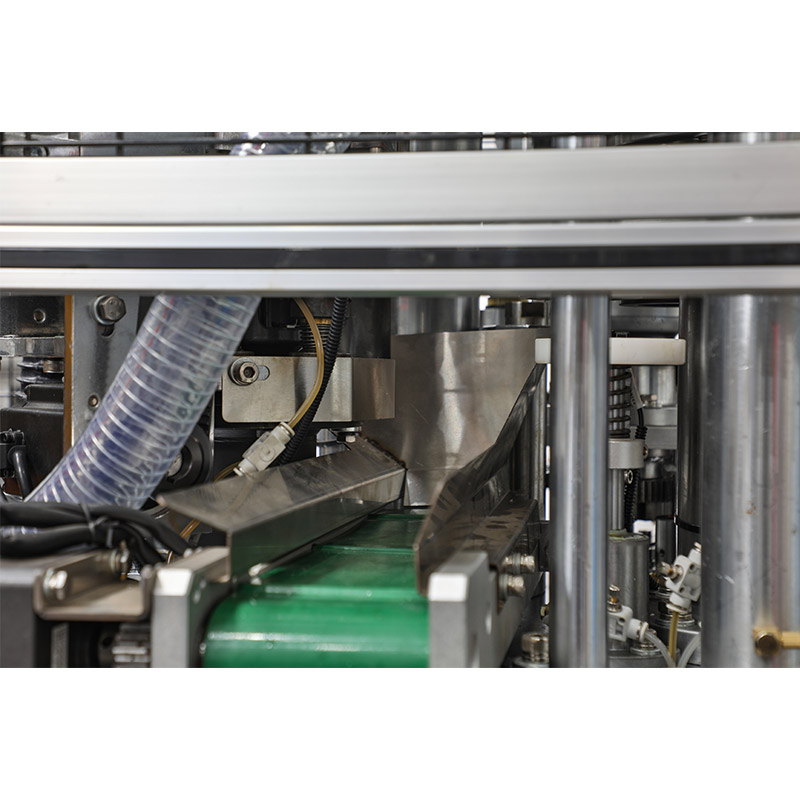

The Waste paper outlet.

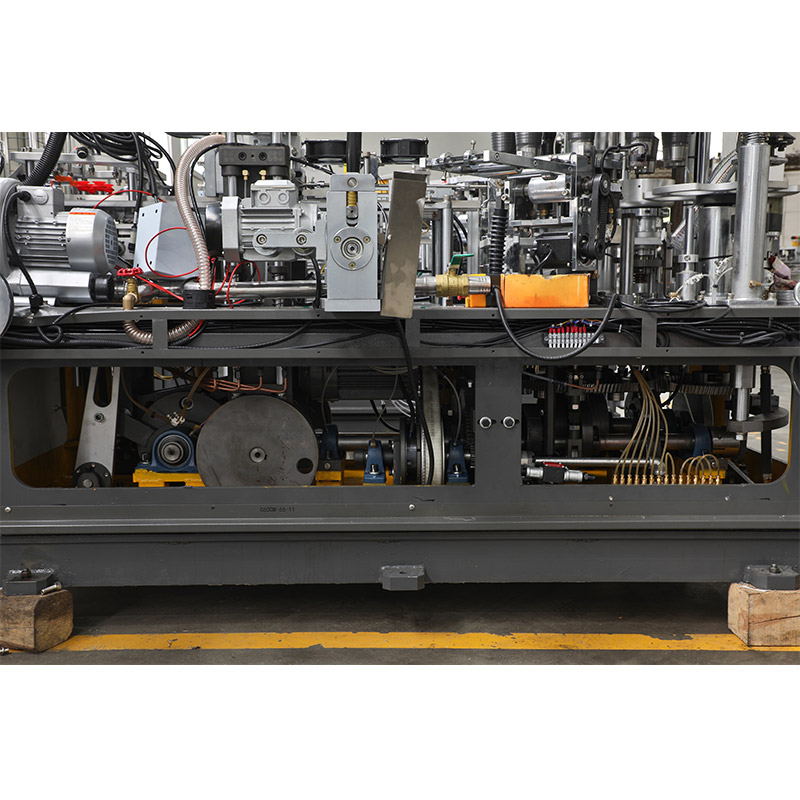

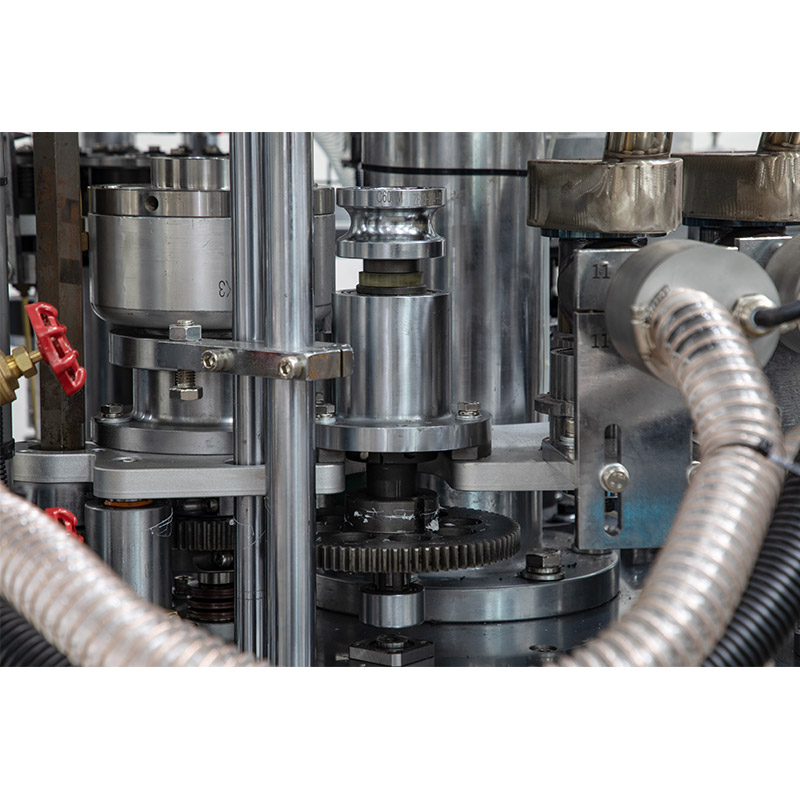

In transmission, a gear drive with longitudinal axis is used to resolve problems of chain shaking and unstability. and the whole machine is equipped with automatic lubrication system which can reduce damage and cooling effective.

Maintenance & Warranty Guide

Maintenance

Maintenance of three phase automatic paper cup machine should be carried out in strict compliance with the maintenance guidance.
1. Every component should be cleaned up carefully.
2. For sanitation and cleanliness, a fixed schedule should be maintained to clean and wipe the machine. Greasy dirt should be removed from the paper, die and roller. The automatic paper cup making machine must be kept from paper scraps, dust, plastic rolling, etc.
3. Glycerol can be used to lubricate the entire paper cup making machine.

Warranty

1. We offer a one-year warranty for the 3 phase automatic paper cup machine from the shipment date.
2. The warranty does not cover normally worn components.
3. We will not be responsible for any damage caused by misuse, improper handling, negligent maintenance, intentional injury or other damages.

Package & After-sale Service

Package

All paper cup making machines are packaged by wooden case.

After-sale Service

1. A user guide is included to assist with the paper cup making machine installation and adjustment and help solve problems that may be encountered.
2. The three phase automatic paper cup machine will be adjusted one week prior to delivery to make sure it is in perfect condition.
3. Technicians are available to guide the installation and adjustment on site. This service would be at the buyer's expense, which includes the technician's salary ($100 USD/day), traveling expense, accommodation, consulting fee, etc.
4. Free training is available and ongoing until the operator fully understands the operation and maintenance of our automated paper cup making machine. The buyer should cover traveling and accommodation expenses of our technicians.
5. Our company provides wearing parts at no charge for one year.

Warranty Service:

Providing Peace of Mind with a One-Year Warranty

Mingguo stand behind the quality and reliability of our paper cup machines by offering a one-year warranty. This warranty covers the entire machine, giving customers peace of mind and safeguarding their investment. In the unlikely event of any machine malfunctions within the warranty period, our dedicated support team will promptly address the issue and provide necessary repairs or replacements.
