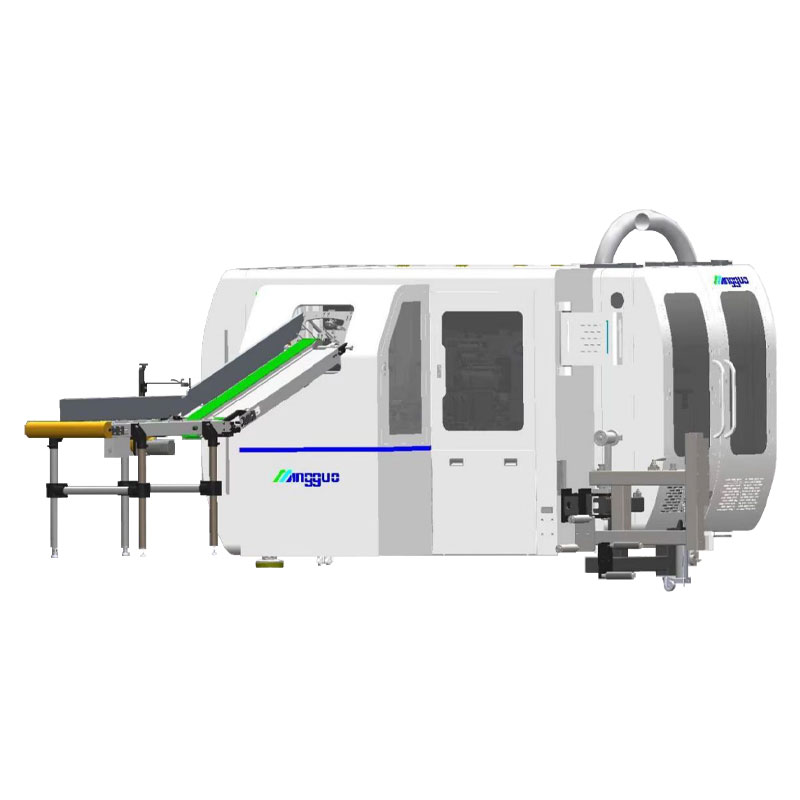

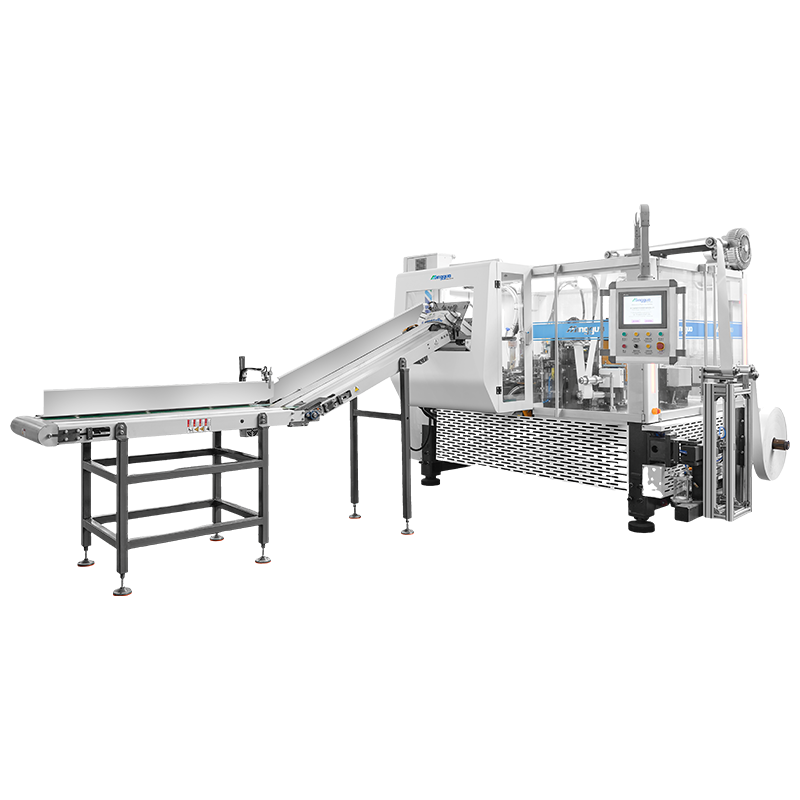

MG-1000 High-speed Horizontal Paper Cup Forming Machine

Name: MG-1000 High-speed Horizontal Paper Cup Forming Machine
Brand: Mingguo
SKU: 00049
Rating: 4.1 (75 reviews)

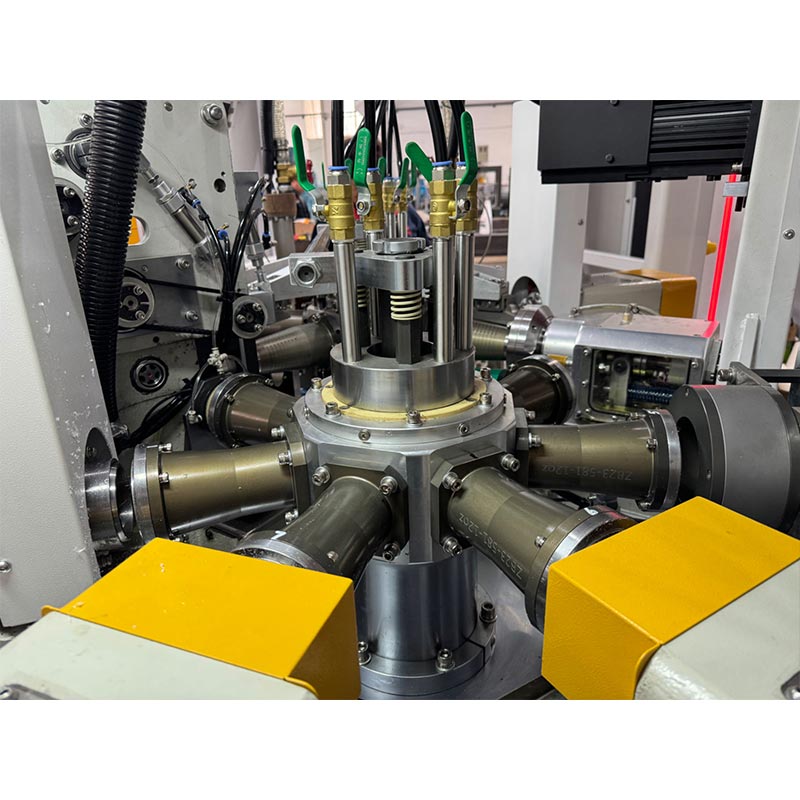

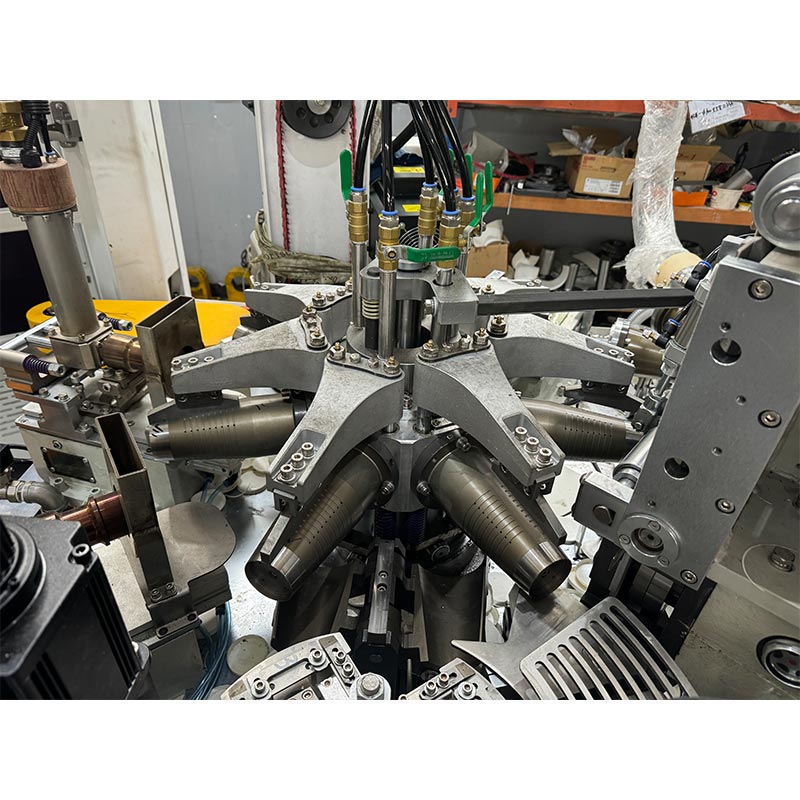

The MG-1000 high-speed intelligent paper cup machine adopts the platform integrated layout, the platform is the mold forming part, the molding process is distributed around the three independently driven turret, set in the way of 4-7-7. The main transmission part under the platform is connected by globular indexing CAM + gear. The transmission parts are lubricated with closed spray. The whole machine is controlled by PLC+ servo motion, full photoelectric tracking monitoring, servo feed control. Suitable for 8-22oz cold/hot paper cups. With its innovative design concept and advanced technical features, as well as precise control, stable performance and user-friendly interface, the MG-1000 will be the most advantageous and efficient paper cup production equipment choice in the future.

Specifications:

200-240pcs/min

8-22oz(250-650ml)

Inquire Now

MG-1000 High-speed Horizontal Paper Cup Forming Machine

Video

With its innovative design concept and advanced technical features, as well as precise control,stableperformance and user-friendly interface, the MG-1000 will be the most advantageous and efficient paper cupproduction equipment choice in the future.

*The finished product of the smart paper cup forming machine can be customized.

Main Parts

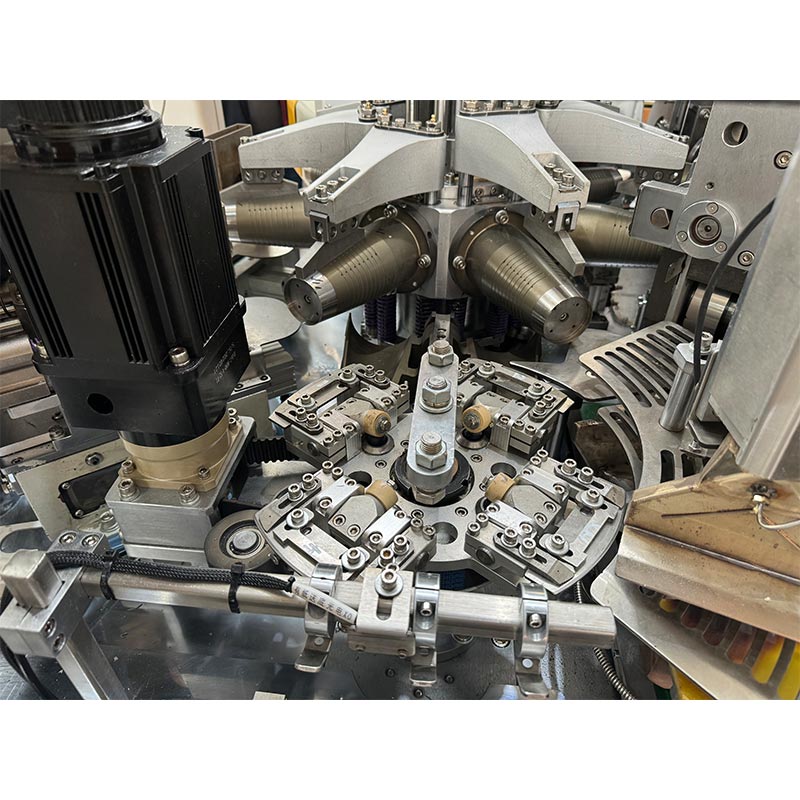

1. The MG-1000 High-speed Horizontal Paper Cup Forming Machine also applies many well designed techniques and devices: spray lubrication is mainly applied to decrease the abrasion of components; the imported Lister heater is utilized for sealing cup body and bottom; silicon oil flow is precisely controlled by an electromagnetic valve. This high-yield paper cup forming machine conducts two forming steps, rotating curling and heating& forming. By doing so, it produces cups with high strength and uniform size.

2.The paper cup forming machine with the assistance of a CCD image detecting system (optionally), cups that are broken, stained or defective can be picked out. This effective system achieves no manual intervention and reduces secondary contamination of product.

3.When it comes to PLC control, by utilizing a photoelectric sensor and servo control feeder, the paper cup forming machine ensures a high speed and stable operation and achieves a significant decrease in labor cost. In addition, this automated paper cup forming machine will automatically shut down when any malfunction is detected.

4. This kind of paper cup forming machine equals to one piece of equipment that integrates all cup making procedures, including paper feeding, sealing, cup bottom feeding, heating, knurling, cup-mouth curling, discharging, testing and counting. MG-1000 High speed paper cup forming machine is an ideal choice for making cups of 50-135mm high.

Product Specifications

Model	MG-G1000
Paper Cup Specification	8-22oz (250-650ml) Top: 60-100mm Height: 70-180mm Bottom: 50-80mm
Paper specification	200-350 GSM single/double PE/PLA coated paper
Production Capacity	200-240pcs/min
Voltage	220V/380V 50HZ 3Phases
Average Power	45KW (Total Power: 65KW)
Air supply requirement	Compressed air: 0.6-0.8Mpa,Air outlet: 0.6m³/min
Total Weight	7500KG
Machine Package Size	(L×W×H): 3300×2100×2250mm
Collector Table Package Size	(L×W×H):1250×1200×1950mm

Outstanding Advantages

ROTARY PAPER SUCTION STATION

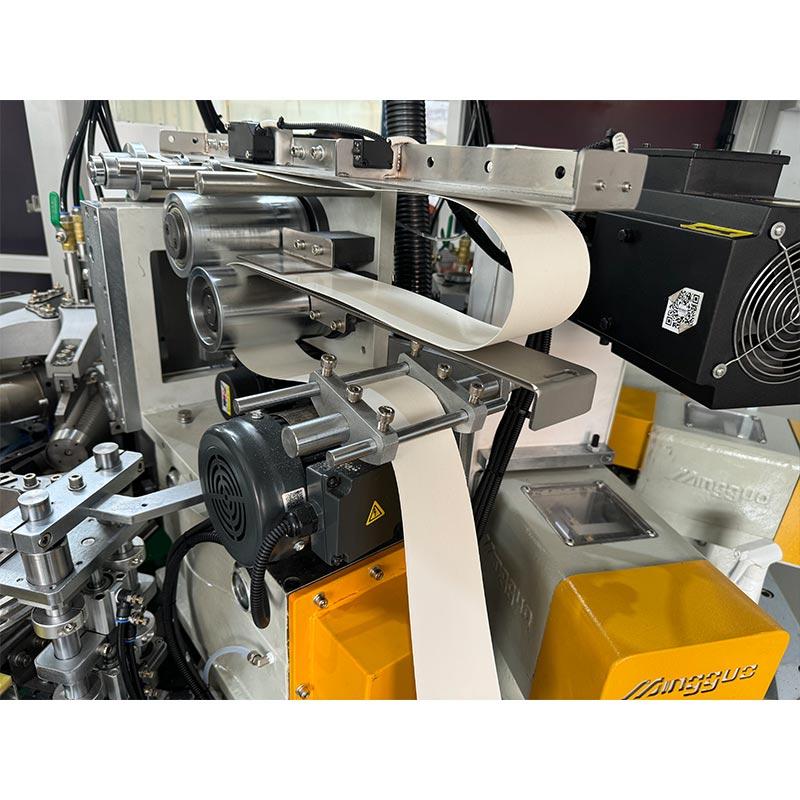

PAPER SERVO FEEDING STATION

CUP SIDE SEAM HEAT PRESS SEALING STATION

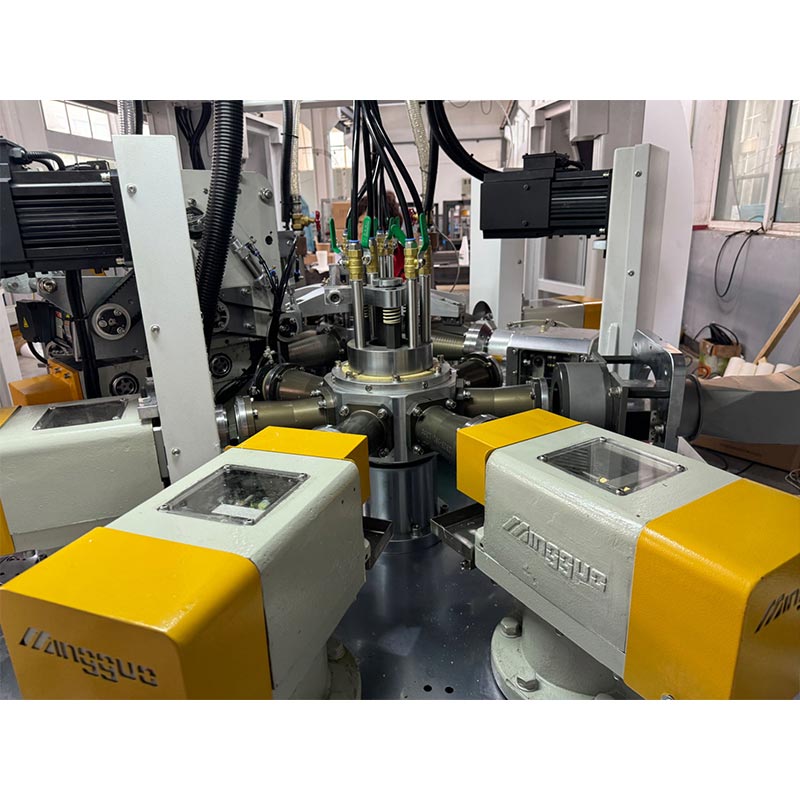

HORIZONTAL MOULD INSTALLATION

BOTTOM PAPER SERVO FEEDING STATION

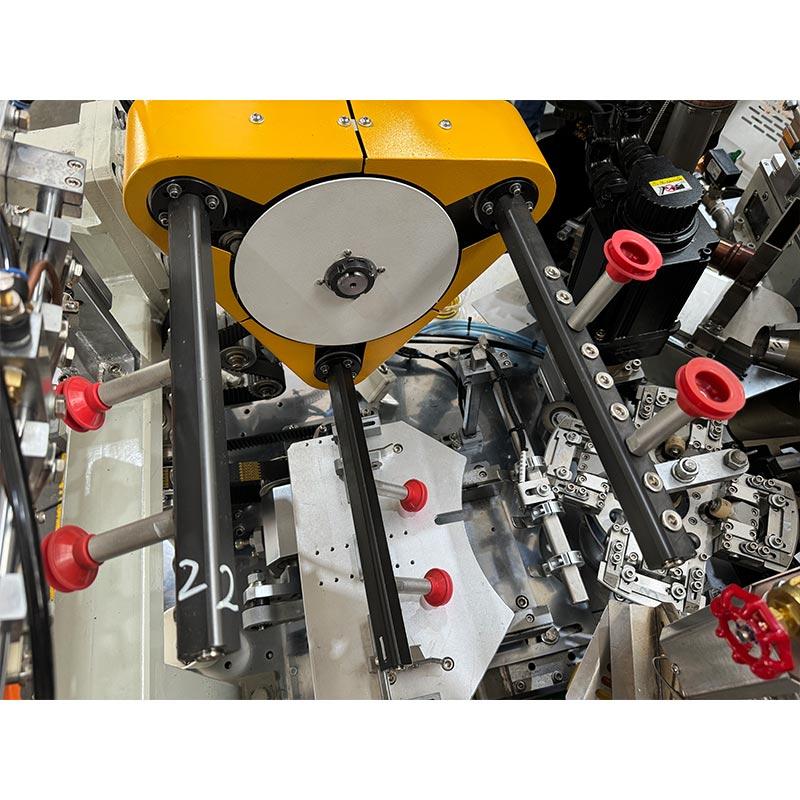

TRIPLE TOP CURLING STATIONS

Maintenance & Warranty Guide

Maintenance

Maintenance of MG-1000 High-speed Horizontal Paper Cup Forming Machine should be carried out in strict compliance with the maintenance guidance.
1. Every component should be cleaned up carefully.
2. For sanitation and cleanliness, a fixed schedule should be maintained to clean and wipe the machine. Greasy dirt should be removed from the paper, die and roller. The machine must be kept from paper scraps, dust, plastic rolling, etc.
3. Glycerol can be used to lubricate the entire machine.

Warranty

1. We offer a one-year warranty for the MG-1000 Automatic High Speed Paper Cup Forming Machine from the shipment date.
2. The warranty does not cover normally worn components.
3. We will not be responsible for any damage caused by misuse, improper handling, negligent maintenance, intentional injury or other damages.

Package & After-sale Service

Package

All paper cup forming machines are packaged by wooden case.

After-sale Service

1. A user guide is included to assist with the machine installation and adjustment and help solve problems that may be encountered.
2. The MG-1000 automatic high speed paper cup forming machine will be adjusted one week prior to delivery to make sure it is in perfect condition.
3. Technicians are available to guide the installation and adjustment on site. This service would be at the buyer's expense, which includes the technician's salary ($100 USD/day), traveling expense, accommodation, consulting fee, etc.
4. Free training is available and ongoing until the operator fully understands the operation and maintenance of our paper cup forming machine. The buyer should cover traveling and accommodation expenses of our technicians.
5. Our company provides wearing parts at no charge for one year.

Warranty Service:

Providing Peace of Mind with a One-Year Warranty

Mingguo stand behind the quality and reliability of our paper cup machines by offering a one-year warranty. This warranty covers the entire machine, giving customers peace of mind and safeguarding their investment. In the unlikely event of any machine malfunctions within the warranty period, our dedicated support team will promptly address the issue and provide necessary repairs or replacements.
