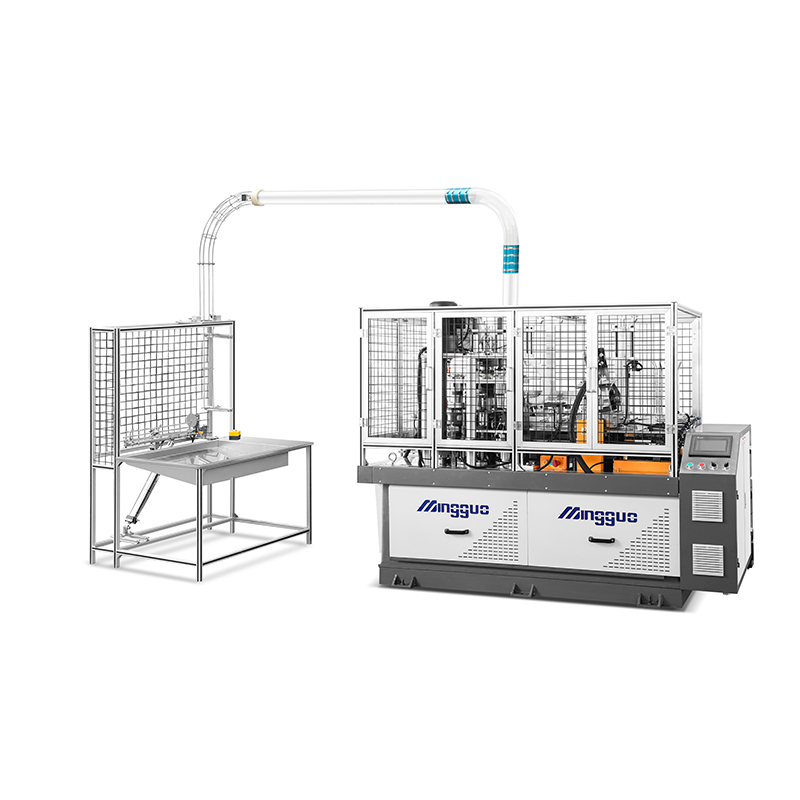

MG-C600 Automatic Paper Cup Maker

Name: MG-C600 Automatic Paper Cup Maker
Brand: Mingguo
SKU: 00016
Rating: 4.1 (58 reviews)

The MG-C600 automatic paper cup maker uses a knurling device with over ten times the pressure of traditional machines. The cups produced are suitable for hot drinks, as they are sealed with a copper heating rod. The machine is capable of producing both single-layer and double-layer PE coated beverage cups.

Specifications:

4-12oz (100-350ml) (mold exchangeable)

Top: 55-90mm

Height: 60-110mm

Bottom: 55-75mm

Inquire Now

Product Applications

MG-C600 automatic paper cup maker is used to produce paper cups. It passes paper coated with PE film on one side or double-sided PE film through a series of process steps to make various models, specifications and capacity paper cup.

Mingguo Paper Cup Maker is mainly used in the paper cup manufacturing industry, including fast food shops, coffee shops, beverage shops, restaurants, supermarkets and other places. It is often used to hold hot drinks, cold drinks, juice, milk tea, ice cream and other food and beverages.

*The finished product of the smart paper cup machine can be customized.

Main Parts

Strengths of Paper Cup Maker

1. Sealed by copper heating rod, cups made by this high quality paper cup maker are only applicable for hot drinks.

2. The applied knurling device is endowed with high pressure, over 10 times as high as that of a traditional knurling machine. What's more, the stable paper cup machine has features like high precision and difficult-to-wear.

3. The retractable knife makes even wrinkles at the bottom of cup, leading to low leakage and long-time use. In addition to this, it's unnecessary to disassemble the entire punching holder for changing molds. Such a design does little harm to the machine and saves lots of replacing time.

4. The high-efficiency paper cup machine uses mechanical arms to collect and flip cups, reducing working time and energy costs.

Product Specifications

Model	MG-C600
Paper Cup Specification	4-12oz
	(100-350ml) (mold exchangeable)
	Top: 55-90mm
	Height: 60-110mm
	Bottom: 55-75mm
Paper Specification	150-350 GSM single/double PE coated paper
Production Capacity	80-90 pcs/min
Voltage	220V/380V 50HZ 3Phases
Average Power	7.5KW
Air Supply Requirement	Air pressure:0.4Mpa Air out-put:0.4cbm/min
Total Weight	2500KG
Dimensions	2520x1350x1750mm

Outstanding Advantages

The whole machine uses 7 senors to detect any malfunction and ensure the output of cups with high quality.

Ultrasonic is applied to seal single or double PE coated paper cups.

The rotating cup we use the Stainless steel material, compared with other materials, has a long service life.

The Leister heater is purchased for sealing cup body and bottom. This heating device raises the heating effect and leads to knurling of good quality.

Compared with the low-speed machine, the bottom folding of the sealing effect is much better.

The installed stretchable knife highly reduces the cutting time and cup bottom wastem,also it is easy to replace.

This servo motor greatly raises the paper feeding efficiency and much more stable.

In order for good quality, all molds are produced by modern CNC processing machines.And the machine occupies a small area and it is easy to operate.

The roll for bottom cup feeding.

Maintenance & Warranty Guide

Maintenance

Maintenance of MG-C600 Paper Cup Maker should be carried out in strict compliance with the maintenance guidance.
1. Every component should be cleaned up carefully.
2. For sanitation and cleanliness, a fixed schedule should be maintained to clean and wipe the horizontal paper cup machine. Greasy dirt should be removed from the paper, die and roller. The machine must be kept from paper scraps, dust, plastic rolling, etc.
3. Glycerol can be used to lubricate the entire machine.

Warranty

1. We offer a one-year warranty for the MG-C600 Paper Cup Machine from the shipment date.
2. The warranty does not cover normally worn components.
3. We will not be responsible for any damage caused by misuse, improper handling, negligent maintenance, intentional injury or other damages.

Package & After-sale Service

Package

All paper cup machine are packaged by wooden case.

After-sale Service

1. A user guide is included to assist with the machine installation and adjustment and help solve problems that may be encountered.
2. The MG-C600 Paper Cup Machine single PE paper cup machine will be adjusted one week prior to delivery to make sure it is in perfect condition.
3. Technicians are available to guide the installation and adjustment on site. This service would be at the buyer's expense, which includes the technician's salary ($100 USD/day), traveling expense, accommodation, consulting fee, etc.
4. Free training is available and ongoing until the operator fully understands the operation and maintenance of our machine. The buyer should cover traveling and accommodation expenses of our technicians.
5. Our company provides wearing parts at no charge for one year.

Warranty Service:

Providing Peace of Mind with a One-Year Warranty

Mingguo stand behind the quality and reliability of our paper cup machines by offering a one-year warranty. This warranty covers the entire machine, giving customers peace of mind and safeguarding their investment. In the unlikely event of any machine malfunctions within the warranty period, our dedicated support team will promptly address the issue and provide necessary repairs or replacements.
