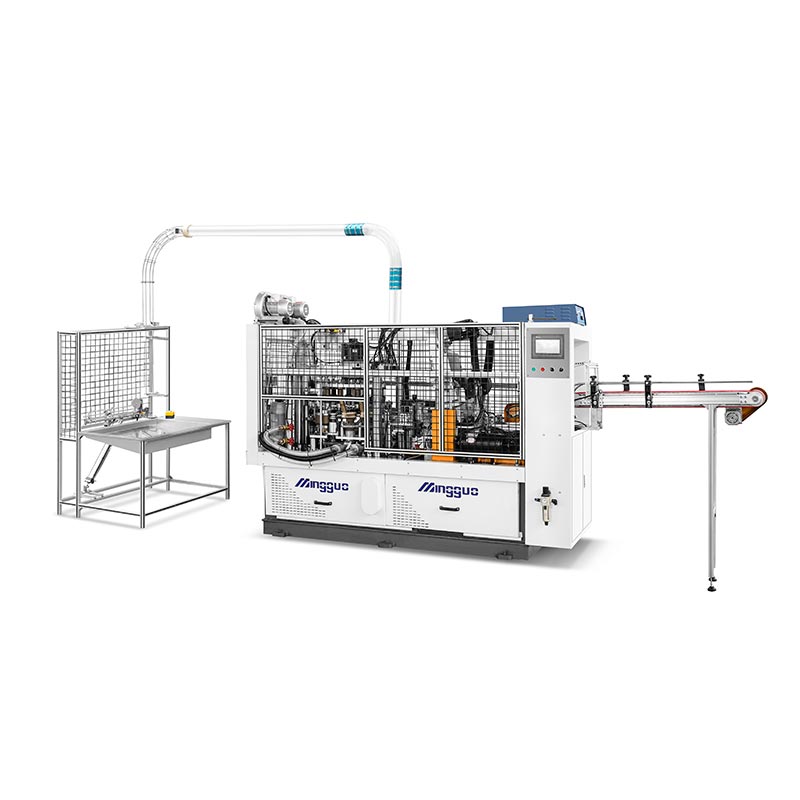

MG-C600M-S High Speed Servo Paper Cup Machine

Name: MG-C600M-S High Speed Servo Paper Cup Machine
Brand: Mingguo
SKU: 00052
Rating: 4.1 (76 reviews)

MG-C600M-S is our new machine developed from MG-C600M , It uses 5 servo motors to control the paper cup forming process with high precision to achieve fast, accurate and stable paper cup forming effect. This machine is suitable for making 2.5-12oz paper cups, and the production speed can reach up to 180pcs/min, stable at 160-170 pcs/min. whats more，The whole machine uses automatic spray lubrication system, reducing the wear of machine parts, support the machine to work for a long time without interruption.

Specifications:

150-180 pcs/min

2-12oz (75-300ml) (mold exchangeable)

Inquire Now

MG-C600M-S High Speed Servo Paper Cup Machine

Application of paper cup machine

The High Speed Servo Paper Cup Machine is designed primarily for the paper cup manufacturing industry. It is ideal for use in fast food establishments, coffee shops, beverage outlets, restaurants, supermarkets, and similar venues. This machine is commonly used for producing cups that hold hot and cold drinks, juices, milk tea, ice cream, and other food and beverages.
*The finished product of the smart paper cup making machine can be customized.

Main Parts

1. Precision Control: Employs 5 servo motors for precise control of the paper cup forming process, ensuring fast, accurate, and stable production.

2. Versatility: Suitable for producing paper cups ranging from 2.5 to 12 oz, accommodating various sizes.

3. High-Speed Production: Capable of producing up to 180 cups per minute, with reliable performance consistently between 160-170 cups per minute.

4. Enhanced Durability: Incorporates an automatic spray lubrication system that minimizes part wear, extending machine life and supporting continuous, reliable operation.

Product Specifications

Paper Cup Specification	2-12oz (75-300ml) (mold exchangeable) Top: 55-90mm Height: 50-100mm Bottom: 55-75mm
Paper Specification	150-350 GSM single/double PE coated paper
Production Capacity	150-180pcs/min
Power Source	380V 50HZ 3Phases
Average Power	17KW
Air Supply Requirement	Air pressure:0.4Mpa Air out-put:0.6cbm/min
Total Weight	2400KG
Package Size	(LWH): 235012501500mm

Outstanding Advantages

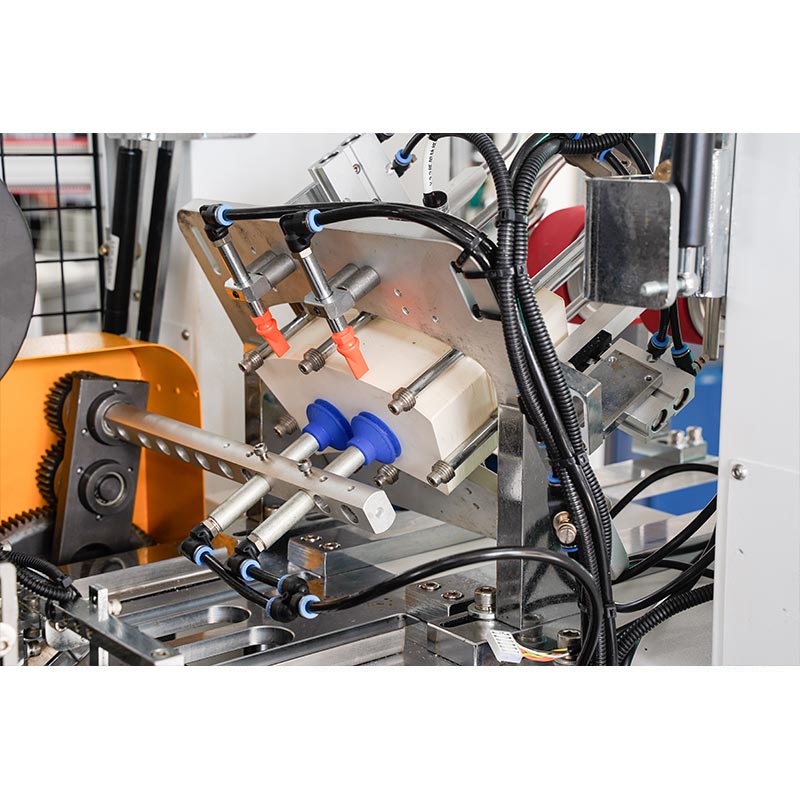

Rotory suction paper

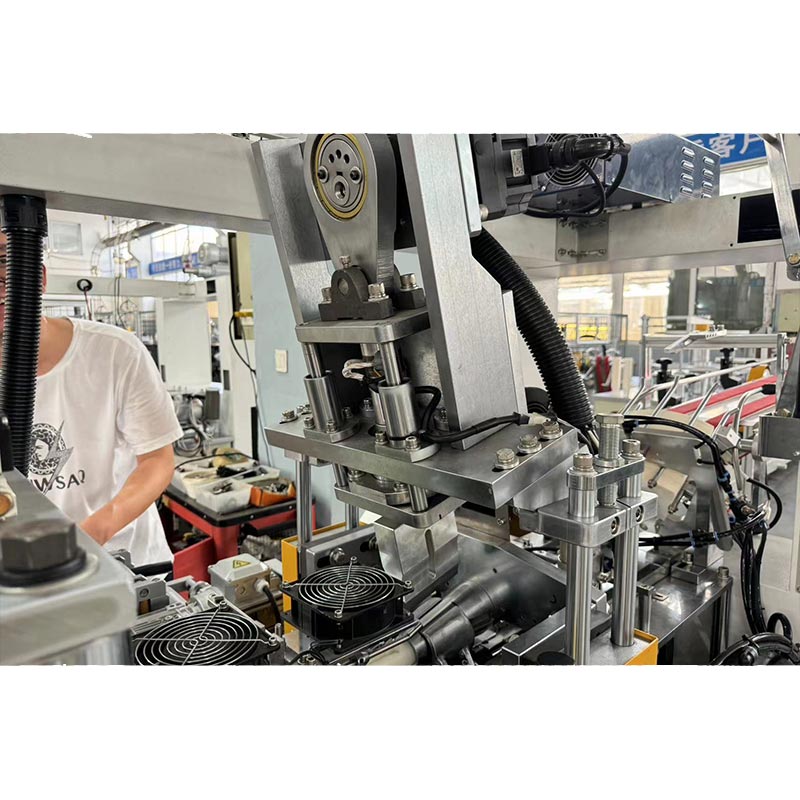

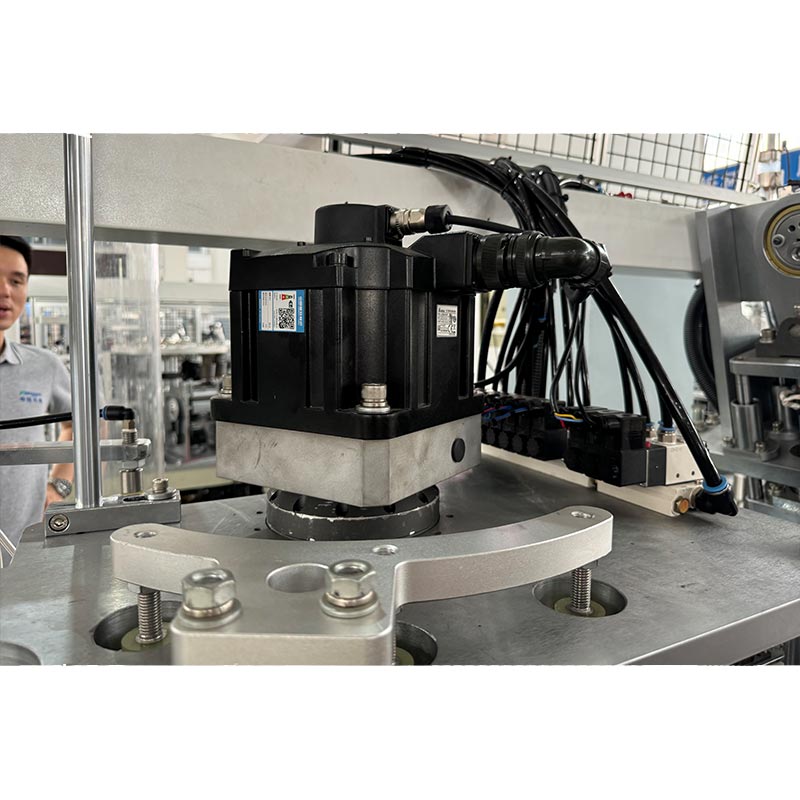

Ultrasonic with servo moter

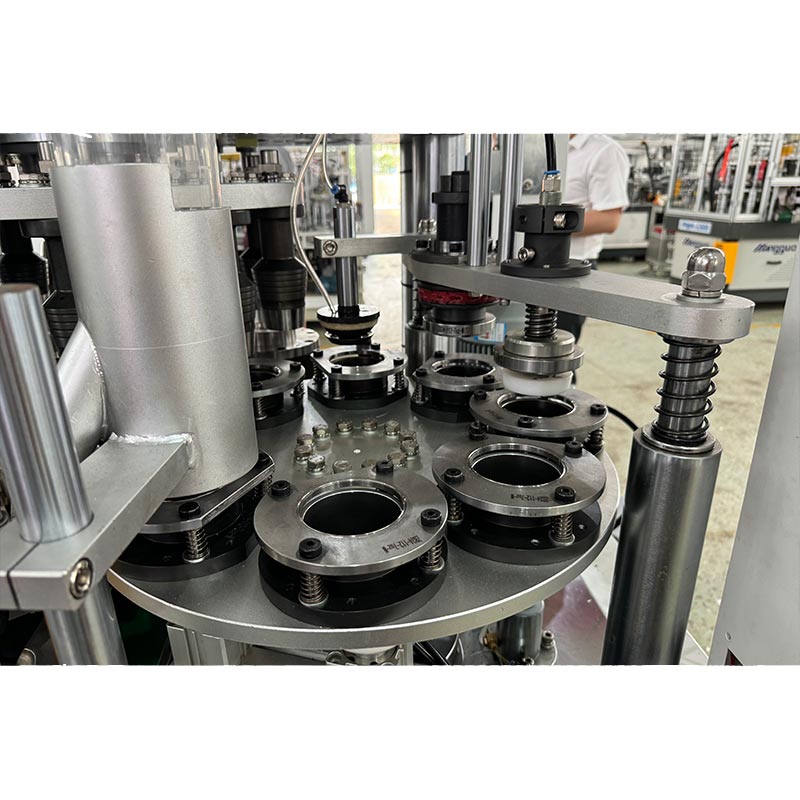

Main turnplate with servo moter

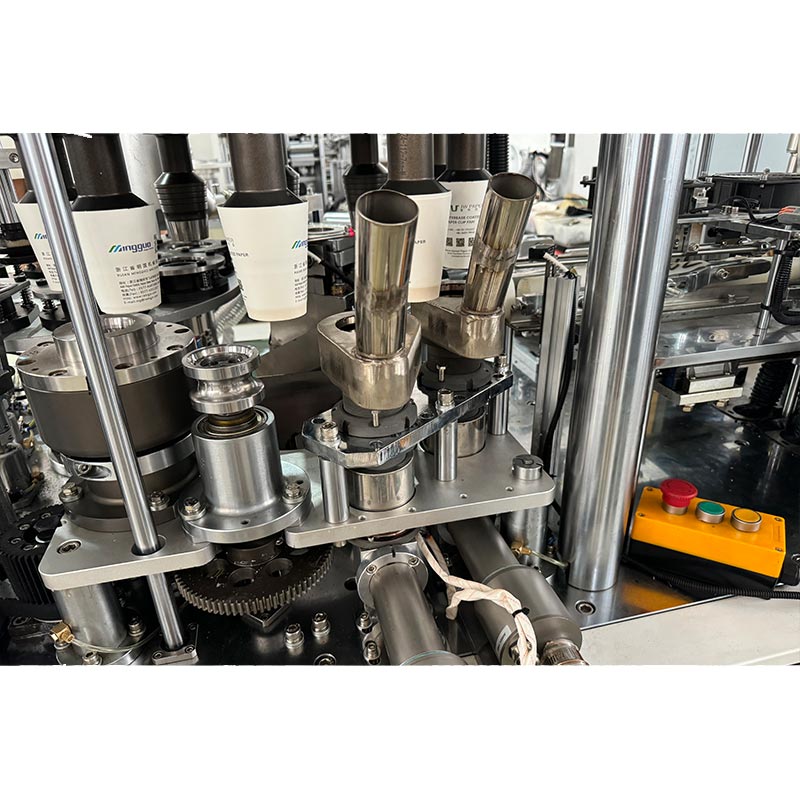

Bottom hot air heating

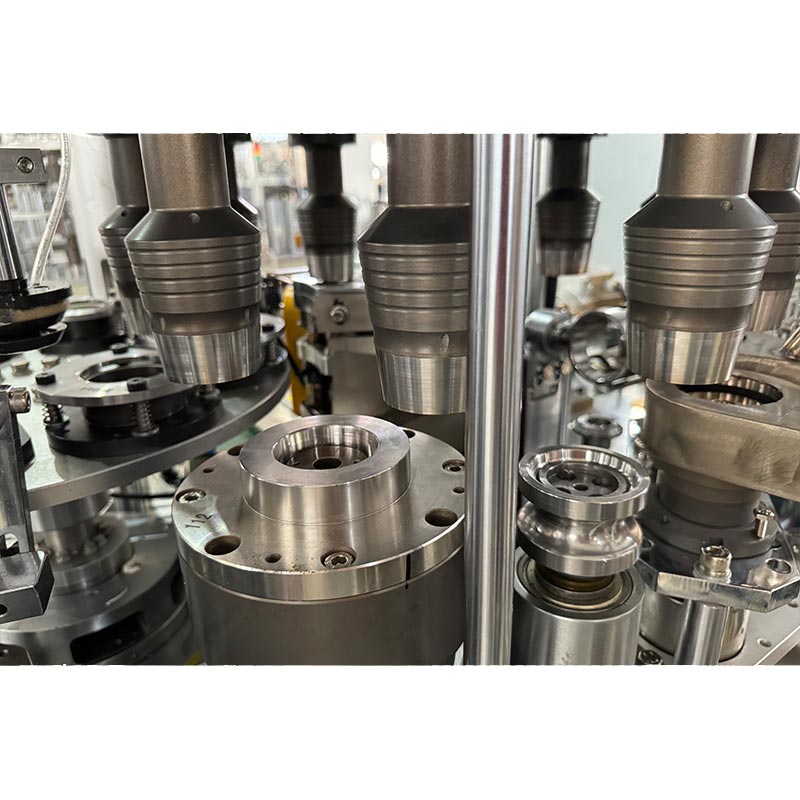

Bottom folding and knurling device

Keep the station for camera detection

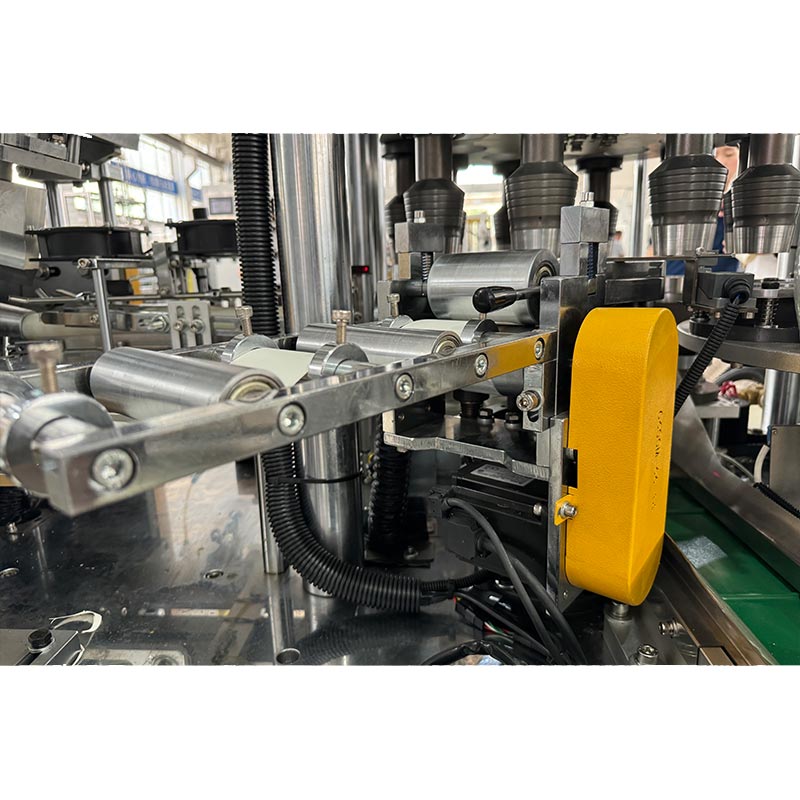

Servo paper cup feeding device

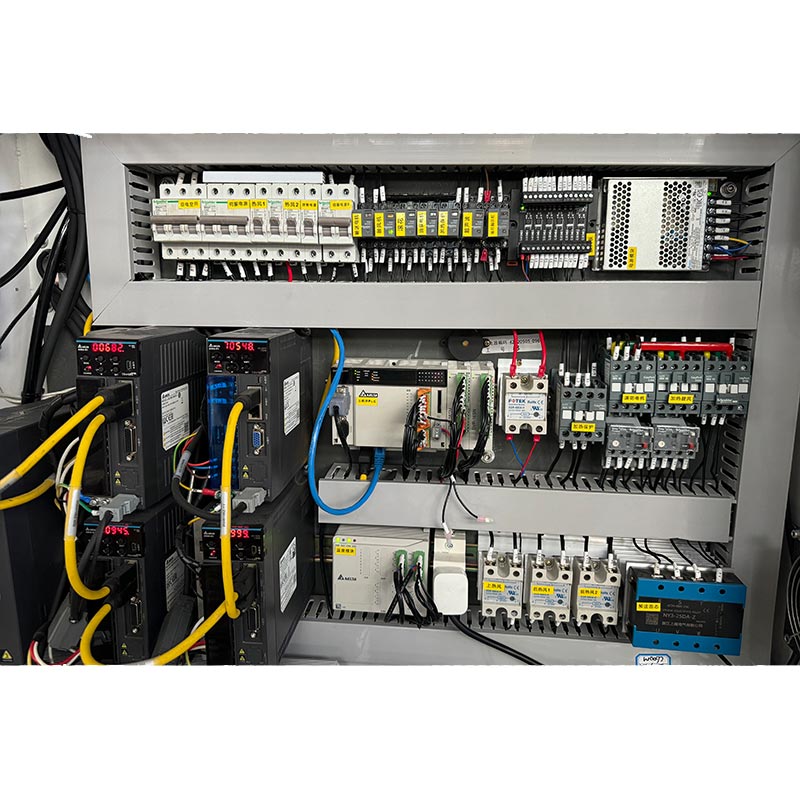

Electrical box

Maintenance & Warranty Guide

Maintenance

Maintenance of MG-C600M-S High Speed Servo Paper Cup Machine should be carried out in strict compliance with the maintenance guidance.
1. Every component should be cleaned up carefully.
2. For sanitation and cleanliness, a fixed schedule should be maintained to clean and wipe the machine. Greasy dirt should be removed from the paper, die and roller. The machine must be kept from paper scraps, dust, plastic rolling, etc.
3. Glycerol can be used to lubricate the entire machine.

Warranty

1. We offer a one-year warranty for the MG-C600M-S High Speed Servo Paper Cup Machine from the shipment date.
2. The warranty does not cover normally worn components.
3. We will not be responsible for any damage caused by misuse, improper handling, negligent maintenance, intentional injury or other damages.

Package & After-sale Service

Package

All paper cup forming machines are packaged by wooden case.

After-sale Service

1. A user guide is included to assist with the machine installation and adjustment and help solve problems that may be encountered.
2. The MG-C600M-S High Speed Servo Paper Cup Machine will be adjusted one week prior to delivery to make sure it is in perfect condition.
3. Technicians are available to guide the installation and adjustment on site. This service would be at the buyer's expense, which includes the technician's salary ($100 USD/day), traveling expense, accommodation, consulting fee, etc.
4. Free training is available and ongoing until the operator fully understands the operation and maintenance of our paper cup forming machine. The buyer should cover traveling and accommodation expenses of our technicians.
5. Our company provides wearing parts at no charge for one year.

Warranty Service:

Providing Peace of Mind with a One-Year Warranty

Mingguo stand behind the quality and reliability of our paper cup machines by offering a one-year warranty. This warranty covers the entire machine, giving customers peace of mind and safeguarding their investment. In the unlikely event of any machine malfunctions within the warranty period, our dedicated support team will promptly address the issue and provide necessary repairs or replacements.
