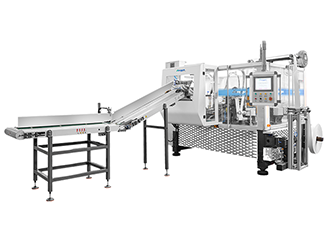

Single Or Three Phase Automatic Paper Cup Machine

Name: Single Or Three Phase Automatic Paper Cup Machine
Brand: Mingguo
SKU: 00045
Rating: 4.1 (73 reviews)

The Single or Three Phase Automatic Paper Cup Machine is a versatile and efficient piece of equipment designed for the automated production of paper cups. It can handle various cup sizes, ranging from 4 to 16 ounces, providing flexibility to cater to different customer preferences. Additionally, it is compatible with single or double PE coated paper with a GSM range of 150-350 g/m2, allowing for the production of sturdy and reliable paper cups.

Specifications:

(100-450ml) (mold exchangeable)

Top: 55-90mm

Height: 60-135mm

Bottom: 55-75mm

Inquire Now

Video

The Single Or Three Phase Automatic Paper Cup Machine is a fully automated equipment designed primarily for the production of paper cups. This Smart Line Paper Cup Forming Machine is suitable for 220V/380V 50HZ three-phase voltage and can operate stably. Making the cups an excellent container for hot beverages such as coffee, tea, or other drinks.

The 3 Phase Paper Cup Making Machine has the capability to produce cups of various sizes, ranging from 4 to 16 ounces, providing a comfortable and convenient drinking experience to consumers. By utilizing this machine, you can produce cups that meet your specific needs and requirements.

*The finished product of the smart paper cup forming machine can be customized.

Main Parts

1. This Single or Three Phase Automatic Paper Cup Machine is equivalent to a piece of equipment that integrates all cup making procedures, including paper supply, sealing, cup bottom supply, heating, embossing, cup edge curling, unloading, testing and counting. High-speed paper cup forming machine is ideal for manufacturing paper cups with a height of 60-135mm.

2. In terms of PLC control, by using photoelectric sensors and servo-controlled feeding devices, the Labor-Saving Automatic Paper Cup Machine ensures high-speed and stable operation and achieves significant reduction in labor costs. Additionally, this automated paper cup forming machine automatically shuts down when any fault is detected.

3. With the assistance of a CCD image detection system (optional), the Intelligent Control Paper Cup Machine can detect and sort out damaged, stained or defective cups. This effective system eliminates the need for manual intervention and reduces secondary contamination of products.

4. Single PE Coated Paper Cup Making Machine also applies many well-designed technologies and devices: spray lubrication is mainly used to reduce the wear of parts; imported Lister heaters are used for cup body and bottom sealing; silicone oil flow is controlled by solenoid valves Precise control. This high-volume paper cup forming machine includes two forming steps: rotary crimping and heat forming. In this way, it produces paper cups with high strength and uniform size.

5. The Single or Three Phase Automatic Paper Cup Machine is engineered to meet the highest quality standards, ensuring the production of cups that are durable, leak-proof, and suitable for hot and cold beverages alike. Its robust construction and smart design minimize downtime and maintenance needs, resulting in uninterrupted production and reduced operating costs.

Product Specifications

Model	MG-G800
Paper Cups	4-16oz
Specifications	(100-450ml) (mold exchangeable)
	Top: 55-90mm
	Height: 60-135mm
	Bottom: 55-75mm
Paper Specification	150-350 GSM single/double PE coated paper
Production Capacity	120-150 pcs/min
Voltage	220V/380V 50HZ 3Phases
Average Power	12KW
Air Supply Requirement	Air pressure:0.5-0.8Mpa Air out-put:0.4cbm/min
Total Weight	3000KG
Dimensions	2800x1350x1900mm

Outstanding Advantages

The automatic paper fan input conveynor,Saves a lot of labor costs and shortens the number of paper placements.

The sheet paper will be sucked down and pushed forward, and the two sides of the paper are preheated by the Leister heater, so that the side seam of the cup sleeve is bonded better under the action of ultrasonic waves during the high-speed operation of the machine.

The cup sleeve pressing device adopts a reversible structure, which is convenient to clean the abnormal cup sleeve in time when the machine fails.The device is equipped with cooling fans, which makes the cup sleeve cool down immediately after ultrasonic high-temperature bonding.

The cup sleeve and the bottom of the cup are heated by two Switzerland Leister heaters, the heating effect is well, and the coating on the bottom of the cup is more fully softened.

Rotary bottom curling device pre-folds the end of the cup sleeve inwards to prepare for sealing with the paper cup bottom. The rotary curling makes the bottom curling more uniform,more firmly bonded and more beautiful. If the paper cup with double PE coated, we pre-install the bottom silicone oil lubrication device to make the bottom curling easier.

The machine adopts twice curling , Compared with once curling, twice curling is more suitable on high speed machine which makes the cup curling more compact and better-looking.

After the twice hot air gun heating and inward pre-folding, the paper cup bottom will be completely sealed well by the embossing and sealing device. The device is equipped with an automatic lubrication system, which absorbs the heat generated by the rotating friction of the knurling wheel, making the knurling run more smoothly. If produce paper cups with double PE coated, we pre-install anti-drop cups and water circulation cooling devices.But the industrial chiller needs to be purchased additionally.

Before the top curling ,the cup top will be dipped by the food grade silicone oil to make the curling top pressure well-distributed to avoid the burst, which will improve the paper cup aesthetic degree.Excess silicone oil can be recycled ，also save silicone oil costs.

Direct paper cup bottom punching device controlled by servo motor which is more accurate and paper-saving. Adopt stretch knife, long service life

Camero detection system has the function of screening and eliminating bad cups (stains, cracks and wrinkles inside the cup), which greatly saves the cost of manual screening

Box structure, filling oil by spray lubrication system, reduce damage, cooling effective， machine can run fast.Due to box structure and insulate bottom&top,per year oil change 2 times (circulate use 6 months).It makes machine easy maintenance&cleaning, also save oil costs. Other factories have to change oil per month for same affect.Due to theirunclosed structure, paper dust&waste will fall down to bottom easily.

The temperature is controlled by PLC, and the user can set he corresponding target temperature according to the weight of the paper, single/double PE.

Maintenance & Warranty Guide

Maintenance

Maintenance of Single or Three Phase Automatic Paper Cup Machine should be carried out in strict compliance with the maintenance guidance.
1. Every component should be cleaned up carefully.
2. For sanitation and cleanliness, a fixed schedule should be maintained to clean and wipe the machine. Greasy dirt should be removed from the paper, die and roller. The machine must be kept from paper scraps, dust, plastic rolling, etc.
3. Glycerol can be used to lubricate the entire machine.

Warranty

1. We offer a one-year warranty for the Single or Three Phase Automatic Paper Cup Machine from the shipment date.
2. The warranty does not cover normally worn components.
3. We will not be responsible for any damage caused by misuse, improper handling, negligent maintenance, intentional injury or other damages.

Package & After-sale Service

Package

All paper cup forming machines are packaged by wooden case.

After-sale Service

1. A user guide is included to assist with the machine installation and adjustment and help solve problems that may be encountered.
2. The Single or Three Phase Automatic Paper Cup Machine for drinking paper cups will be adjusted one week prior to delivery to make sure it is in perfect condition.
3. Technicians are available to guide the installation and adjustment on site. This service would be at the buyer's expense, which includes the technician's salary ($100 USD/day), traveling expense, accommodation, consulting fee, etc.
4. Free training is available and ongoing until the operator fully understands the operation and maintenance of our high speed paper cup forming machine. The buyer should cover traveling and accommodation expenses of our technicians.
5. Our company provides wearing parts at no charge for one year.

Warranty Service:

Providing Peace of Mind with a One-Year Warranty

Mingguo stand behind the quality and reliability of our paper cup machines by offering a one-year warranty. This warranty covers the entire machine, giving customers peace of mind and safeguarding their investment. In the unlikely event of any machine malfunctions within the warranty period, our dedicated support team will promptly address the issue and provide necessary repairs or replacements.
