MG HC600 Paper Cup With Handle Machine

Name: MG HC600 Paper Cup With Handle Machine
Brand: Mingguo
SKU: 00020
Rating: 4.1 (60 reviews)

Specifications:

(100-450ml)(mold exchangeable)

Top: 55-90mm

Height: 60-135mm

Bottom: 55-75mm

Inquire Now

Product Applications

Mingguo produces classic catering paper cups. It passes paper coated with PE film on one side or double-sided PE film through a series of process steps to make various models, specifications and Capacity paper cup. Paper Cup With Handle can carry hot drinks, cold drinks and other beverages, and are used in coffee shops, tea shops and other scenes.

The Paper Cup With Handle machine can provide high-quality, high-efficiency production and meet consumers' needs for convenience and environmental protection.

*The finished product of the Paper Cup With Handle Machine can be customized

Main Parts

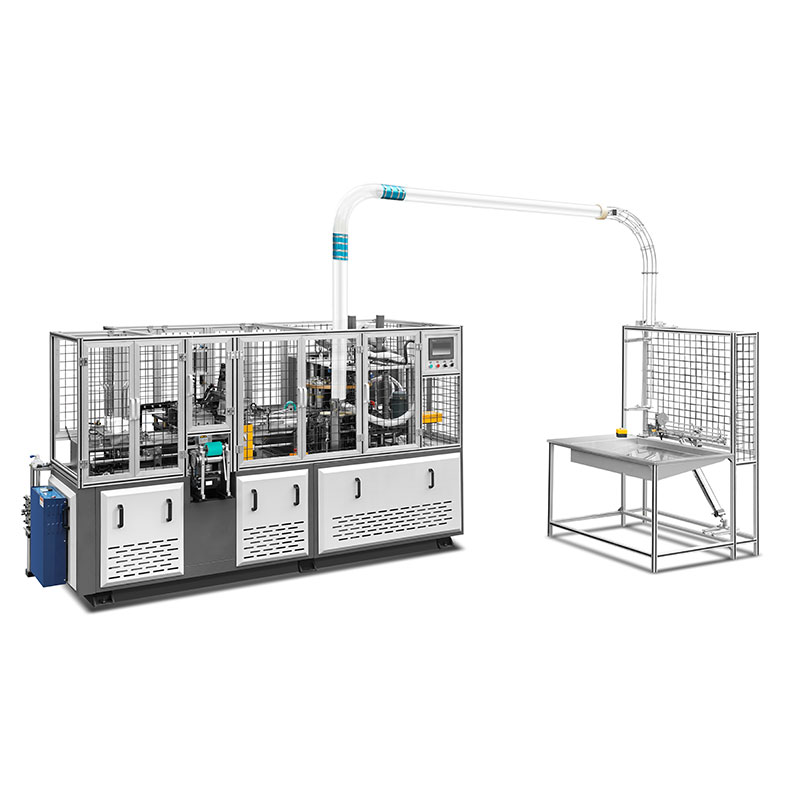

MG HC600 Paper Cup With Handle Machine a newly developed from three turn-plates old type cup machine, achieves a manufacturing speed of 60-80pcs/min.
This piece of paper converting equipment provides a multi-station design and is able to make single and double PE coated beverage cups, ice cream cups, coffee cups, bubble tea cups and more.
In addition to that, this integrated automatic paper cup With handle machine combines all these processing procedures together: paper feeding, sealing,bottom cutting, lubricating, heating, knurling, curling and collecting.
Outfitted with a handle applicator, this product completes the handle cutting and sealing automatically. It will save you a lot on time and manpower.

Product Specifications

TECHNICAL SPECIFICATION

Model	MG-HC600
Paper Cup Specification	4-16oz
	(100-450ml)(mold exchangeable)
	T: 55-90mm
	H: 60-135mm
	B: 55-70mm
Paper Specification	150-350 GSM single/double PE coated paper
Production Capacity	70-90pcs/min（for handle max is 80pcs/min)
Voltage	220V/380V 50HZ 3Phases
Average Power	7KW
Air Supply Requirement	Air pressure:0.5-0.8Mpa Air out-put:0.4cbm/min
Total Weight	2550KG
Dimensions	2600x1350x1850mm

Outstanding Advantages

This machine adopts gear transmission instead of chain transmission in order for high stability.

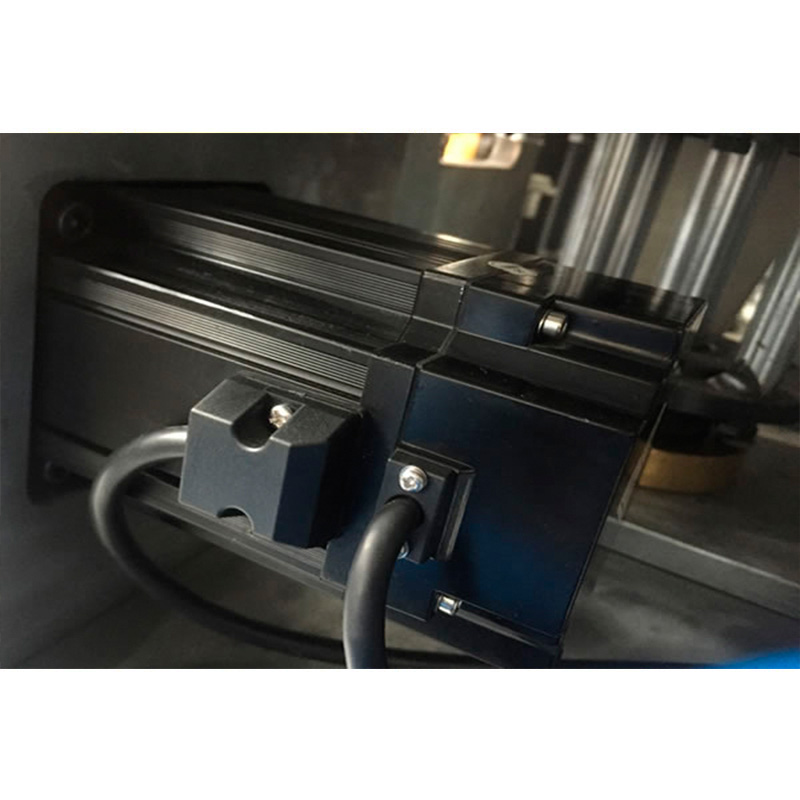

Servo motor is applied for paper feeding.

Four shafts are used for paper feeding.

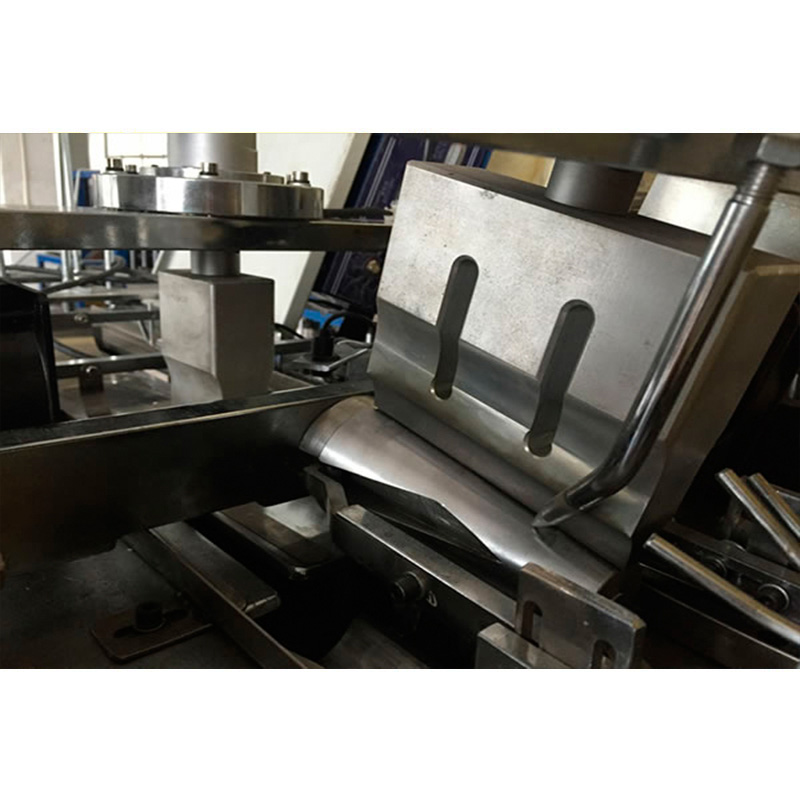

Two ultrasonic devices conduct the sealing work between handle, bottom and cup body.

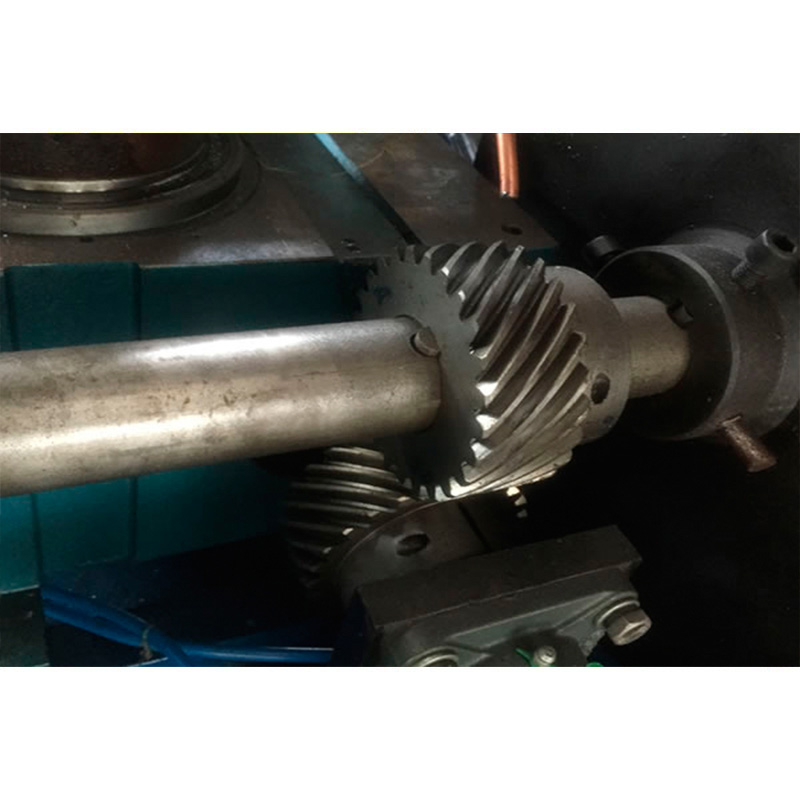

Gear system

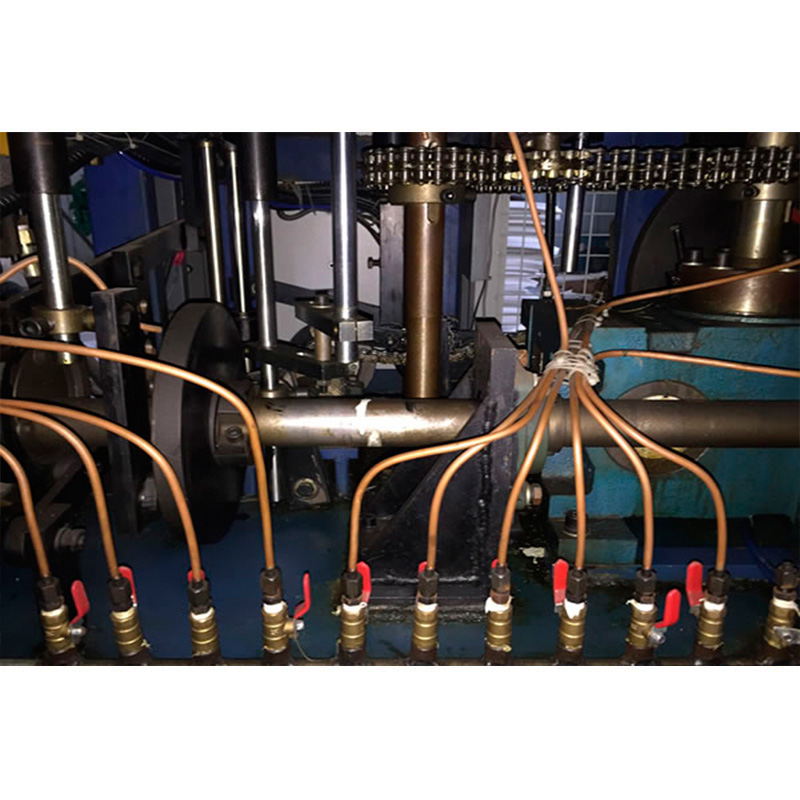

transmission instead of chain transmission in order for high stability. The lubricating system contributes to a long service life. The lubricating system contributes to a long service life.

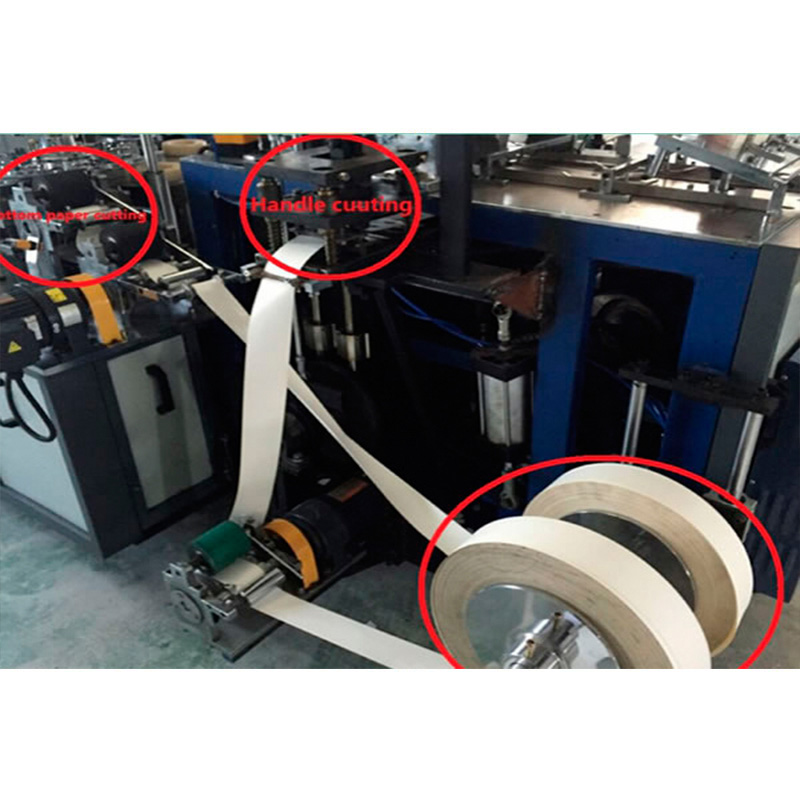

Handles re cut fast and quickly by this device.

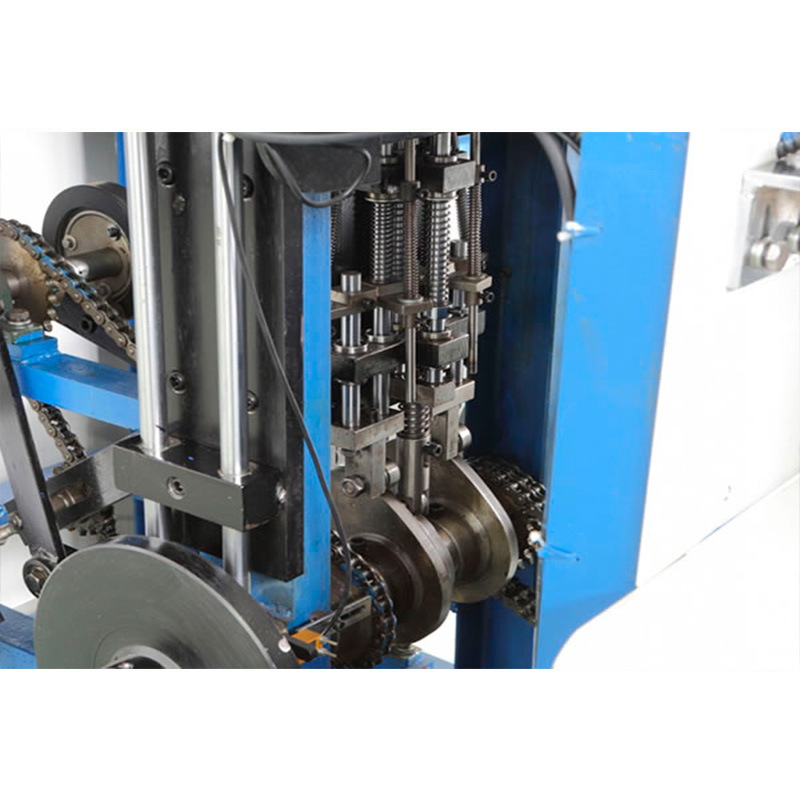

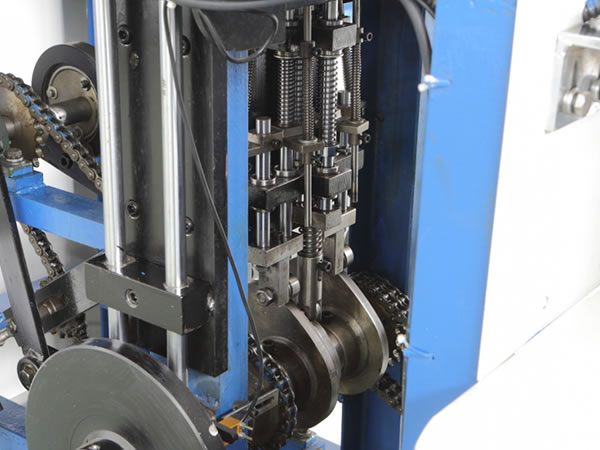

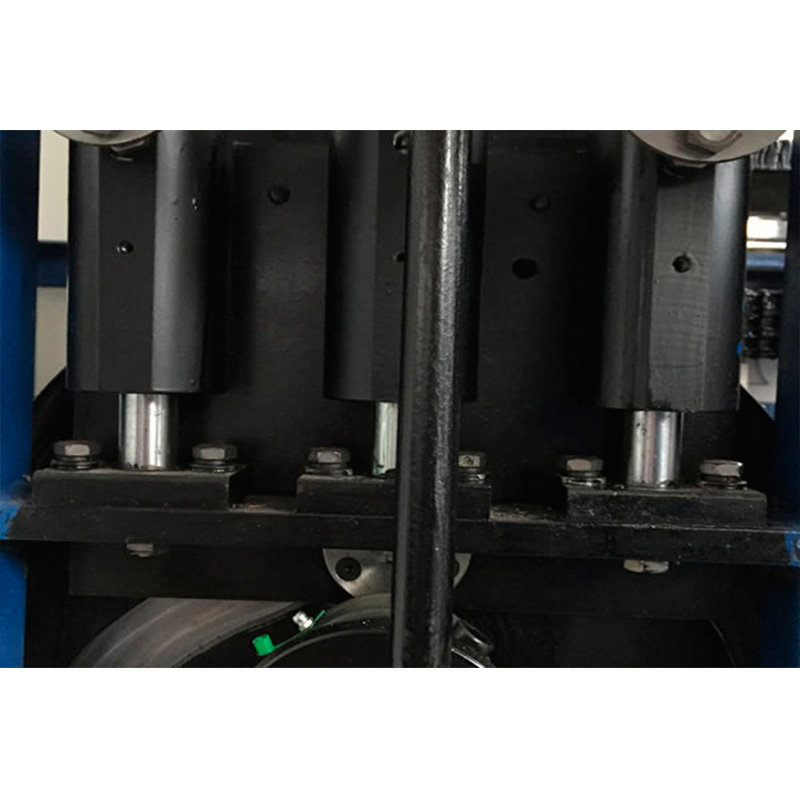

Three shafts and three springs are utilized to guarantee stable machine operation.

This bottom lifting instrument is time-cutting and labor-saving.

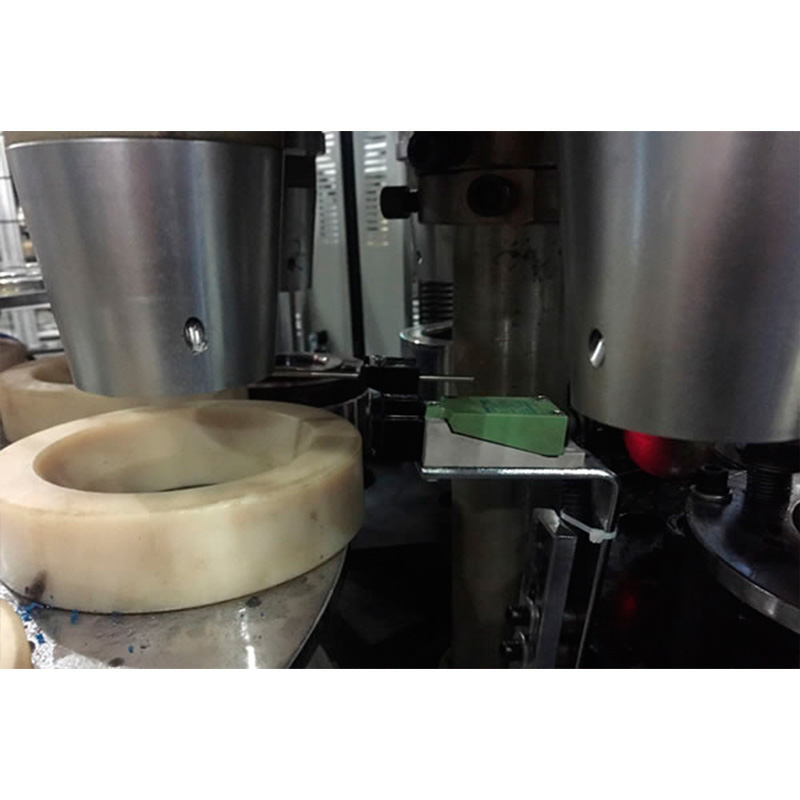

The contactless switch and photoelectric sensor provides normal running of this cup making equipment. Abnormal or malfunction will be immediately tested, avoiding damages to the machine.

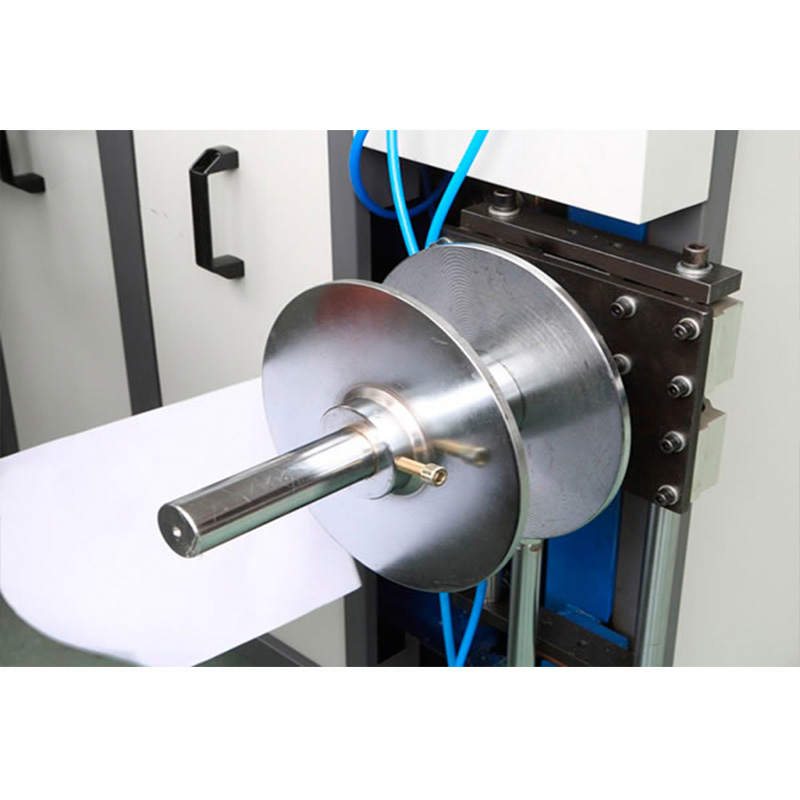

Four shafts are used for paper feeding.

Maintenance & Warranty Guide

Maintenance

Maintenance of MG HC600 Paper Cup With Handle Machine should be carried out in strict compliance with the maintenance guidance.
1. Every component should be cleaned up carefully.
2. For sanitation and cleanliness, a fixed schedule should be maintained to clean and wipe the machine. Greasy dirt should be removed from the paper, die and roller. The paper cup with handle machine must be kept from paper scraps, dust, plastic rolling, etc.
3. Glycerol can be used to lubricate the entire machine.

Warranty

1. We offer a one-year warranty for the MG HC600 Paper Cup With Handle Machine from the shipment date.
2. The warranty does not cover normally worn components.
3. We will not be responsible for any damage caused by misuse, improper handling, negligent maintenance, intentional injury or other damages.

Package & After-sale Service

Package

All paper cup with handle machines are packaged by wooden case.

After-sale Service

1. A user guide is included to assist with the machine installation and adjustment and help solve problems that may be encountered.
2. The MG HC600 Paper Cup With Handle Machine will be adjusted one week prior to delivery to make sure it is in perfect condition.
3. Technicians are available to guide the installation and adjustment on site. This service would be at the buyer's expense, which includes the technician's salary ($100 USD/day), traveling expense, accommodation, consulting fee, etc.
4. Free training is available and ongoing until the operator fully understands the operation and maintenance of our machine. The buyer should cover traveling and accommodation expenses of our technicians.
5. Our company provides wearing parts at no charge for one year.

Warranty Service:

Providing Peace of Mind with a One-Year Warranty

Mingguo stand behind the quality and reliability of our paper cup machines by offering a one-year warranty. This warranty covers the entire machine, giving customers peace of mind and safeguarding their investment. In the unlikely event of any machine malfunctions within the warranty period, our dedicated support team will promptly address the issue and provide necessary repairs or replacements.
